76SB04T | ||
---|---|---|
|
||
|
||
产品描述:

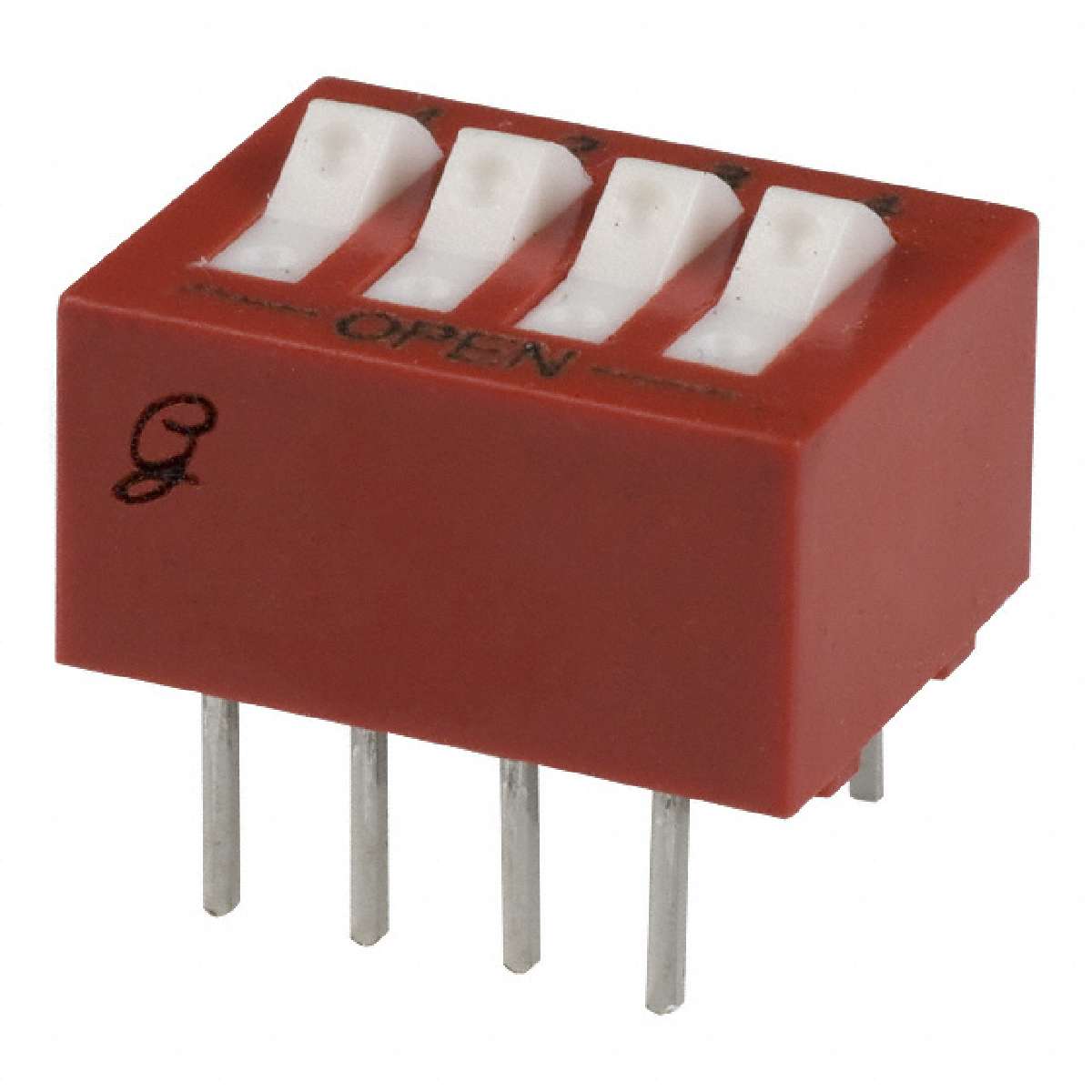

76 Series Raised Rocker SPST 4 Position Through Hole Dip Switch
|
||
标准包装:21 | ||
数据手册: |
Termination Style | PC Pin |
---|---|
Voltage Rating | 30VDC |
Electrical Life | 2,000 Cycles |
Washable | No |
Packaging | Tube |
Circuit | SPST |
Part Status | Active |
Contact Material | Copper Alloy |
Length | 0.480" (12.19mm) |
Number of Positions | 4 |
Family | DIP Switches |
Current Rating | 150mA |
ECCN | EAR99 |
Contact Finish | Gold |
Body Material | Thermoplastic |
Manufacturer | Grayhill Inc. |
Mounting Type | Through Hole |
Height Above Board | 0.315" (8.00mm) |
Actuator Type | Rocker |
Category | Switches |
Actuator Level | Raised |
Mechanical Life | 2,000 Cycles |
Series | 76 |
Operating Temperature | -40°C ~ 85°C |
Pitch | 0.100" (2.54mm), Full |
数据手册: |
---|
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
stock | 3780 | Update On 2025-07-08 |
---|---|---|
Lead-Time | -- | |
SPQ/MOQ | 21/21 | |
Location | -- | |
DateCode | 2447 |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
stock | 1426 | Update On 2022-11-30 |
---|---|---|
Lead-Time | 14Weeks | |
Supplier SPQ/MOQ | 21/1 | |
Location | -- | |
DateCode | 2227 |
