| 76SB06T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

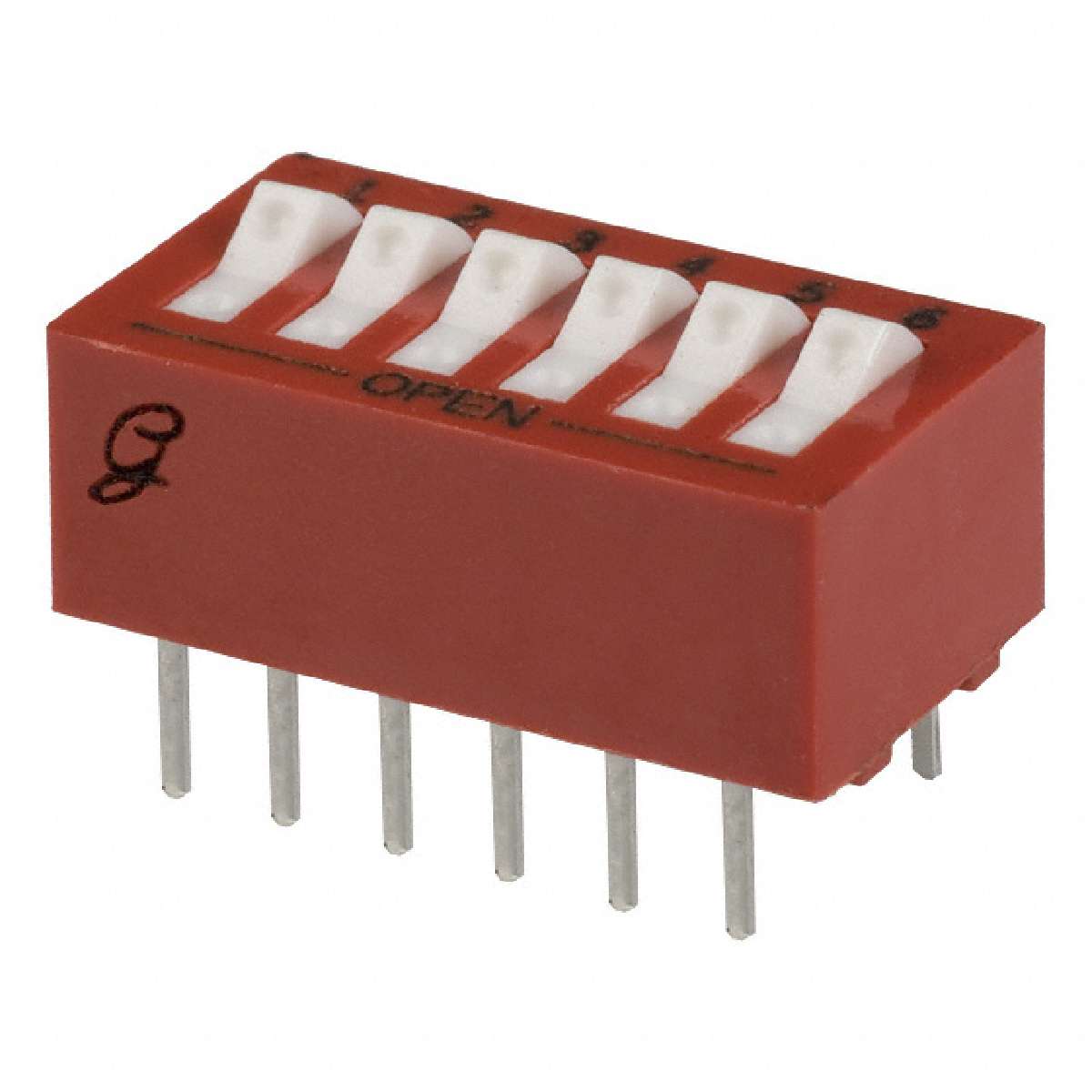

76 Series Raised Rocker SPST 6 Position Through Hole DIP Switch
|
||
| 标准包装：15 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination Style | PC Pin |
|---|---|
| Voltage Rating | 30VDC |
| Electrical Life | 2,000 Cycles |
| Washable | No |
| Packaging | Tube |
| Circuit | SPST |
| Part Status | Active |
| Contact Material | Copper Alloy |
| Length | 0.680" (17.27mm) |
| Number of Positions | 6 |
| Family | DIP Switches |
| Current Rating | 150mA |
| ECCN | EAR99 |
| Contact Finish | Gold |
| Body Material | Thermoplastic |
| Manufacturer | Grayhill Inc. |
| Mounting Type | Through Hole |
| Height Above Board | 0.315" (8.00mm) |
| Actuator Type | Rocker |
| Category | Switches |
| Actuator Level | Raised |
| Mechanical Life | 2,000 Cycles |
| Series | 76 |
| Operating Temperature | -40°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
| 数据手册： |
|---|
