| 76SC04T | ||
|---|---|---|
|
|
||
|
||

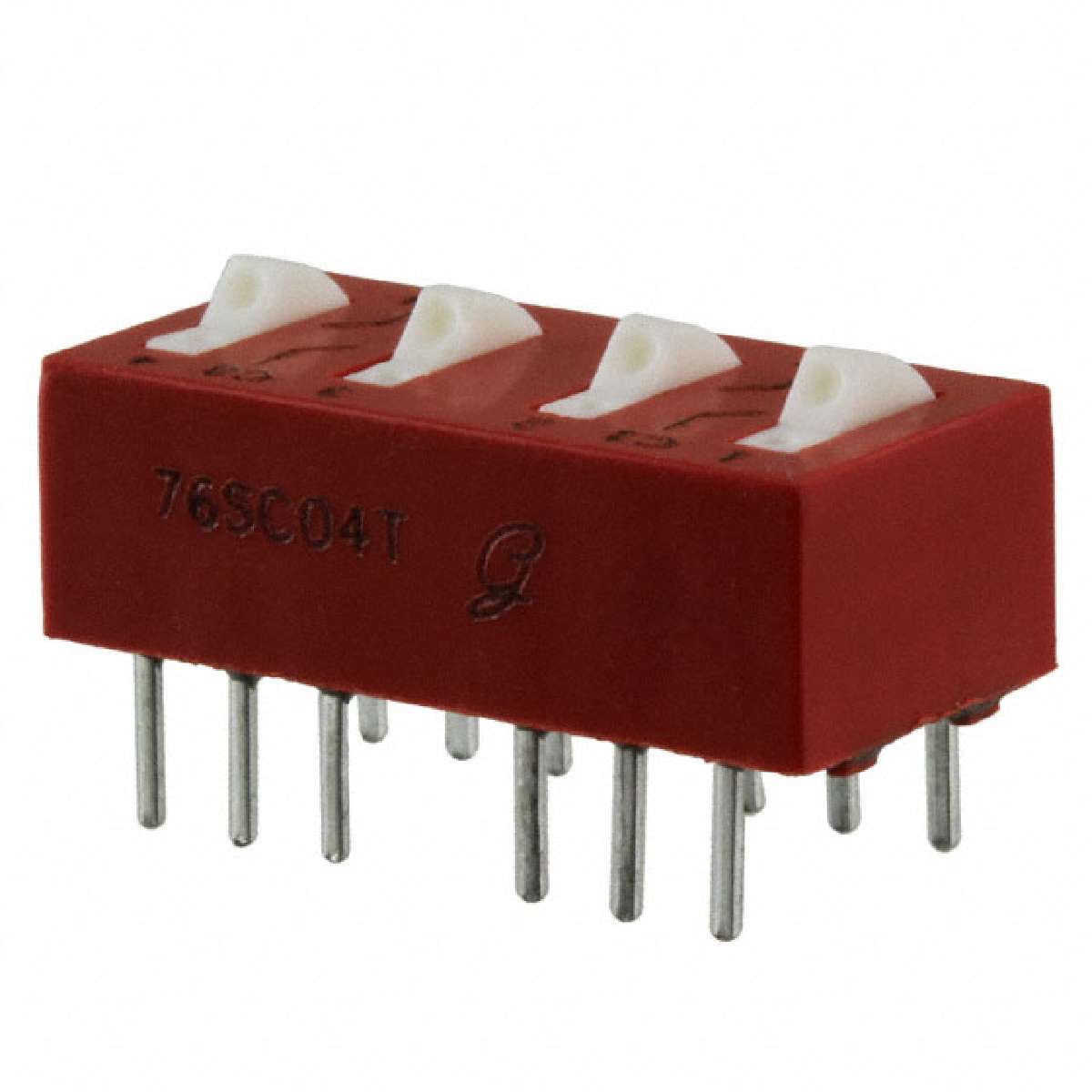

| Product description : SWITCH, DIP, 4 POS, SPDT, RAISED SLIDE;4 Switch positions;Current DC Max:150mA | ||
| SPQ：1 | ||
| Datasheet : |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Switch Type: | DIP |
|---|---|
| Mounting Angle: | Vertical |
| Manufacturer: | Grayhill |
| Series: | Series 76 and 78 |
| Voltage Rating DC: | 30 VDC |
| Factory Pack Quantity: | 13 |
| RoHS: | Details |
| Termination Style: | Solder Pin |
| Contact Material: | Copper Alloy |
| Current Rating: | 150 mA |
| Life: | 2000 Cycles |
| ECCN | EAR99 |
| Packaging: | Tube |
| Actuator: | Raised |
| Mounting: | Through Hole |
| Operating Temperature Range: | - 40 C to + 85 C |
| Contact Form: | SPDT |
| Brand: | Grayhill |
| Number of Positions: | 4 Position |
| Package / Case: | DIP |
| Product Category: | DIP Switches / SIP Switches |
| Contact Plating: | Tin over Nickel |
| Terminal Pitch: | 2.54 mm |
| Datasheet： |
|---|
