SM0320102
SM0320102
  • ACTIVE
  • EAR99

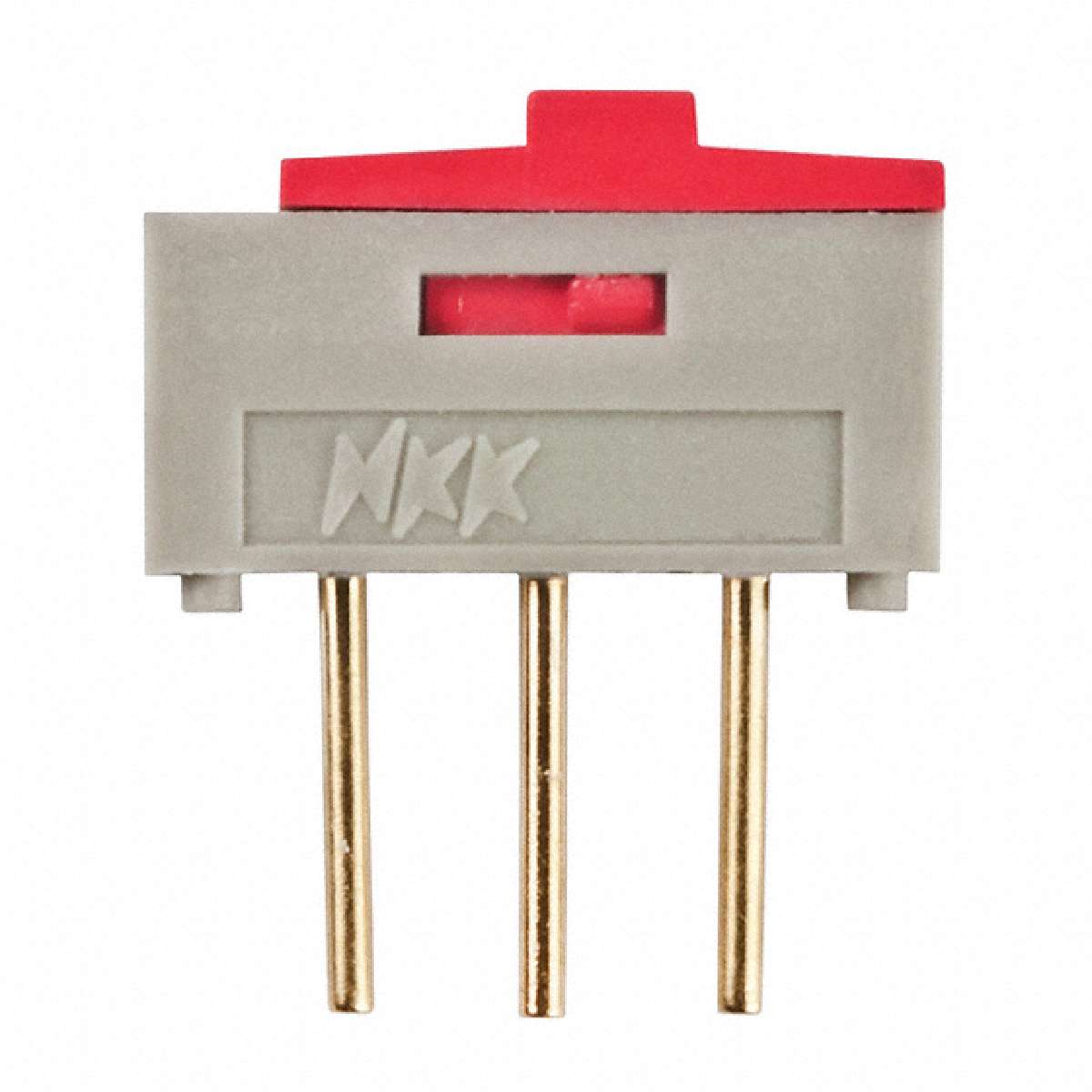

Product description : SM Series Ultra Mini SPDT On-None-On Through Hole Slide Switch
SPQ：100
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews

Switch Function On-On
Termination Style PC Pin
Electrical Life 1,000 Cycles
Mounting Type Through Hole
Actuator Material Polyester, Glass Filled
Actuator Type Standard
Contact Material Brass
Switch Travel 1.60mm
Series SM
RoHS Information SM0320102 Cert of Compliance
Contact Timing Non-Shorting (BBM)
RoHS Lead free / RoHS Compliant
Contact Finish Gold
Voltage Rating - DC 12V
Operating Force 204gf
Packaging Bulk
Circuit SPDT
Actuator Length 1.40mm
Online Catalog SM Series
Mechanical Life 1,000 Cycles
Family Slide Switches
Operating Temperature -40°C ~ 85°C
Current Rating 500mA (DC)
ECCN EAR99
Datasheet：
