| 772-E09-203R011 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

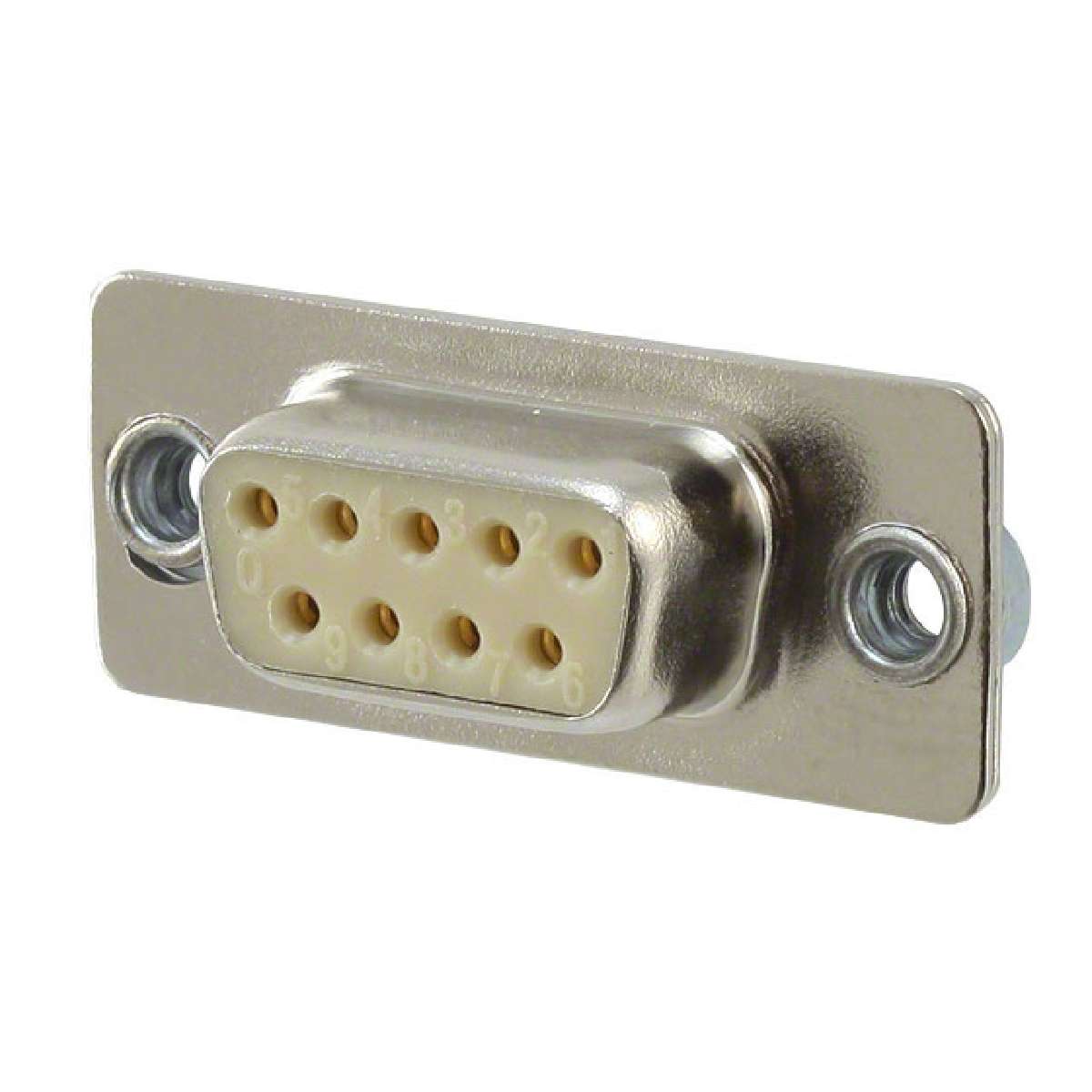

IP67,9 Position FEM SCUP NI W/CLINCH NUT 1D-Sub Standard Connectors
|
||
| 标准包装：45 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Solder Cup |
|---|---|
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 1 (DE, E) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Part Status | Active |
| Manufacturer | Norcomp Inc. |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Number of Positions | 9 |
| Mounting Type | Free Hanging (In-Line); Panel Mount |
| Connector Type | Receptacle, Female Sockets |
| Packaging | Tray |
| Current Rating | 5A |
| Connector Style | D-Sub |
| Contact Finish | Gold |
| Contact Type | Signal |
| Color | White |
| Flange Feature | Board Side (M3) |
| Category | Connectors, Interconnects |
| Series | Seal-D 772-E |
| Family | D-Sub Connectors |
| Operating Temperature | -50°C ~ 100°C |
| Contact Finish Thickness | Flash |
| Number of Rows | 2 |
| ECCN | EAR99 |
