| 773-E15-113R001 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

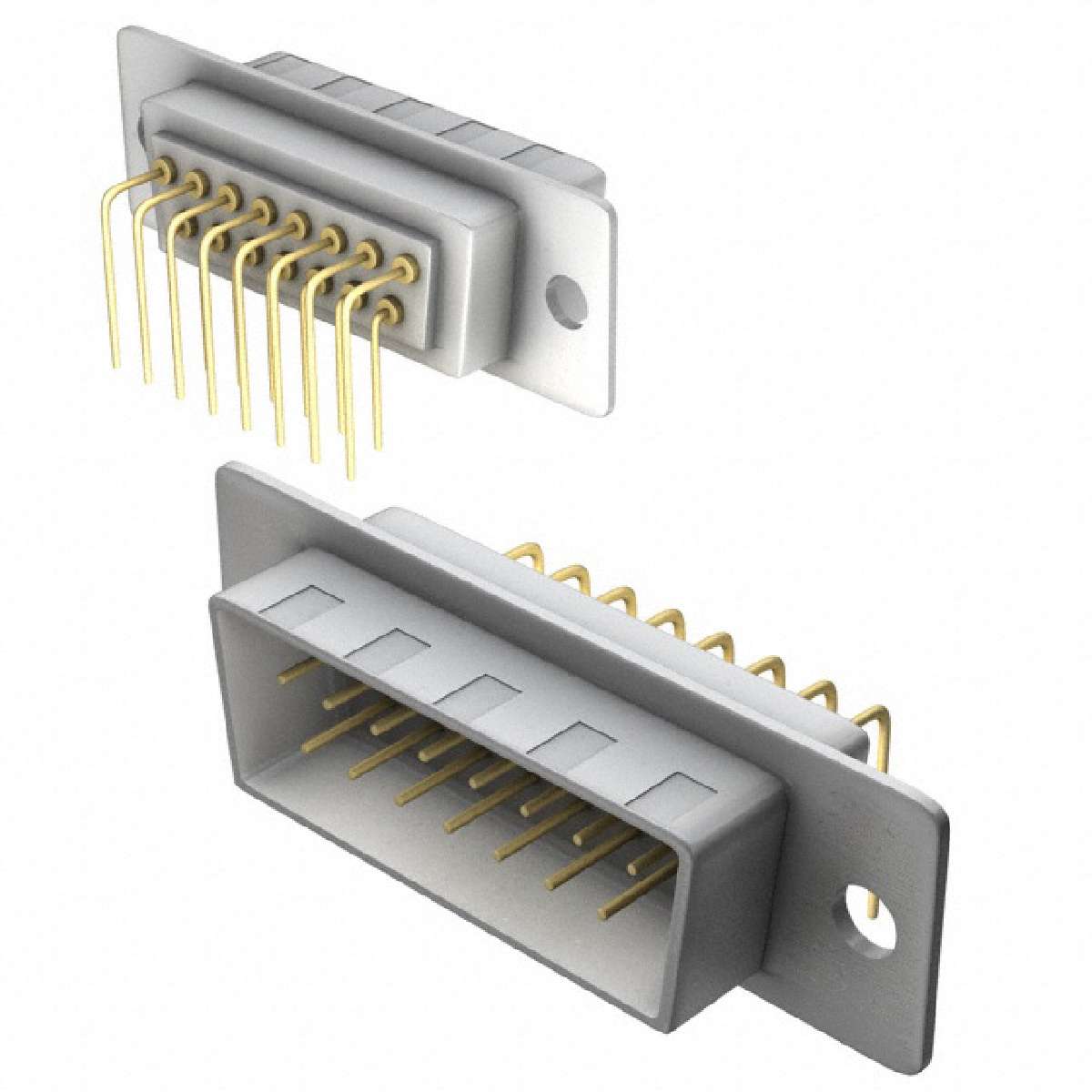

772-E Series 15 position high density Right angle Male D-Sub Connector
|
||
| 标准包装：70 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Solder |
|---|---|
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 2 (DA, A) |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Category | Connectors, Interconnects |
| Series | Seal-D 773-E |
| Family | D-Sub Connectors |
| Operating Temperature | -50°C ~ 100°C |
| Contact Finish Thickness | Flash |
| Number of Rows | 2 |
| ECCN | EAR99 |
| Connector Style | D-Sub |
| Contact Finish | Gold |
| Contact Type | Signal |
| Color | White |
| Part Status | Active |
| Manufacturer | Norcomp Inc. |
| Housing Material | Polyamide (PA6T), Nylon 6T |
| Number of Positions | 15 |
| Mounting Type | Through Hole, Right Angle |
| Connector Type | Plug, Male Pins |
| Packaging | Tray |
| Current Rating | 5A |
