| EMVY100ADA102MJA0G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

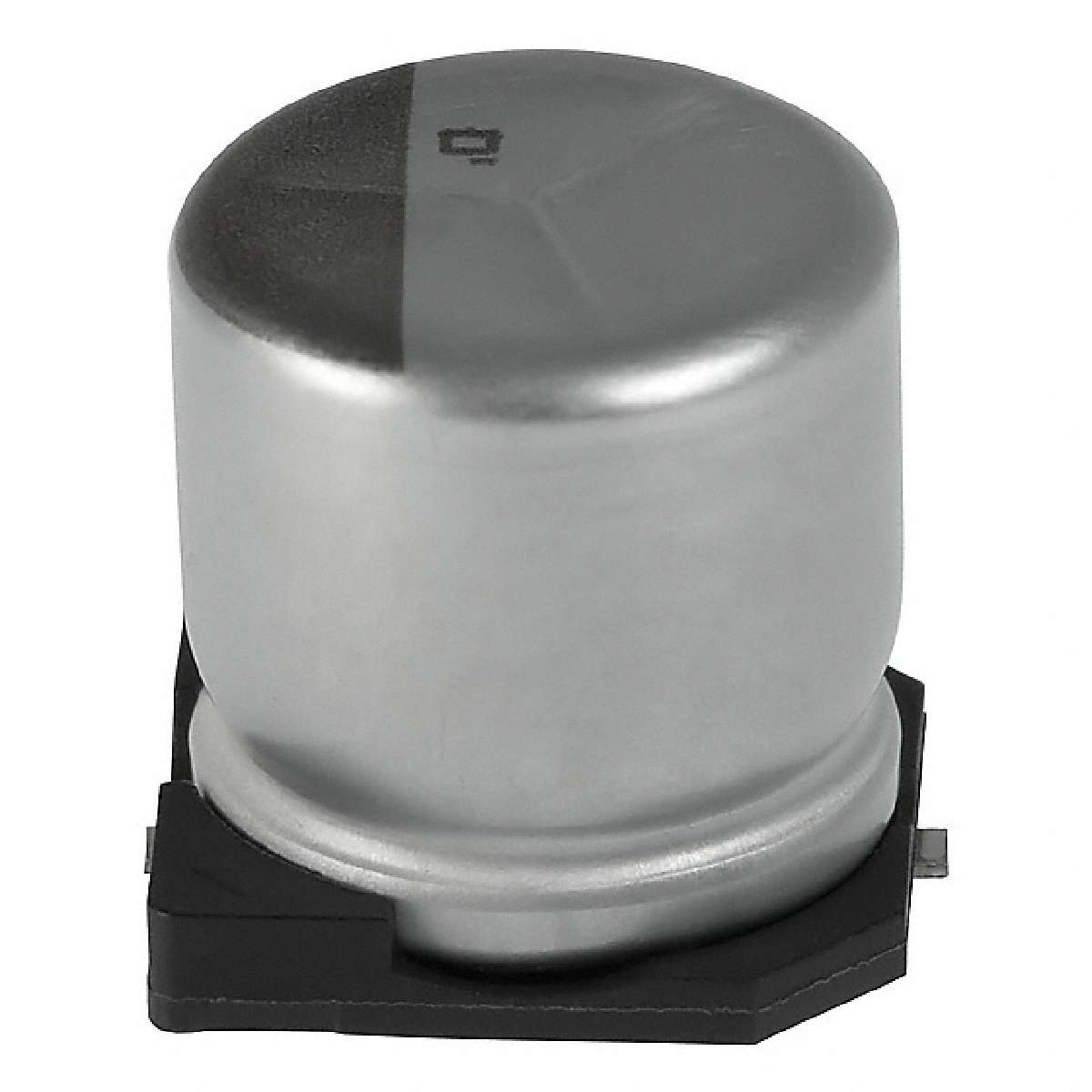

Cap Aluminum 1000uF 10V 20%35 (10 X 10mm) SMD 670mA 2000h 105°C T/R
|
||
| 标准包装：500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 10V |
|---|---|
| Tolerance | ±20% |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Capacitance | 1000µF |
| Packaging | Tape & Reel (TR) |
| Series | Alchip™ MVY |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| ECCN | EAR99 |
| Impedance | 150 mOhm |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Applications | General Purpose |
| Catalog Drawings | JA0 Bottom JA0_10 x 10 |
| Standard Package | 500 |
| Ripple Current | 670mA |
| Family | Aluminum Capacitors |
| Operating Temperature | -55°C ~ 105°C |
