| 77SPT36-01-1-10N | ||
|---|---|---|
|
|
||
|
||

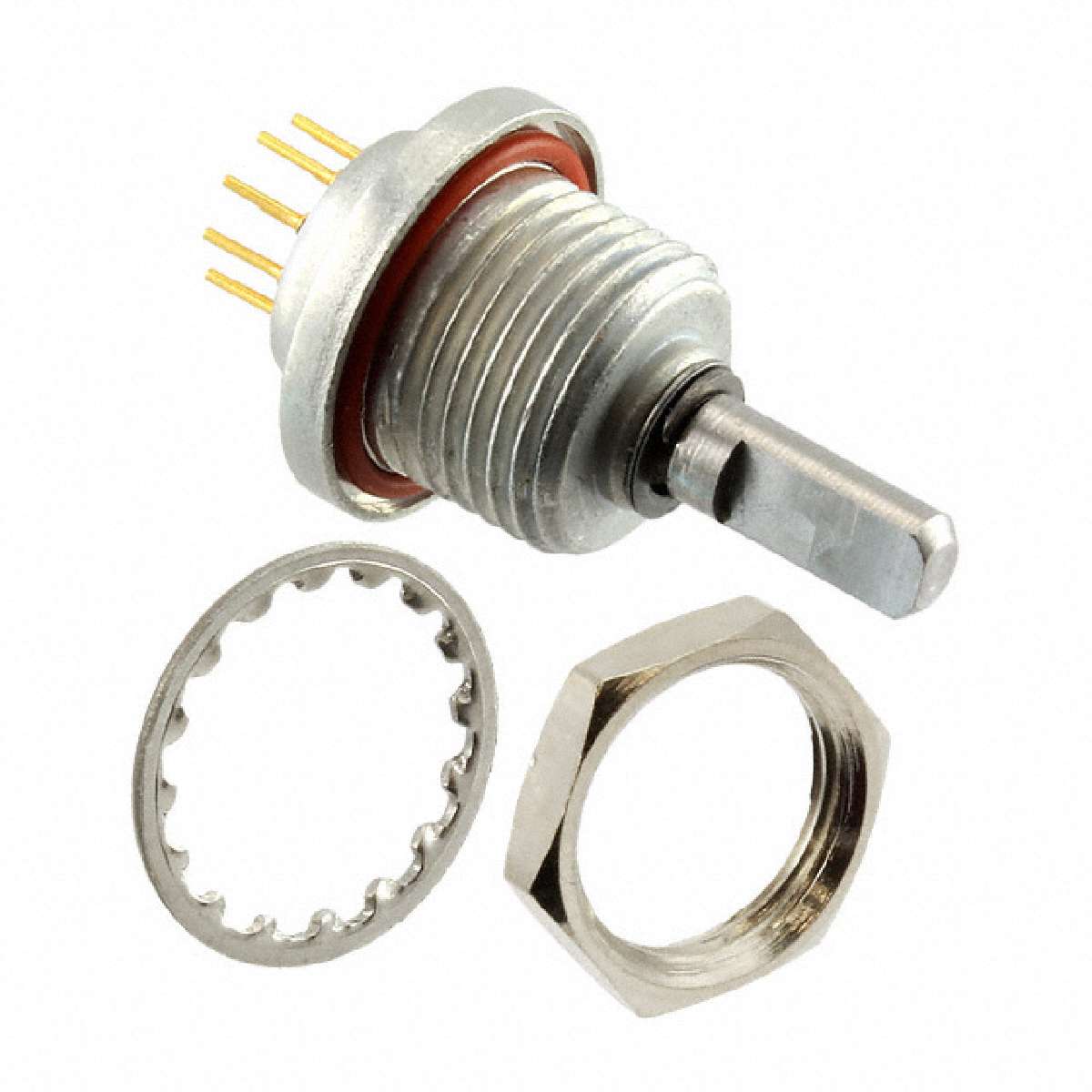

| Product description : 77 Series 10 Position 0.18 inch Behind Panel Single Deck Rotary Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Actuator Type | Flatted (3.17mm Dia) |
|---|---|
| Contact Finish | Gold |
| Actuator Length | 7.98mm |
| Voltage Rating - AC | 115V |
| Voltage Rating - DC | 28V |
| Features | Shaft and Panel Sealed |
| Manufacturer | Grayhill Inc. |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Series | 77 |
| Family | Rotary Switches |
| Mounting Type | Panel Mount, Through Hole |
| Contact Timing | Non-Shorting (BBM) |
| ECCN | EAR99 |
| Number of Poles per Deck | 1 |
| Angle of Throw | 36° |
| Number of Decks | 1 |
| Termination Style | PC Pin |
| Circuit per Deck | SP10T |
| Part Status | Active |
| Category | Switches |
| Index Stops | Continuous |
| Number of Positions | 10 |
| Panel Cutout Dimensions | Circular - 9.53mm Dia |
| Depth Behind Panel | 4.57mm |
| Current Rating | 50mA (AC), 200mA (DC) |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$145.12046
￥1205.319439767087
See more prices
| 1+ | $145.12046 |
|---|---|
| 5+ | $114.15518 |
| 10+ | $100.02026 |
| 25+ | $88.67364 |
| 50+ | $86.15288 |
| stock | 236 | Update On 2025-02-03 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 1/1 | |
| Location | -- | |
| DateCode | 2450 |
