| 78RB04ST | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

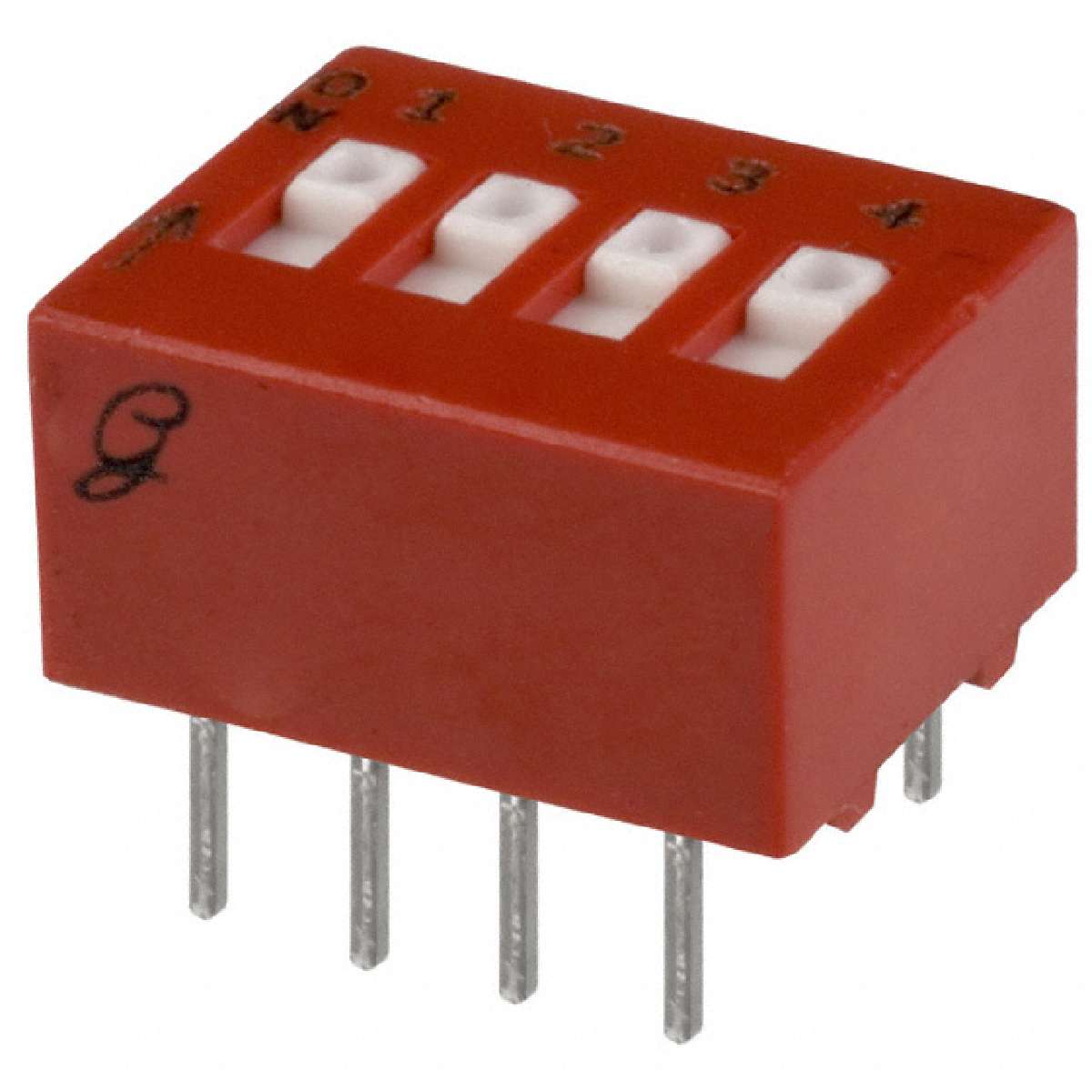

78 Series Recessed Slide SPST 4 Position Through Hole DIP Switch
|
||
| 标准包装：21 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Type: | DIP |
|---|---|
| Mounting Angle: | Vertical |
| Manufacturer: | Grayhill |
| Operating Temperature Range: | - 40 C to + 85 C |
| Contact Form: | SPST |
| Brand: | Grayhill |
| Number of Positions: | 4 Position |
| Package / Case: | DIP |
| Product Category: | DIP Switches / SIP Switches |
| Contact Plating: | Gold over Nickel |
| Terminal Pitch: | 2.5 mm |
| Packaging: | Tube |
| Actuator: | Recessed Slide |
| Mounting: | Through Hole |
| Voltage Rating DC: | 30 VDC |
| Factory Pack Quantity: | 21 |
| RoHS: | Details |
| Termination Style: | Solder Pin |
| Contact Material: | Copper Alloy |
| Current Rating: | 150 mA |
| Life: | 2000 Cycles |
| ECCN | EAR99 |
| 数据手册： |
|---|
