| EKMH630VSN562MR45T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

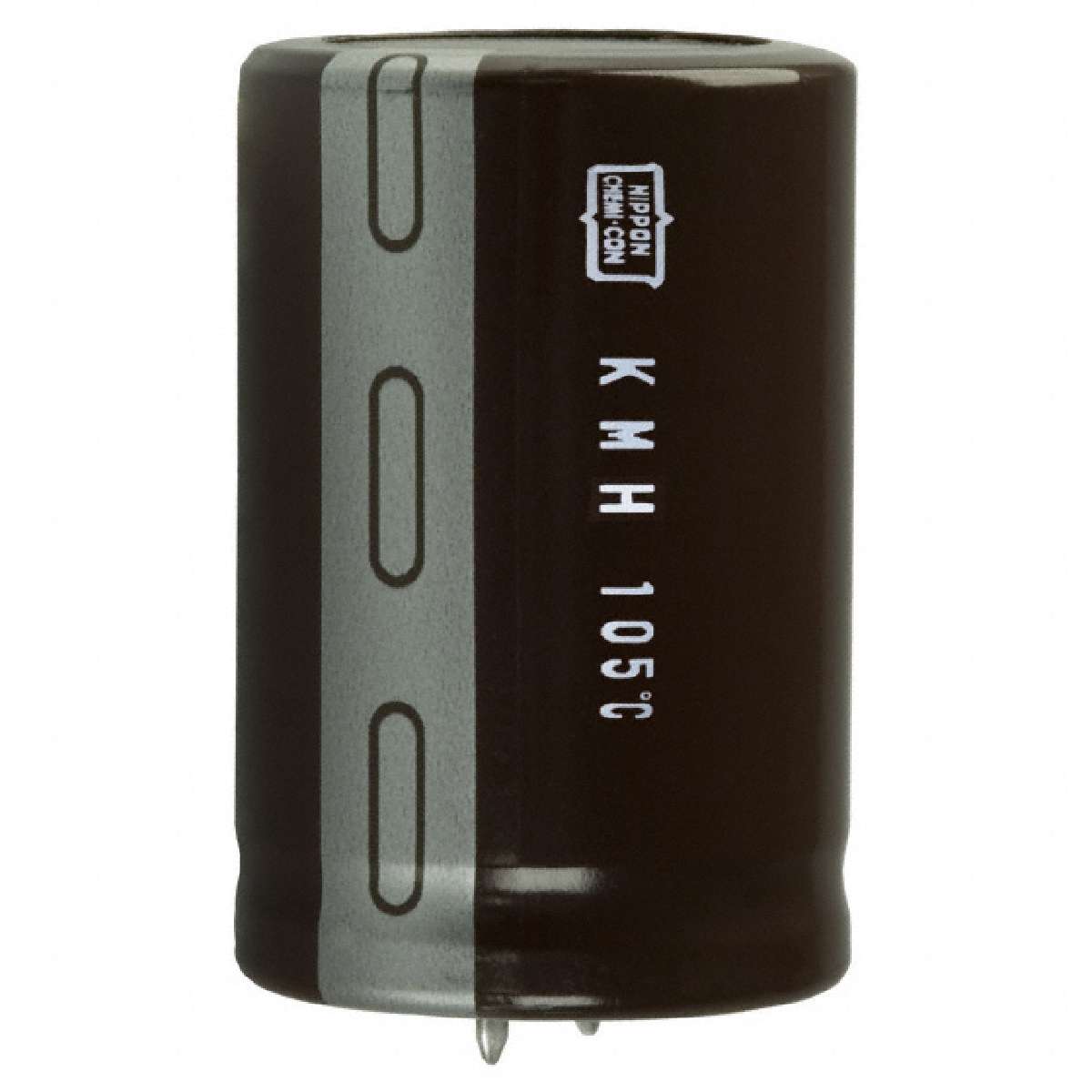

KMH Series 63 V 5600 uF Ø35x40mm Snap-In Aluminum Electrolytic Capacitor
|
||
| 标准包装：200 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 63V |
|---|---|
| Lead Spacing | 0.394" (10.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Applications | General Purpose |
| Catalog Drawings | KMH Series Bottom KMH Series Footprint KMH Series_30 x 45 |
| ESR (Equivalent Series Resistance) | 44 mOhm |
| Packaging | Bulk |
| Online Catalog | KMH Series |
| Family | Aluminum Capacitors |
| Operating Temperature | -40°C ~ 105°C |
| Tolerance | ±20% |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Capacitance | 5600µF |
| Standard Package | 200 |
| Ripple Current | 3.22A |
| Series | KMH |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| ECCN | EAR99 |
