| 861V509E | ||
|---|---|---|
|
|
||
|
||

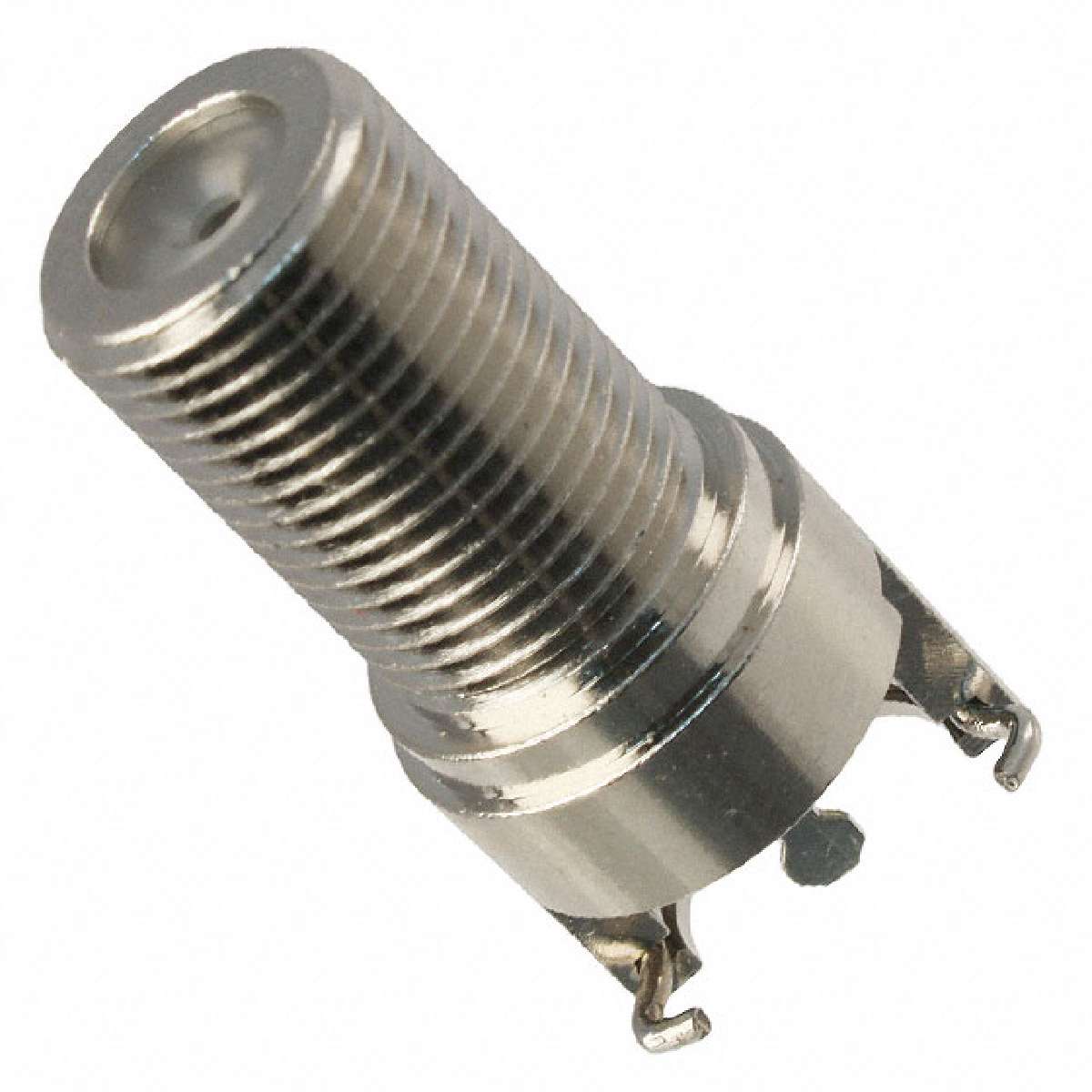

| Product description : V-Bite Series F style connectors with non-constant impedance PCB Mount Jack | ||
| SPQ：80 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage Rating | 500V |
|---|---|
| Connector Style | F Type |
| Contact Termination | Solder Tab |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Body Finish | Nickel |
| Packaging | Tray |
| Housing Color | Silver |
| Dielectric Material | Polypropylene (PP) |
| Category | Connectors, Interconnects |
| Family | Coaxial Connectors (RF) |
| Connector Type | Jack, Female Socket |
| Impedance | Non-Constant |
| Shield Termination | Solder |
| Center Contact Material | Phosphor Bronze |
| Cable Group | RG-59 |
| Manufacturer | Winchester Electronics |
| Mounting Type | Board Edge, End Launch |
| Fastening Type | Threaded |
| Frequency - Max | 1GHz |
| Part Status | Active |
| Series | V-Bite® |
| Operating Temperature | -40°C ~ 65°C |
| ECCN | EAR99 |
