| E207MD1V31BE | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

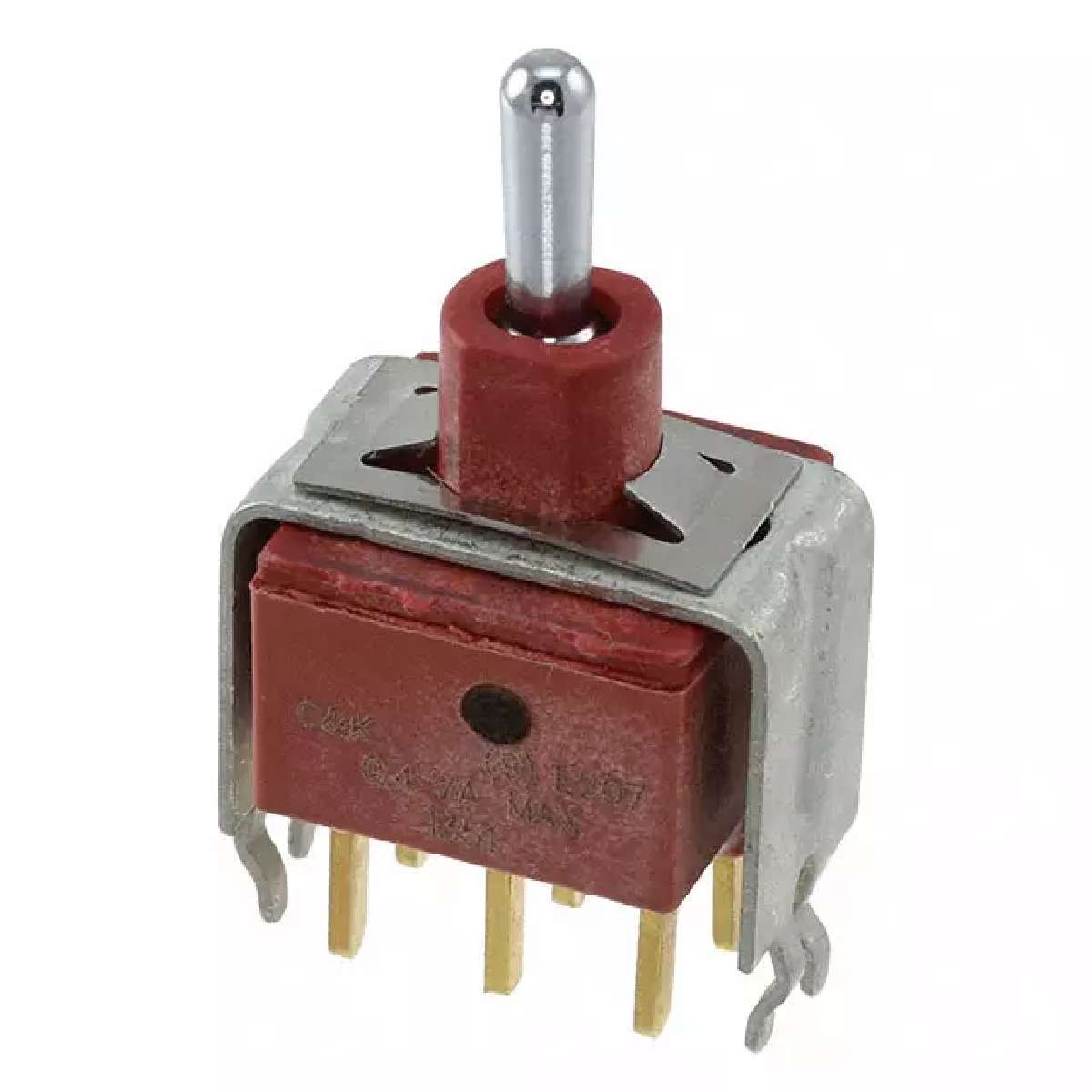

E Series DPDT On-Off-Mom Snap In V-Bracket Sealed Miniature Toggle Switch
|
||
| 标准包装：40 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | On-Off-Mom |
|---|---|
| Termination Style | PC Pin |
| Electrical Life | 40,000 Cycles |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Standard Package | 1 |
| Bushing Thread | Unthreaded |
| Packaging | Bulk |
| Series | E |
| PCN Other | Multiple Devices Material 22/Sep/2014 |
| Current Rating | 0.4VA (AC/DC) |
| Ingress Protection | IP57 - Dust Protected, Waterproof |
| Voltage Rating - DC | 20V |
| Mounting Type | Through Hole |
| Circuit | DPDT |
| Actuator Length | 7.62mm |
| Voltage Rating - AC | 20V |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Family | Toggle Switches |
| Operating Temperature | -30°C ~ 85°C |
| ECCN | EAR99 |
