| E2012 | ||
|---|---|---|
|
|
||
|
||

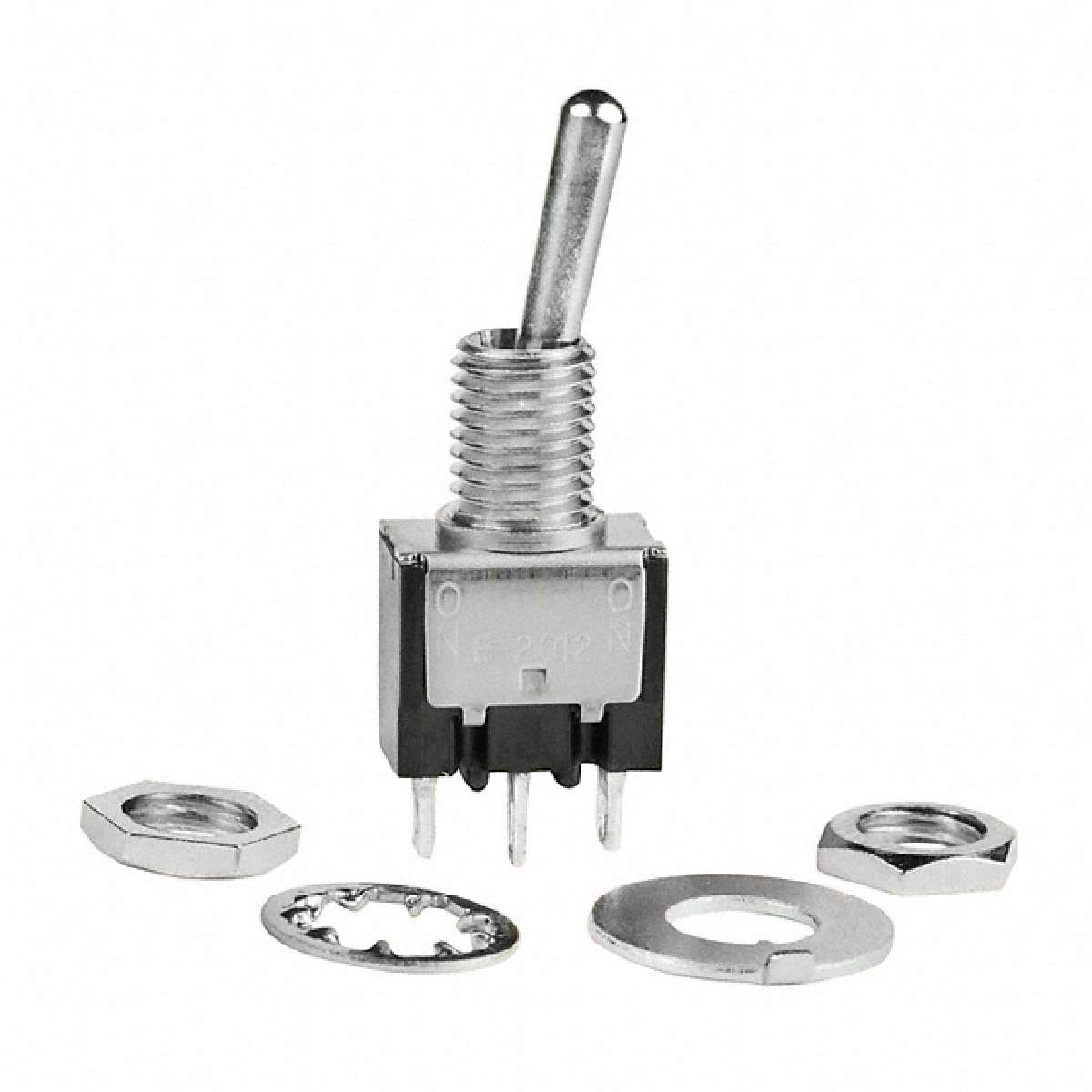

| Product description : E Series Light Duty Miniature On-None-On Stainless Steel Toggle Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Switch Function | On-On |
|---|---|
| Electrical Life | 20,000 Cycles |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Standard Round |
| Standard Package | 1 |
| Bushing Thread | M6 x 0.75 |
| Illumination | Non-Illuminated |
| Family | Toggle Switches |
| Operating Temperature | -10°C ~ 70°C |
| ECCN | EAR99 |
| Termination Style | Solder Lug |
| Mounting Type | Panel Mount |
| Circuit | SPDT |
| Actuator Length | 10.50mm |
| Voltage Rating - AC | 125V |
| Packaging | Bulk |
| Series | E |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Current Rating | 3A (AC) |
