| DRQ73-8R2-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
DRQ Series 8.2 uH ±20 % Tolerance 1.1 A Shielded SMT Power Inductor
|
||
| 标准包装：1350 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | 卤20% |
|---|---|
| Height | 0.140" (3.55mm) |
| Number of Coils | 2 |
| Standard Package | 1,350 |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Packaging | Tape & Reel (TR) |

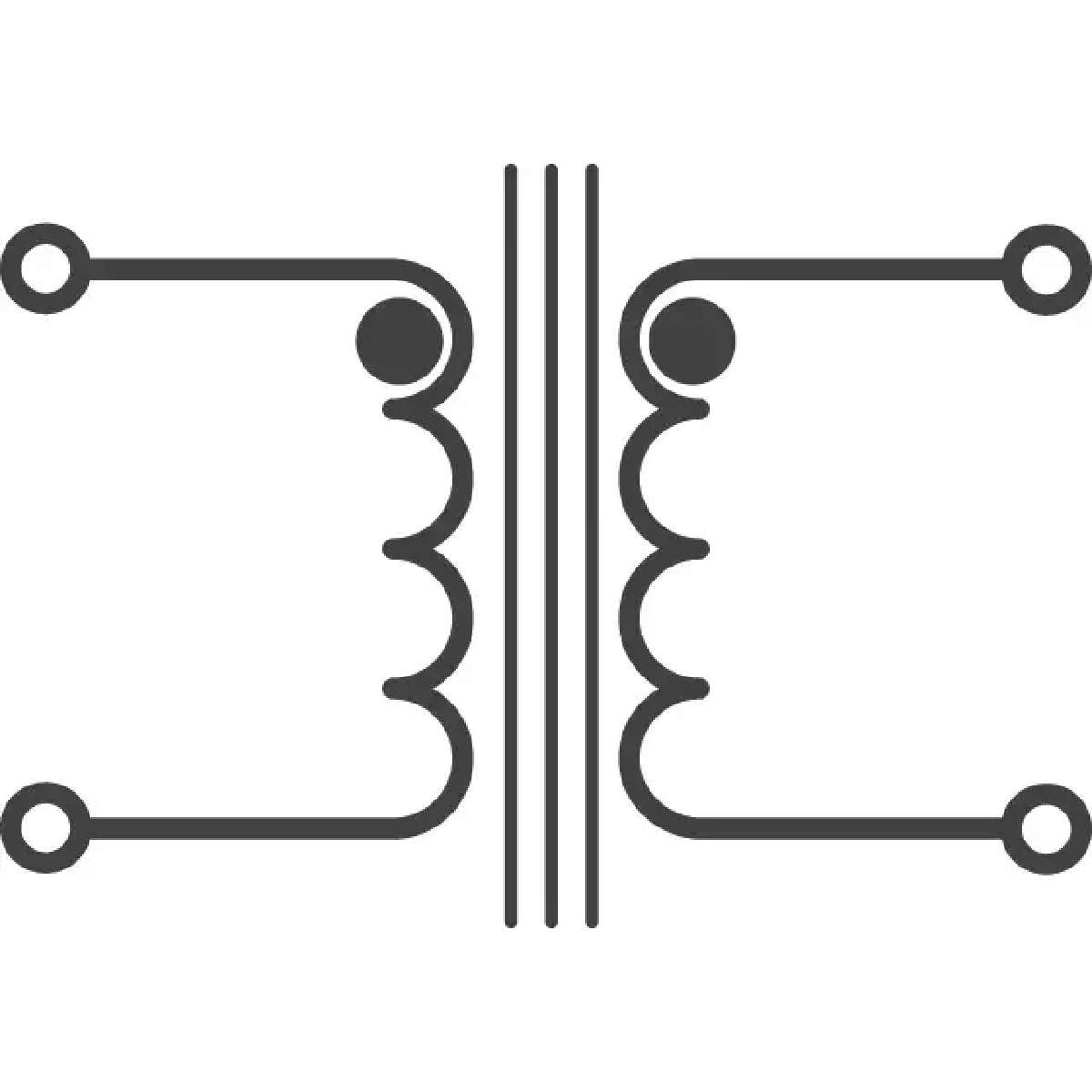

| Family | Arrays, Signal Transformers |
| Shielding | Shielded |
| Current | 1.1A |
| Package / Case | Nonstandard |
| Catalog Drawings | DRQ, SDQ Series Dual Mode DRQ, SDQ Series Parallel Mode DRQ, SDQ Series Mode DRQ73 Series |
| Inductance - Connected In Series | 35.72碌H |
| Inductance - Connected In Parallel | 8.93碌H |
| Product Training Modules | Shielded Drum Core Inductor Coiltronics DR Series |
| Series | DRQ |
| Mounting Type | Surface Mount |
| DC Resistance (DCR) | 118.4 mOhm |
| ECCN | EAR99 |
