| DRQ73-680-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
DRQ Series 68 uH ±20 % Tolerance 0.444 A Shielded SMT Power Inductor
|
||
| 标准包装：1350 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Height | 0.140" (3.55mm) |
| Number of Coils | 2 |
| Standard Package | 1,350 |

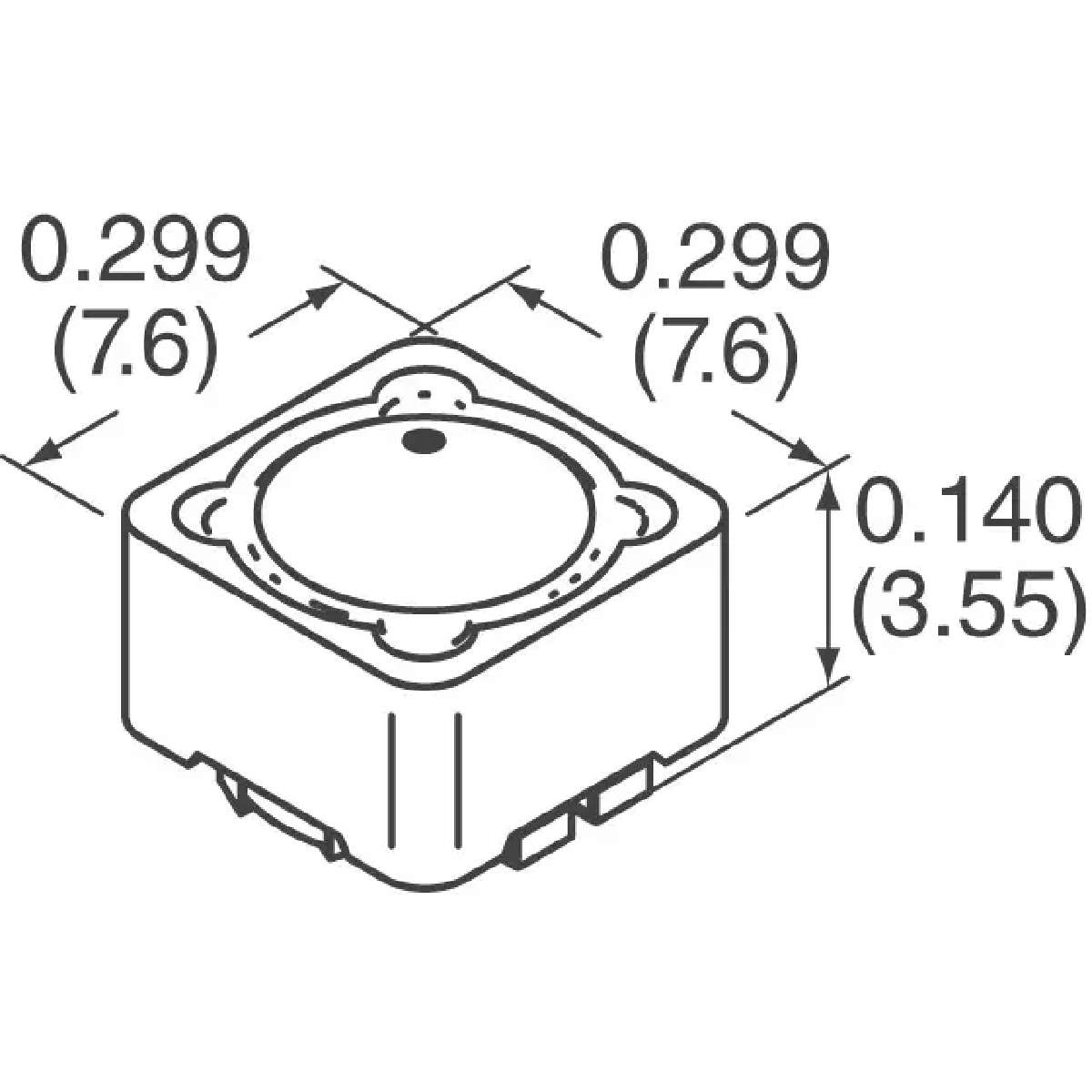

| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Packaging | Tape & Reel (TR) |
| Family | Arrays, Signal Transformers |
| Shielding | Shielded |
| Current | 444mA |
| Package / Case | Nonstandard |
| Catalog Drawings | DRQ73 Series |
| Inductance - Connected In Series | 275.6µH |
| Inductance - Connected In Parallel | 68.91µH |
| Product Training Modules | Shielded Drum Core Inductor Coiltronics DR Series |
| Series | DRQ |
| Mounting Type | Surface Mount |
| DC Resistance (DCR) | 715 mOhm |
| ECCN | EAR99 |
