DR1030-121-R specifications -Ameya360 electronic components purchase network

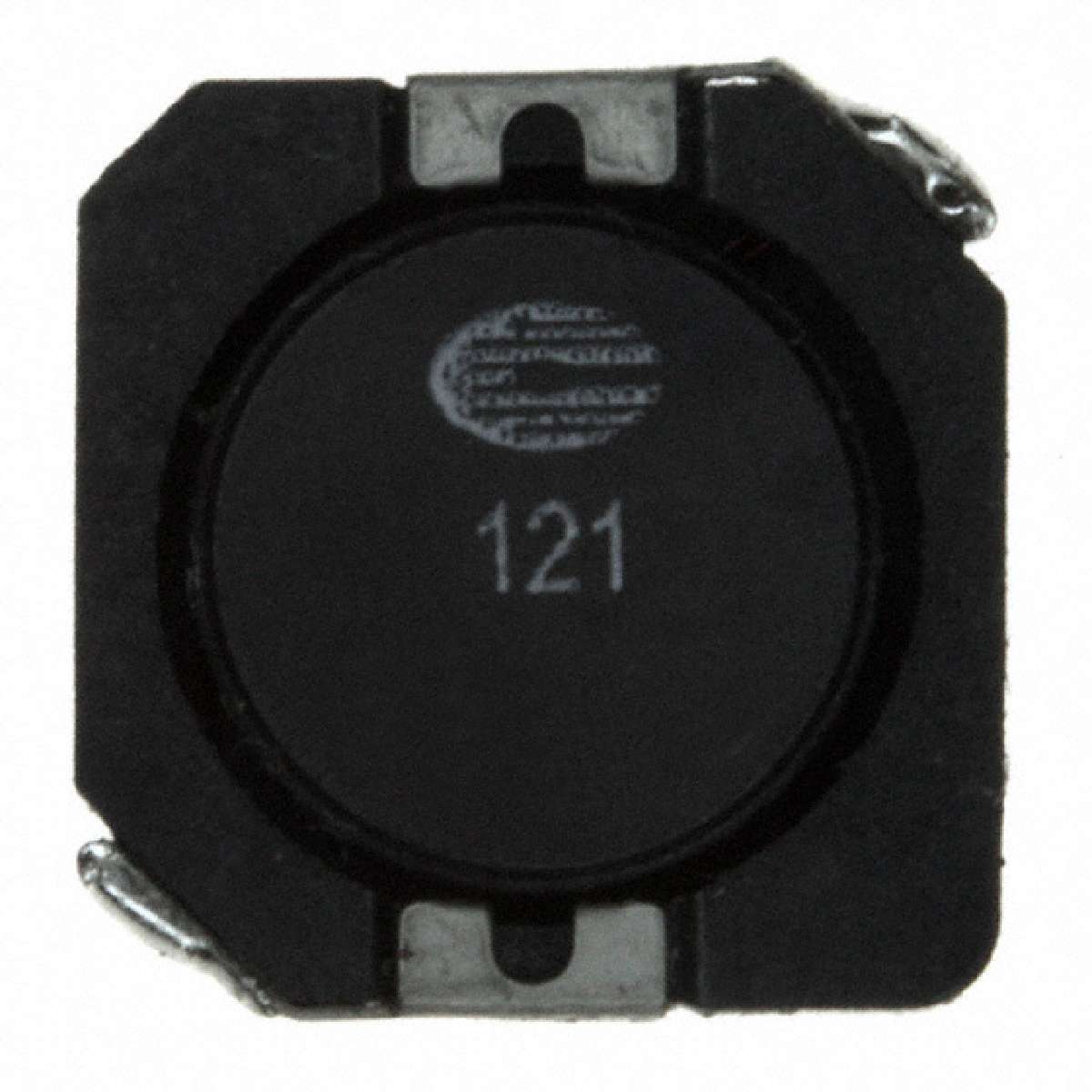

DR1030-121-R

ACTIVE Nonstandard EAR99
Product description : DR Series 120 uH ±30 % Tolerance 0.8 A Shielded SMT High Power Inductor
SPQ：1000
Datasheet : DR1030-121-R.pdf

Tolerance	±30%
Package / Case	Nonstandard
Catalog Drawings	DR1030 Series
Current - Saturation	950mA
Product Training Modules	Shielded Drum Core Inductor Coiltronics DR Series
Height - Seated (Max)	0.118" (3.00mm)
Series	DR1030
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 125°C
Current Rating	800mA
ECCN	EAR99
Inductance	120µH
Type	Wirewound
Standard Package	1
Size / Dimension	0.413" L x 0.405" W (10.50mm x 10.30mm)
Packaging	Cut Tape (CT)
Material - Core	Ferrite
Family	Fixed Inductors
Shielding	Shielded
DC Resistance (DCR)	602 mOhm Max
Frequency - Test	100kHz

Datasheet： DR1030-121-R.pdf

You can comment after logging in.

Out of stock, Please InquiryRFQ

Please inform us of the error for improving our site and products.

Stock code :	2467612
Mfg name :	Eaton
MPN :	DR1030-121-R
Product description :	DR Series 120 uH ±30 % Tolerance 0.8 A Shielded SMT High Power Inductor
