| DHG50X1200NA | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

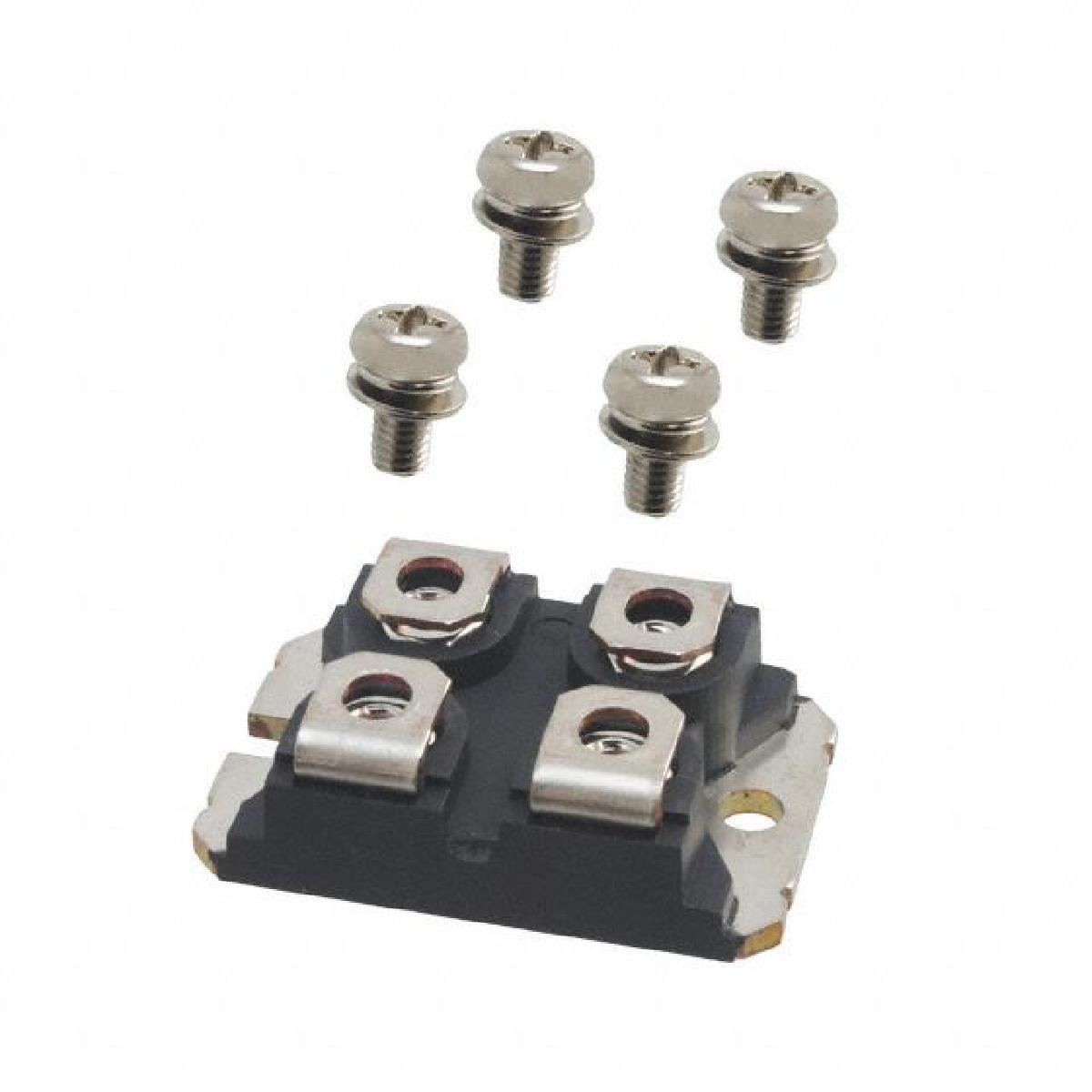

DHG Series 1200 V 25 A High Performance Fast Recovery Diode - SOT227B
|
||
| 标准包装：10 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | SOT-227-4, miniBLOC |
|---|---|
| Standard Package | 10 |
| Packaging | Tube |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 50µA @ 1200V |
| Mounting Type | Chassis Mount |
| Diode Configuration | 2 Independent |
| ECCN | EAR99 |
| Supplier Device Package | SOT-227B |
| Current - Average Rectified (Io) (per Diode) | 25A |
| Diode Type | Standard |
| Reverse Recovery Time (trr) | 75ns |
| Family | Diodes, Rectifiers - Modules |
| Voltage - DC Reverse (Vr) (Max) | 1200V (1.2kV) |
| Voltage - Forward (Vf) (Max) @ If | 2.12V @ 25A |
