| 产品描述：

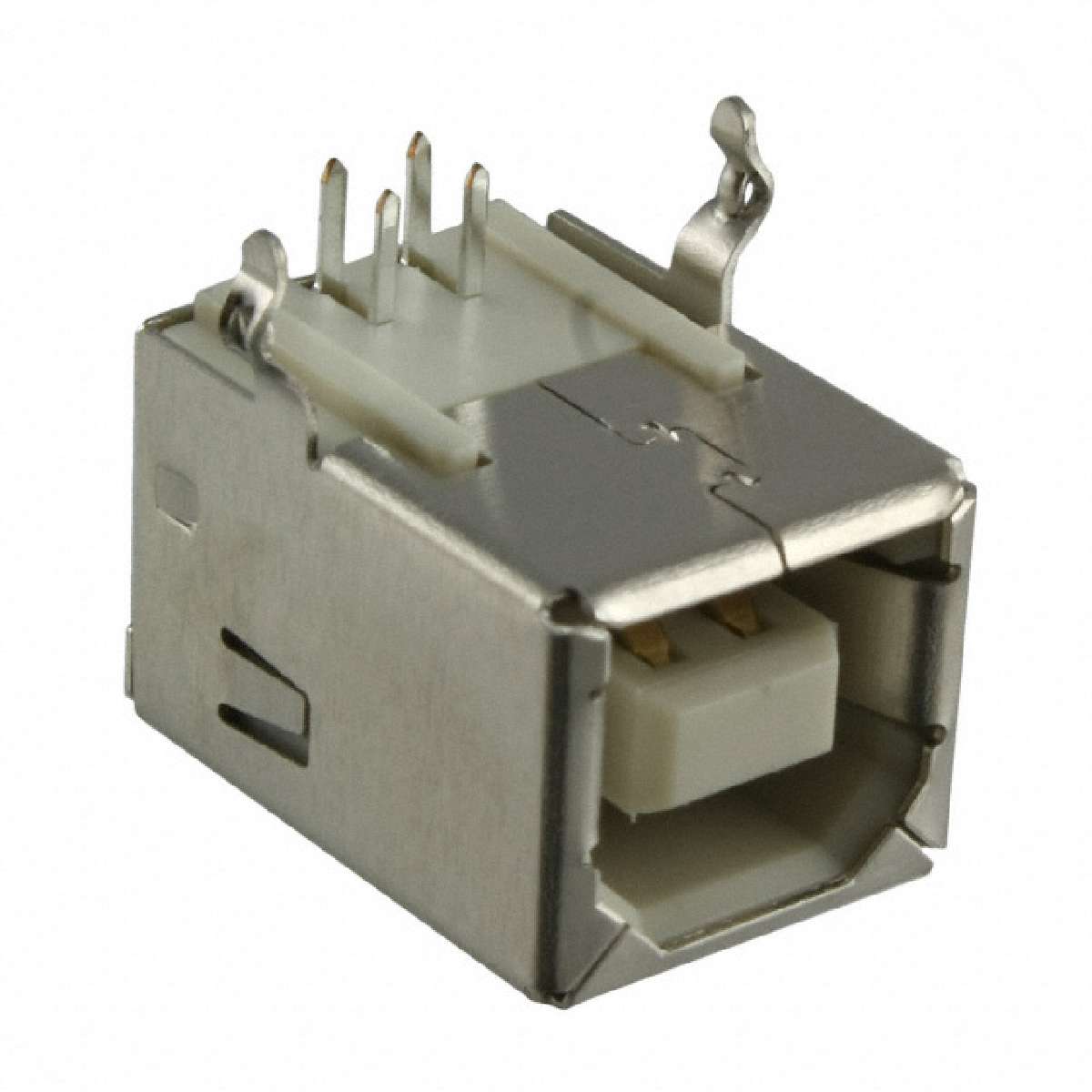

Socket; USB B; on PCBs; THT; PIN: 4; angled 90°; USB 2.0; 1A; 30V
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Color: | White |
|---|---|
| Mounting Angle: | Right |
| Standard: | USB |
| Voltage Rating: | 30 V |
| Factory Pack Quantity: | 100 |
| RoHS: | Details |
| Connector Type: | USB Type B Receptacle |
| Gender: | Female |
| Number of Contacts: | 4 Contact |
| Current Rating: | 1 A |
| Insulation Resistance: | 1000 MOhms |
| ECCN | EAR99 |
| Product: | USB Type B Connectors |
| Manufacturer: | Keystone Electronics |
| Features: | Low contact resistance |
| Operating Temperature Range: | 0 C to + 40 C |
| Brand: | Keystone Electronics |
| Termination Style: | Solder |
| Contact Material: | Phosphor Bronze |
| Product Category: | USB Connectors |
| Flammability Rating: | UL 94 V-0 |
| Contact Plating: | Gold |
| Number of Ports: | 1 Port |
| 数据手册： |
|---|
