| 94HAB16WT | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

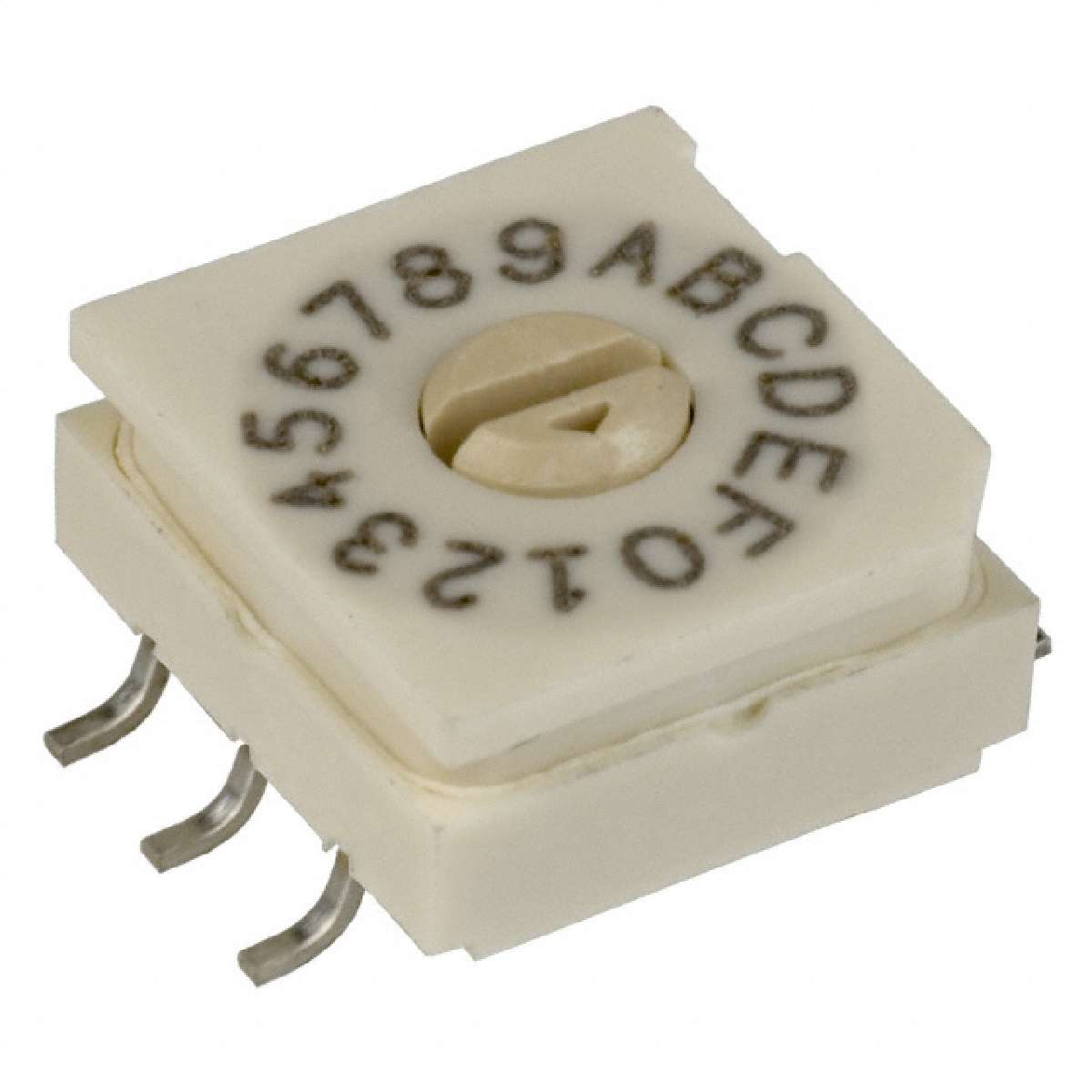

94H Series 16 Position Surface Mount Coded Rotary DIP Switch
|
||
| 标准包装：27 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination Style | Gull Wing |
|---|---|
| Voltage Rating | 50VDC |
| Manufacturer | Grayhill Inc. |
| Mounting Type | Surface Mount |
| Height Above Board | 0.225" (5.72mm) |
| Actuator Type | Rotary for Tool |
| Part Status | Active |
| Contact Material | Copper Alloy |
| Length | 0.390" (9.91mm) |
| Number of Positions | 16 |
| Family | DIP Switches |
| Current Rating | 100mA |
| ECCN | EAR99 |
| Contact Finish | Gold |
| Body Material | Plastic |
| Washable | Yes |
| Packaging | Tube |
| Circuit | Hexadecimal |
| Features | Sealed |
| Category | Switches |
| Actuator Level | Flush, Recessed |
| Mechanical Life | 10,000 Cycles |
| Series | 94H |
| Operating Temperature | -40°C ~ 85°C |
| Pitch | 0.100" (2.54mm), Full |
| 数据手册： |
|---|
登录之后就可发表评论
Availability3Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 5004 | Update On 2025-06-24 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 27/1 | |
| Location | -- | |
| DateCode | 2342 |
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$3.3635
￥27.93604780325748
| 54+ | $3.3635 |
|---|---|
| 108+ | $3.162 |
| stock | 3402 | Update On 2022-11-30 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 27/54 | |
| Location | -- | |
| DateCode | 1744 |
