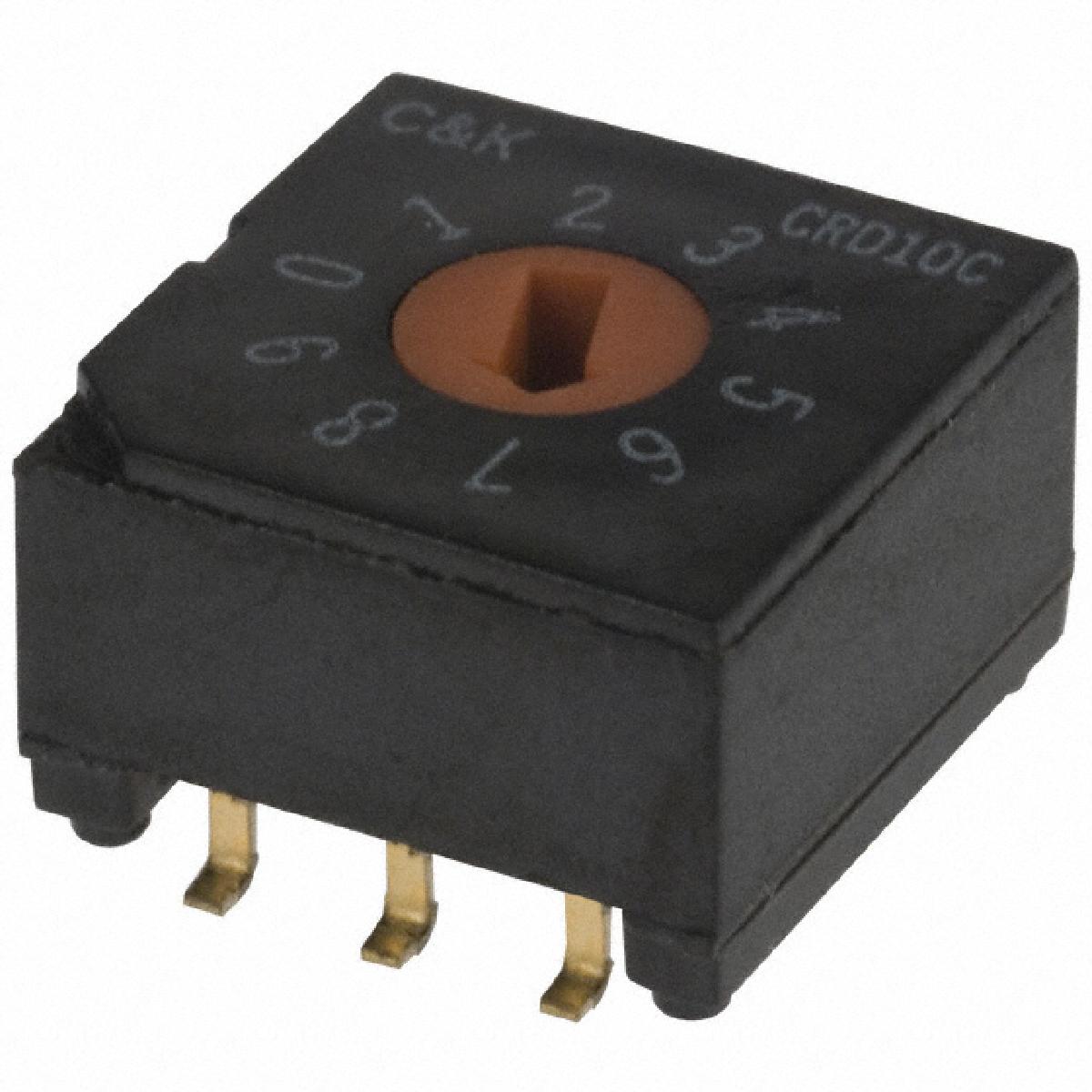

CRD10CM0SBR
CRD10CM0SBR
  • ACTIVE
Product description : SWITCH ROTARY DIP BCD COMP
SPQ：500
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews

Voltage Rating 20VAC/DC
Termination Style Gull Wing
Electrical Life 20,000 Steps
Mounting Type Surface Mount
Circuit BCD Complement
Standard Package   500
Packaging   Tape & Reel (TR)
Actuator Level Flush, Recessed
Mechanical Life 30,000 Steps
Series CRD
Operating Temperature -20°C ~ 85°C
Pitch 0.100" (2.54mm), Full
Contact Finish Gold
Body Material Polyphenylene Sulfide (PPS)
Washable Yes
Height Above Board 0.271" (6.88mm)
Actuator Type Rotary for Tool
Features Process Sealed
Contact Material Beryllium Copper
Length 0.393" (10.00mm)
Number of Positions 10
Family DIP Switches
Current Rating 0.4VA
Datasheet：
