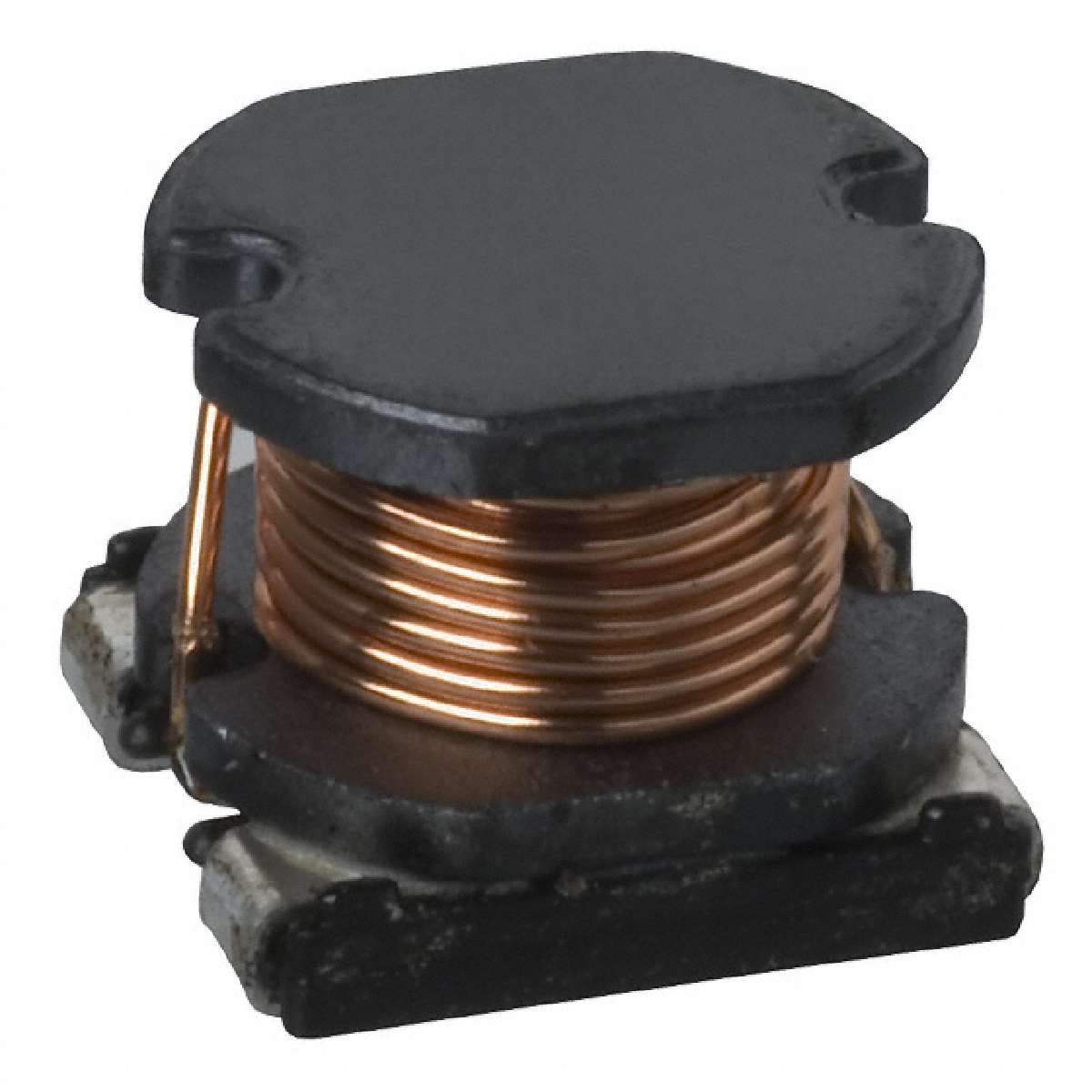

| CR54NP-151KC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
CR Series 150 uH 20 % Tolerance 0.4 A Surface Mount Power Inductor
|
||
| 标准包装：1500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±10% |
|---|---|
| Type | Wirewound |
| Size / Dimension | 0.228" L x 0.209" W (5.80mm x 5.30mm) |
| Mounting Type | Surface Mount |
| DC Resistance (DCR) | 1.1 Ohm Max |
| Package / Case | Nonstandard |
| Standard Package | 1,500 |
| Material - Core | Ferrite |
| Series | CR54 |
| Operating Temperature | -40°C ~ 100°C |
| ECCN | EAR99 |
| Inductance | 150µH |
| Product Training Modules | Power Inductor Basics |
| Height - Seated (Max) | 0.191" (4.85mm) |
| Shielding | Unshielded |
| Frequency - Test | 1kHz |
| Catalog Drawings | CR54 Series Top CR54 Series Bottom CR54 Series Side CR54 Series Coil Layout CR54 Series Coil Layout |
| Packaging | Tape & Reel (TR) |
| Online Catalog | CR54 Series |
| Family | Fixed Inductors |
| Current Rating | 400mA |
