| CR43NP-120MC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

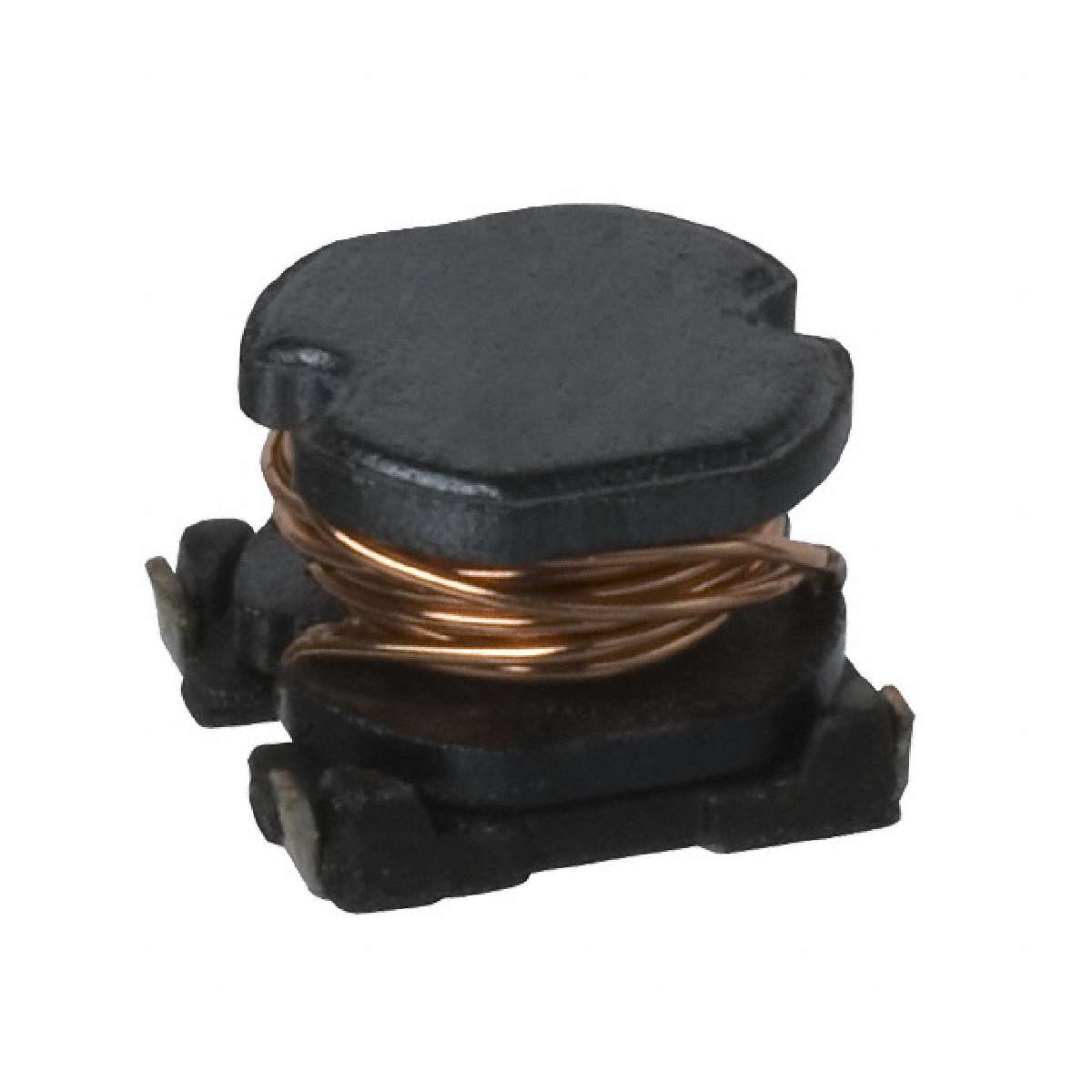

CR Series 12 uH 20 % Tolerance 0.71 A Surface Mount Power Inductor
|
||
| 标准包装：1500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | Nonstandard |
| Catalog Drawings | CR43 Series Side CR43 Series Bottom CR43 Series Pin Out |
| Standard Package | 1,500 |
| Product Training Modules | Power Inductor Basics |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Series | CR43 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Current Rating | 970mA |
| ECCN | EAR99 |
| Inductance | 12µH |
| Type | Wirewound |
| Frequency - Self Resonant | 30.5MHz |
| Size / Dimension | 0.189" L x 0.169" W (4.80mm x 4.30mm) |
| Packaging | Tape & Reel (TR) |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Unshielded |
| DC Resistance (DCR) | 210 mOhm Max |
| Frequency - Test | 2.52MHz |
