| A011-D-V-350 | ||
|---|---|---|
|
|
||
|
||

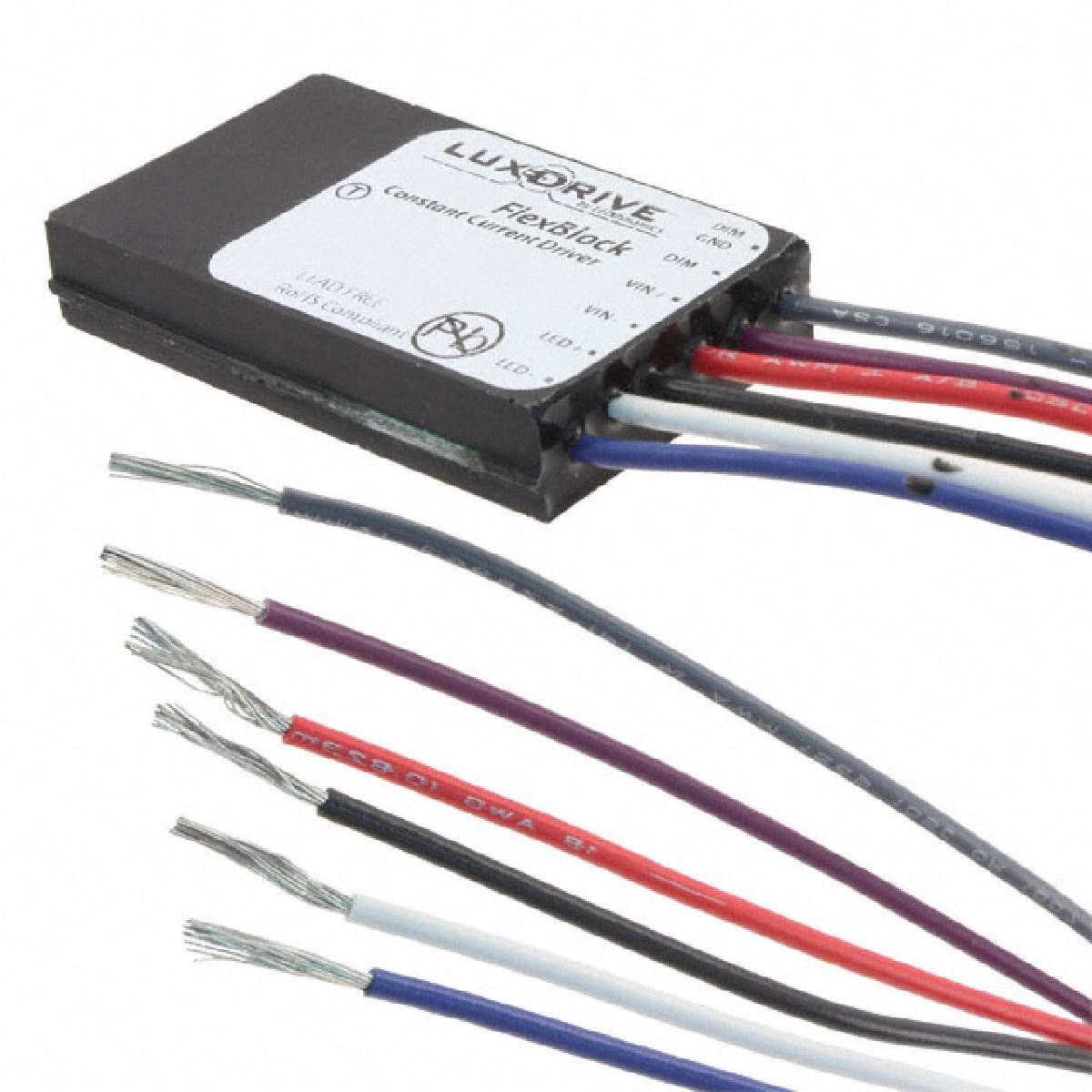

| Product description : A011 Series 350 mA 48 Vdc Output Max High Output Wide Range LED Power Module | ||
| SPQ：10 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Number of Outputs | 1 |
|---|---|
| Topology | Buck-Boost |
| Termination Style | Wire Leads |
| Features | SCP |
| Part Status | Active |
| Efficiency | 90% |
| Voltage - Input (Max) | 32V |
| Series | FlexBlock™ A011 |
| Family | LED Drivers |
| Mounting Type | Chassis Mount |
| ECCN | EAR99 |
| Type | Constant Current |
| Current - Output (Max) | 350mA |
| Voltage - Output | 48V (Max) |
| Size / Dimension | 2.00" L x 1.20" W x 0.38" H (50.8mm x 30.5mm x 9.5mm) |
| Category | Power Supplies - External/Internal (Off-Board) |
| Manufacturer | LEDdynamics Inc. |
| Dimming | Analog, PWM |
| Power (Watts) | 17W |
| Voltage - Input (Min) | 10V |
| Operating Temperature | -40°C ~ 80°C |
