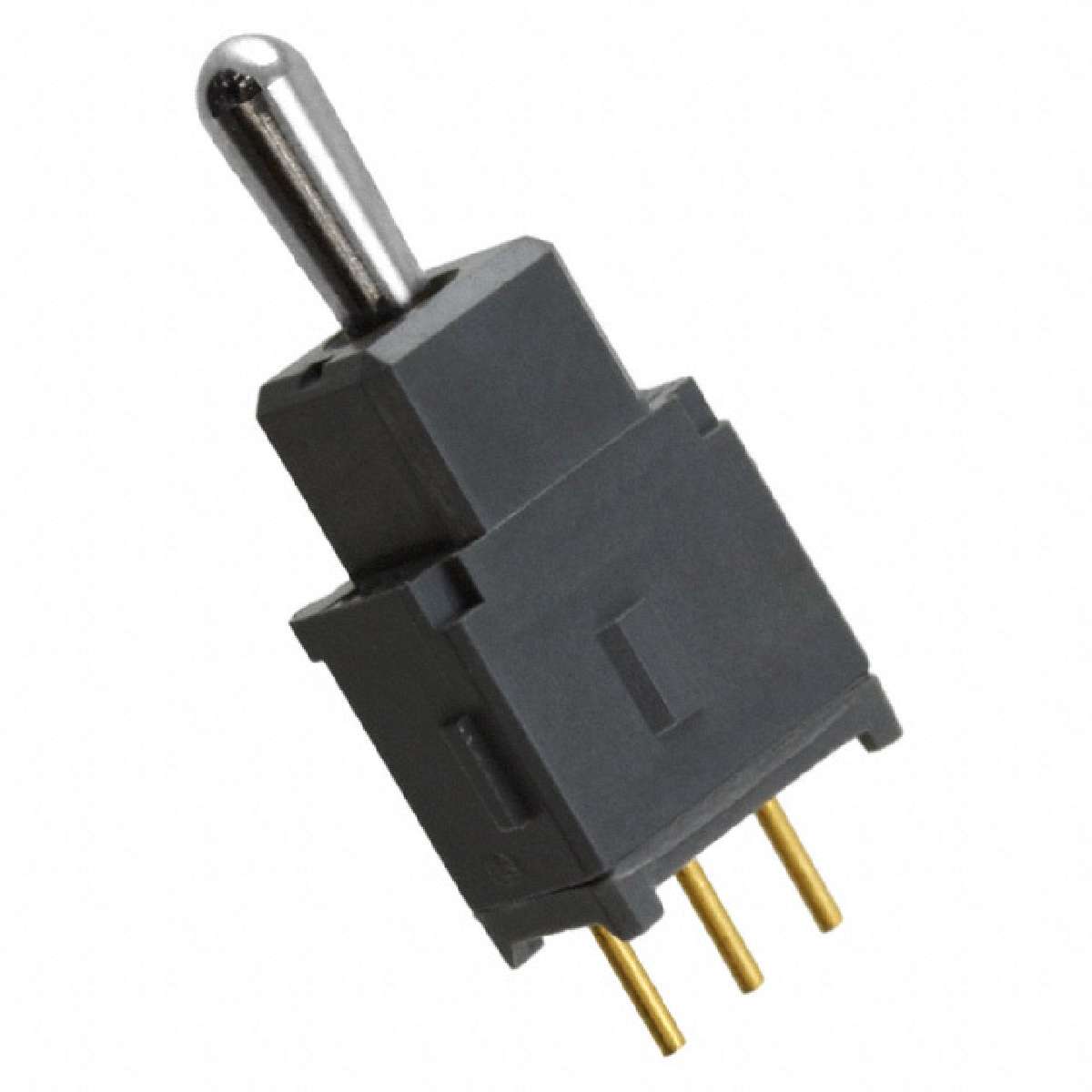

| A13JP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Switch: toggle; Pos: 3; SPDT; ON-OFF-ON; 0.01A/28VAC; 0.01A/28VDC
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Mounting Angle: | Vertical |
|---|---|
| Housing Material: | Polyamide, Glass Fiber Reinforced |
| Switch Function: | ON - OFF - ON |
| Manufacturer: | NKK Switches |
| Series: | A |
| Voltage Rating DC: | 28 VDC |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| Termination Style: | Solder Pin |
| Product Category: | Toggle Switches |
| Contact Plating: | Gold |
| Type: | Process Sealed Subminiature Toggles |
| Power Rating: | 0.4 VA |
| Terminal Seal: | Sealed |
| Actuator: | Bat |
| Voltage Rating AC: | 28 V |
| Operating Temperature Range: | - 30 C to + 85 C |
| Contact Form: | SPDT |
| Part # Aliases: | A-13JP |
| RoHS: | Details |
| Contact Material: | Phosphor Bronze |
| Current Rating: | 100 mA |
| Life: | 50000 Cycles |
| Mounting Style: | Through Hole |
