| A2530E24AZ1GM | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

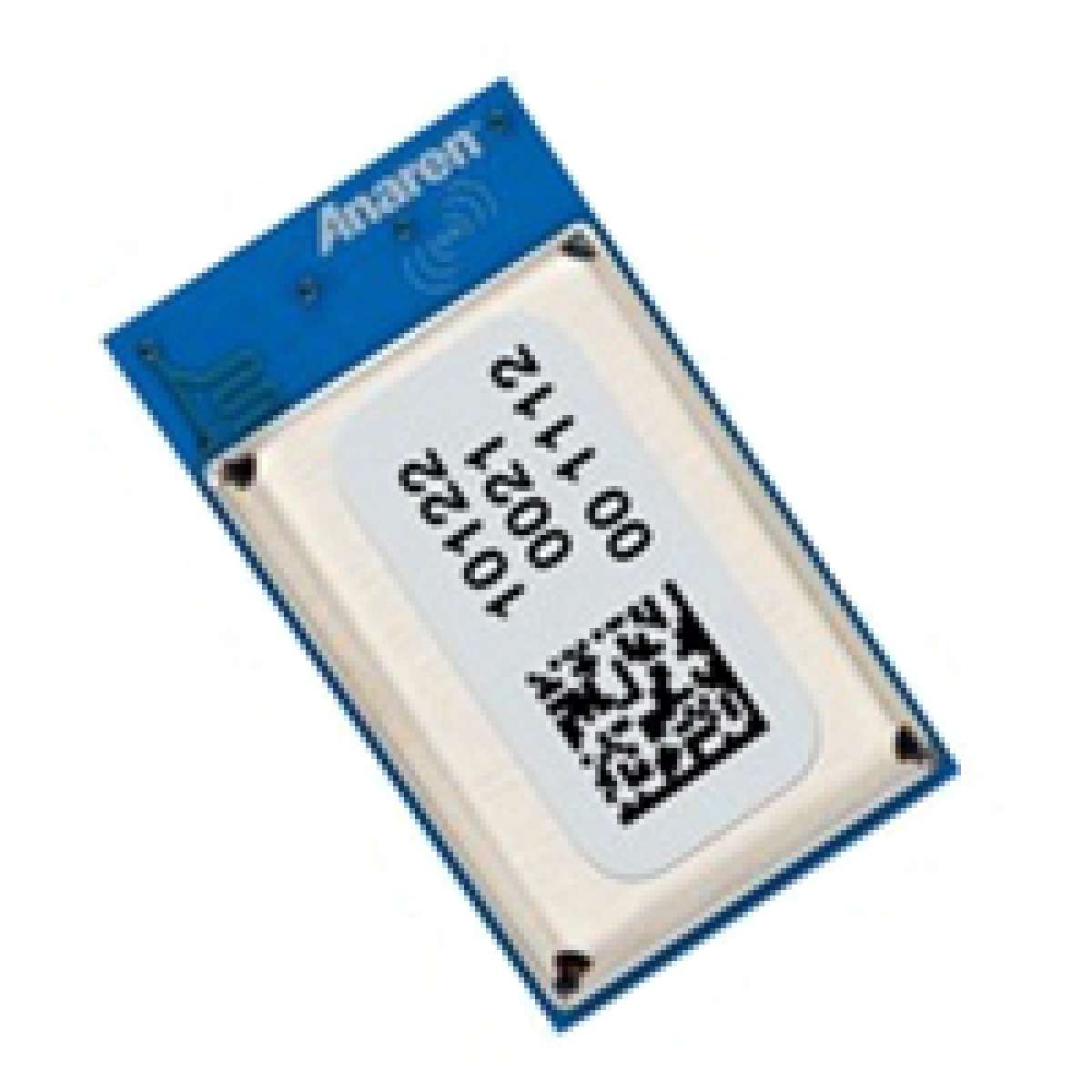

RANGE EXTENDER MODULE TXRX
|
||
| 标准包装：27 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Dimensions: | 11 mm x 19 mm x 2.5 mm |
|---|---|
| Supply Current Transmitting: | 68 mA |
| Sensitivity: | - 95 dBm |
| Interface Type: | SPI, UART |
| Minimum Operating Temperature: | - 40 C |
| Factory Pack Quantity: | 27 |
| Tradename: | AIR |
| Product Category: | Zigbee / 802.15.4 Modules |
| Maximum Operating Temperature: | + 85 C |
| Supply Current Receiving: | 28 mA |
| Packaging: | Tray |
| Manufacturer: | Anaren |
| Operating Supply Voltage: | 2.2 V to 3.6 V |
| Frequency: | 2.4 GHz |
| Brand: | Anaren |
| RoHS: | Details |
| Antenna Connector Type: | Chip |
