| A700X187M006ATE015 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

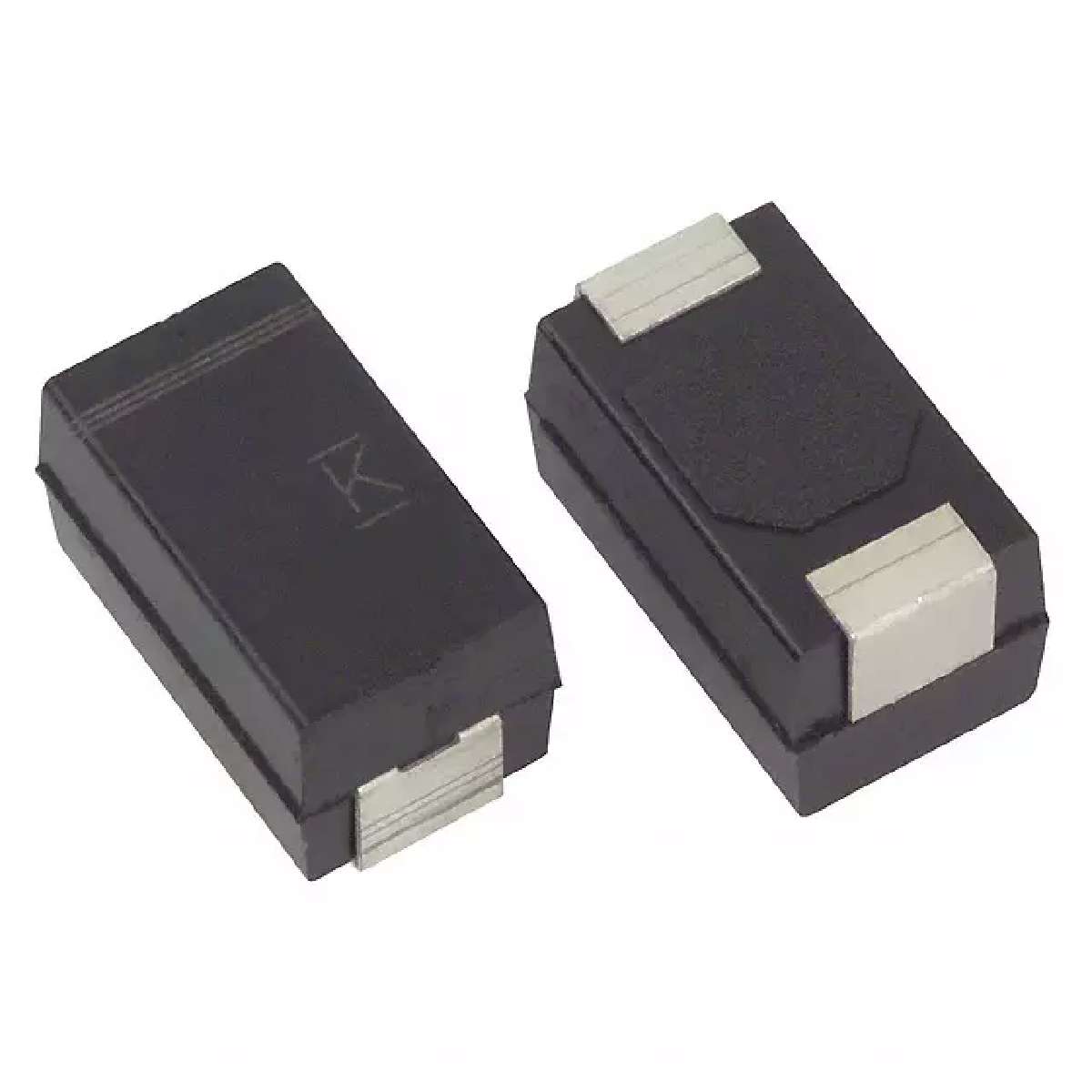

Kemet A700系列 180μF 6.3 V 直流 铝电容器, ±20%容差 15 mΩ@ 100kHz, X封装/外壳, 聚合体技术
|
||
| 标准包装：500 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | 2917 (7343 Metric) |
| Capacitance | 180µF |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Ripple Current | 3.9A |
| Manufacturer | Kemet |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Family | Aluminum - Polymer Capacitors |
| Operating Temperature | -55°C ~ 125°C |
| Voltage Rating | 6.3V |
| Type | Polymer |
| ESR (Equivalent Series Resistance) | 15 mOhm |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.169" (4.30mm) |
| Series | AO-Cap A700 |
| Mounting Type | Surface Mount |
| Packaging | Cut Tape (CT) |
