ACML-0603-101-T
ACML-0603-101-T
  • ACTIVE
  • 0603 (1608 Metric)
  • EAR99

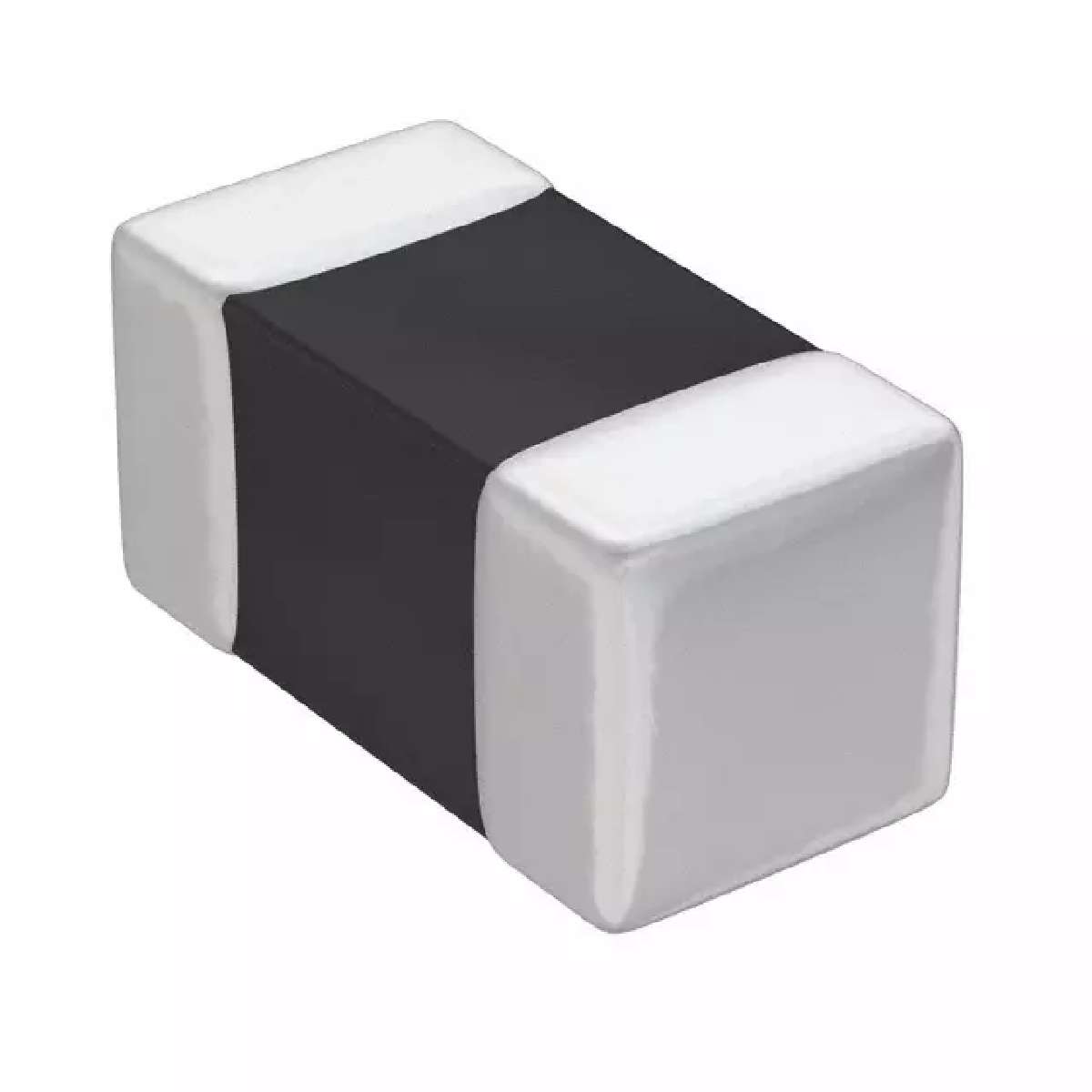

Product description : FERRITE BEAD 100 OHM 0603
SPQ：4000
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews

Package / Case 0603 (1608 Metric)
Number of Lines 1
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
DC Resistance (DCR) (Max) 200 mOhm
Manufacturer Abracon LLC
Family Ferrite Beads and Chips
Mounting Type Surface Mount
Packaging Cut Tape (CT)
Current Rating (Max) 200mA
Impedance @ Frequency 100 Ohm @ 100MHz
Part Status Active
Category Filters
Series ACML
Height (Max) 0.037" (0.95mm)
Operating Temperature -55°C ~ 125°C
ECCN EAR99
