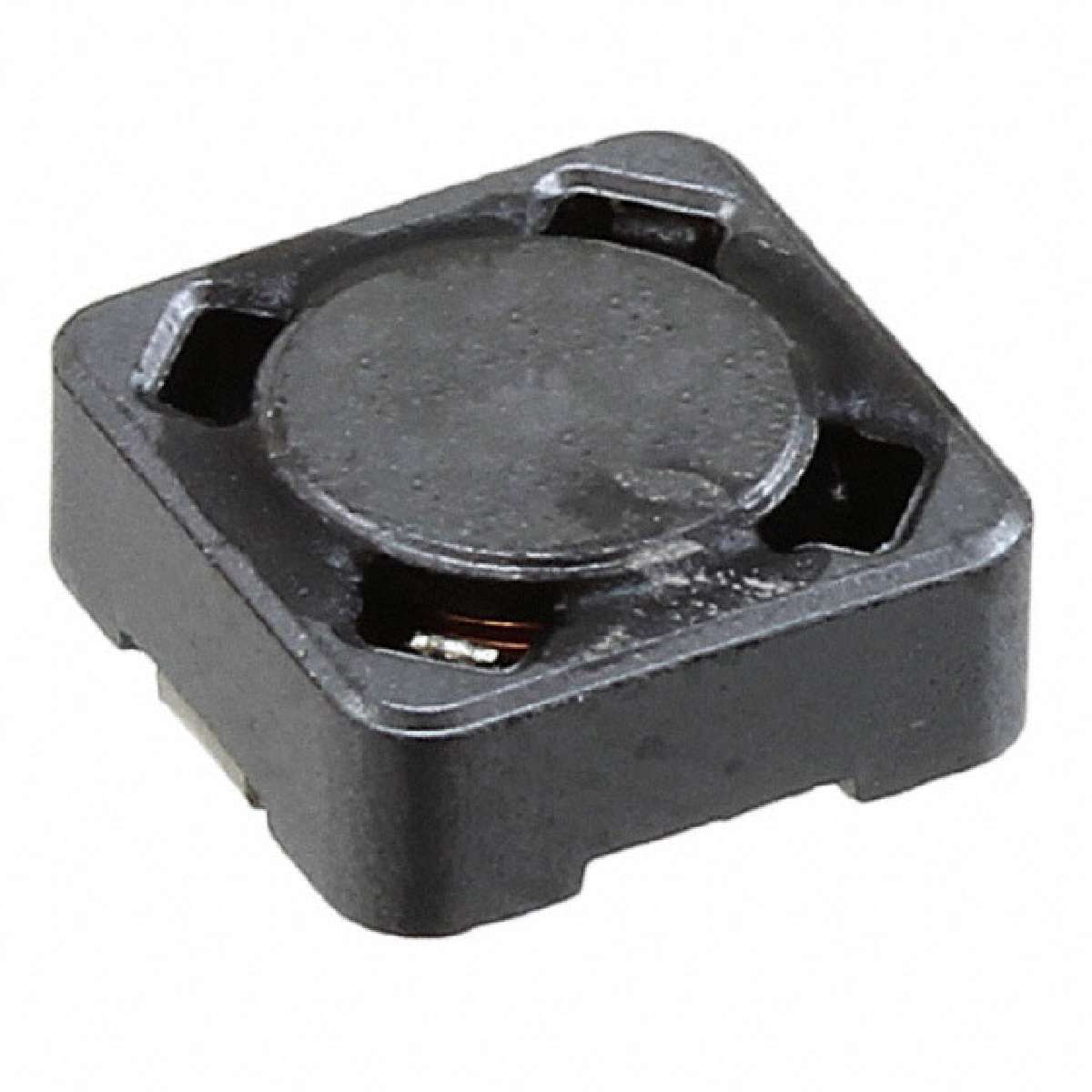

| CDRH73NP-181MC-B | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
FIXED IND 180UH 390MA 1.45 OHM
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | Nonstandard |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Series | CDRH73 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Current Rating | 390mA |
| ECCN | EAR99 |
| Inductance | 180µH |
| Standard Package | 1,000 |
| Packaging | Tape & Reel (TR) |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.45 Ohm Max |
| Frequency - Test | 1kHz |
