| CDRH5D16NP-330MC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

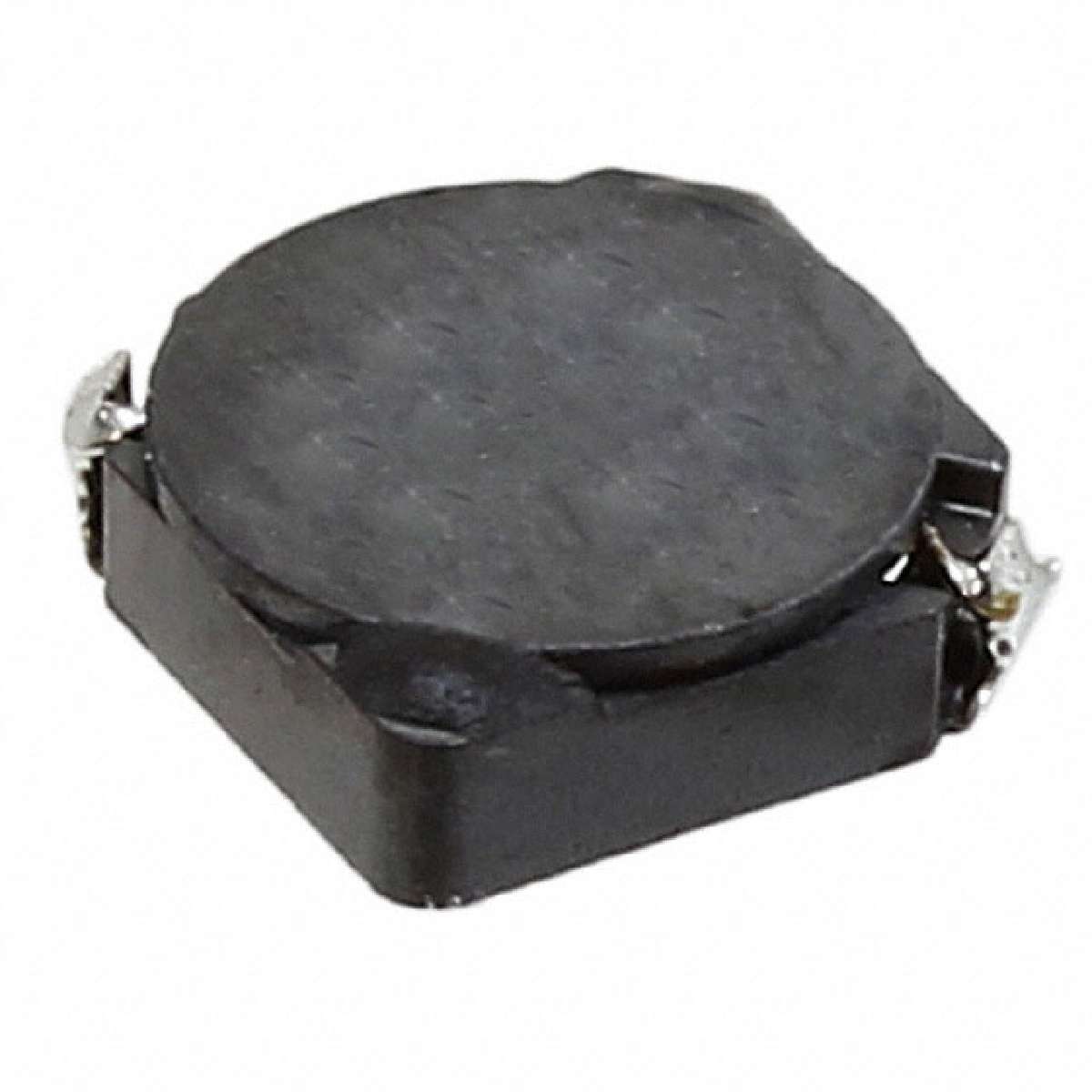

CDRH Series 33 uH 20 % Tolerance 0.8 A Shielded Surface Mount Power Inductor
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | Nonstandard |
| Current - Saturation | 800mA |
| Packaging | Tape & Reel (TR) |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 440 mOhm Max |
| Frequency - Test | 100kHz |
| Inductance | 33µH |
| Standard Package | 1,000 |
| Size / Dimension | 0.220" L x 0.220" W (5.60mm x 5.60mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Series | CDRH5D16 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Current Rating | 700mA |
| ECCN | EAR99 |
