| CDRH4D28NP-121NC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

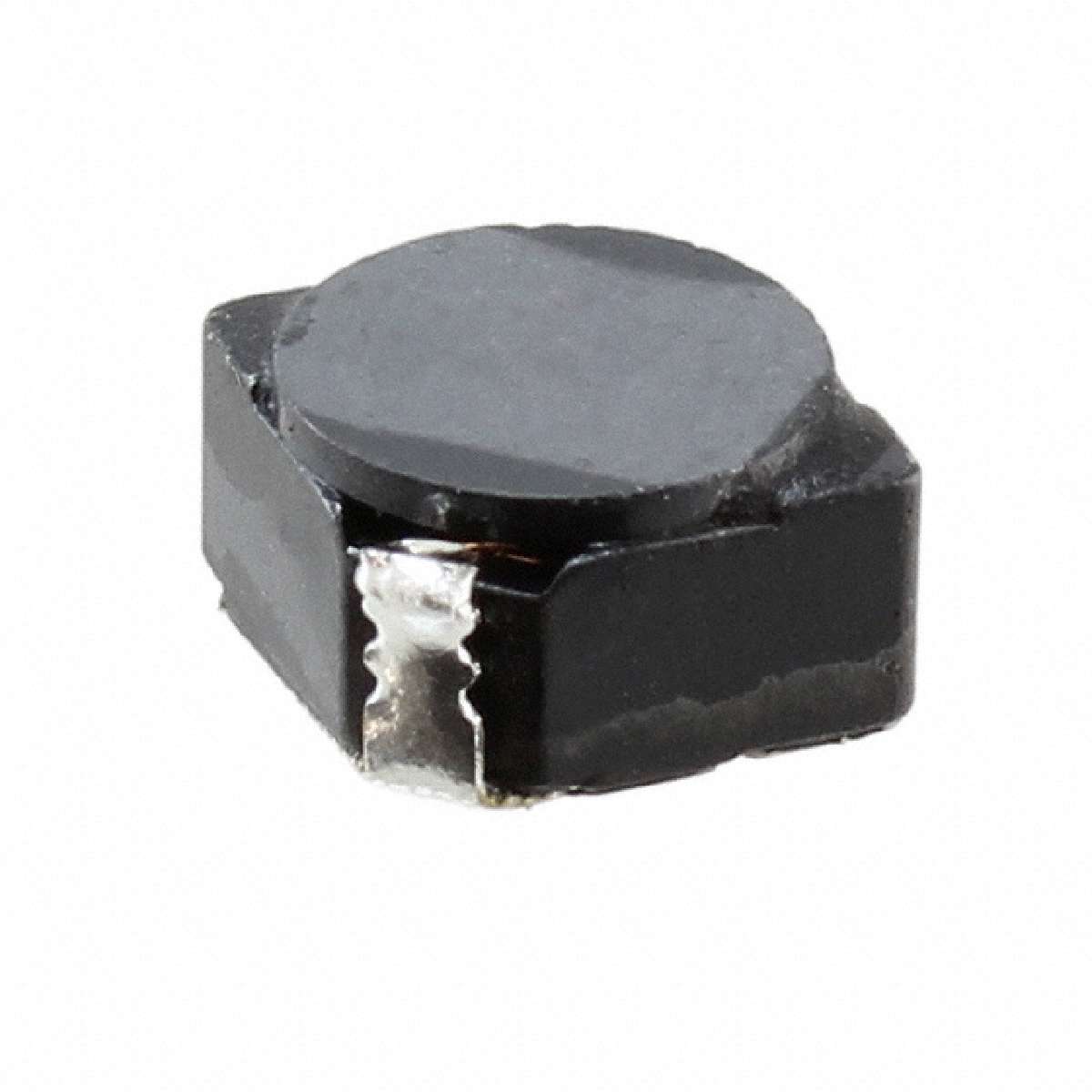

CDRH Series 120 uH 30 % Tolerance 0.27 A Shielded Surface Mount Power Inductor
|
||
| 标准包装：2000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±30% |
|---|---|
| Package / Case | Nonstandard |
| Size / Dimension | 0.185" L x 0.185" W (4.70mm x 4.70mm) |
| Packaging | Tape & Reel (TR) |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.27 Ohm Max |
| Frequency - Test | 100kHz |
| Inductance | 120µH |
| Standard Package | 2,000 |
| Product Training Modules | Power Inductor Basics |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Series | CDRH4D28 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 100°C |
| Current Rating | 270mA |
| ECCN | EAR99 |
