| CDRH3D11HPNP-100NC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

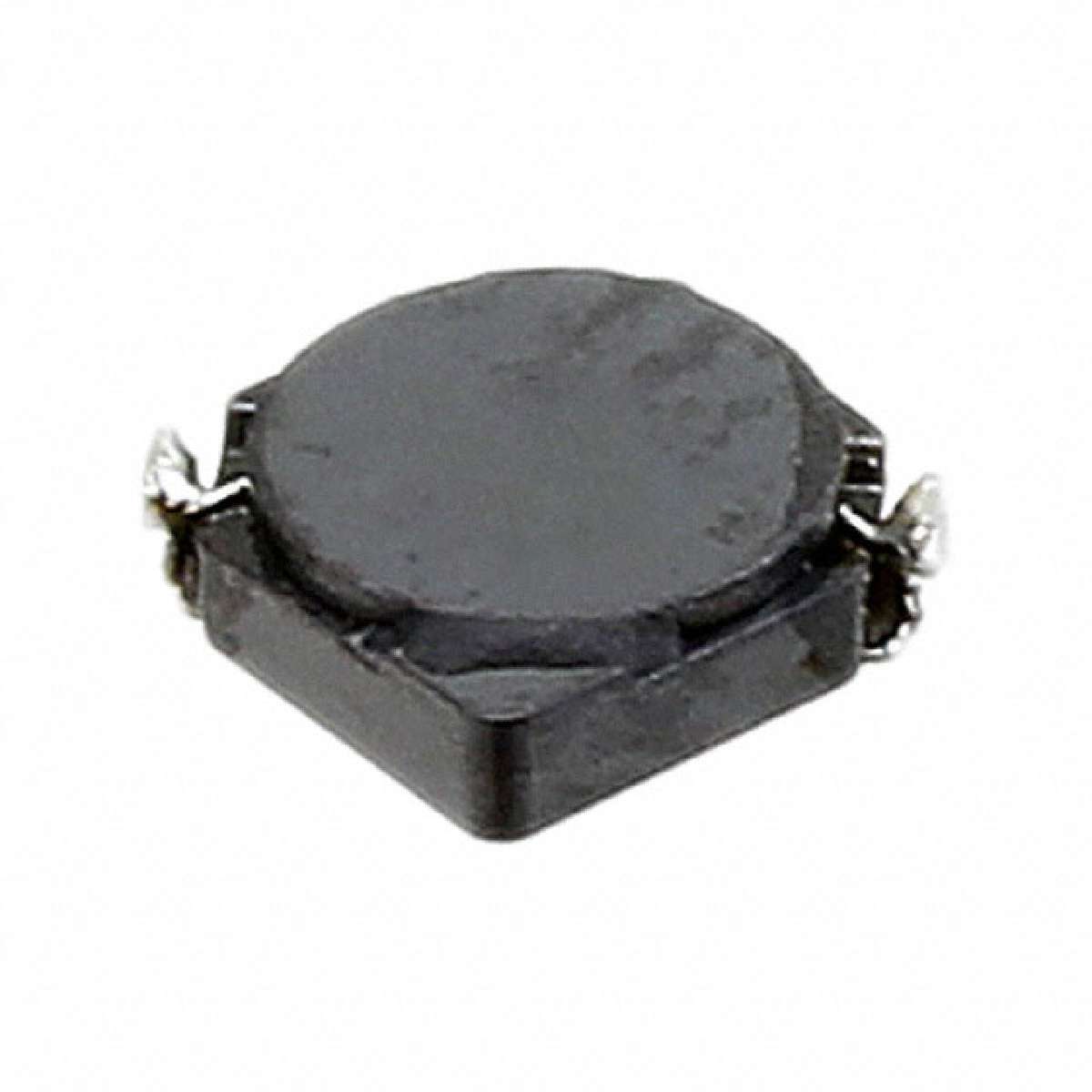

CDRH Series 10 uH 30 % Tolerance 0.8 A Shielded Surface Mount Power Inductor
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | 卤25% |
|---|---|
| Package / Case | Nonstandard |
| Current - Saturation | 800mA |
| Product Training Modules | Power Inductor Basics |
| Online Catalog | CDRH Series |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 413 mOhm Max |
| Frequency - Test | 100kHz |
| Inductance | 10碌H |
| Standard Package | 1 |
| Size / Dimension | 0.150" L x 0.150" W (3.80mm x 3.80mm) |
| Packaging | Digi-Reel庐 |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Series | CDRH3D11/HP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40掳C ~ 105掳C |
| Current Rating | 600mA |
| ECCN | EAR99 |
