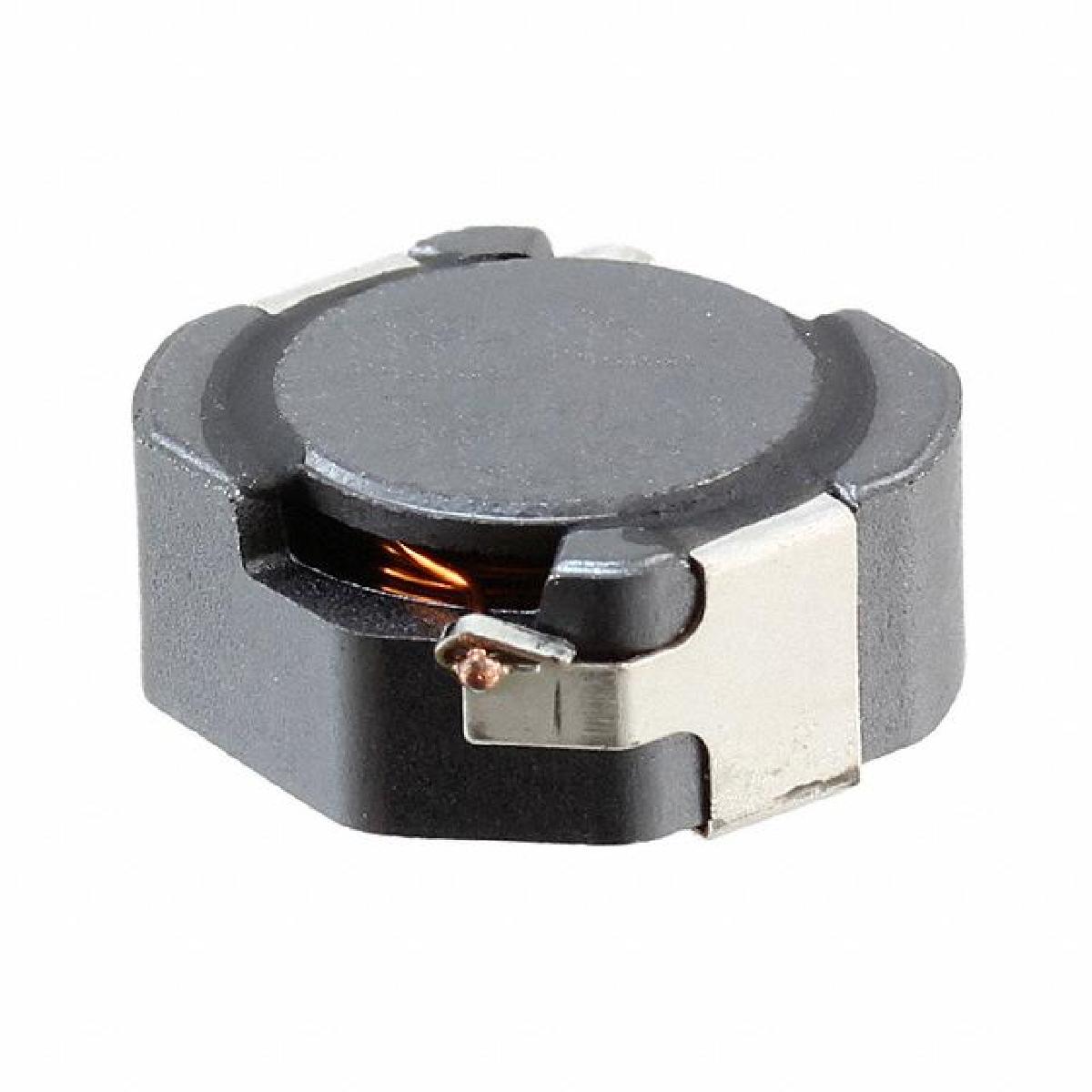

| CDR6D28MNNP-4R5NC | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
FIXED IND 4.5UH 2.4A 57.5 MOHM
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±25% |
|---|---|
| Package / Case | Nonstandard |
| Current - Saturation | 3.55A |
| Packaging | Tape & Reel (TR) |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 57.5 mOhm Max |
| Frequency - Test | 100kHz |
| Inductance | 4.5µH |
| Standard Package | 1,500 |
| Size / Dimension | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Height - Seated (Max) | 0.118" (3.00mm) |
| Series | CDR6D28MN |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 105°C |
| Current Rating | 2.4A |
| ECCN | EAR99 |
