| CDEP147NP-6R1MC-125 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

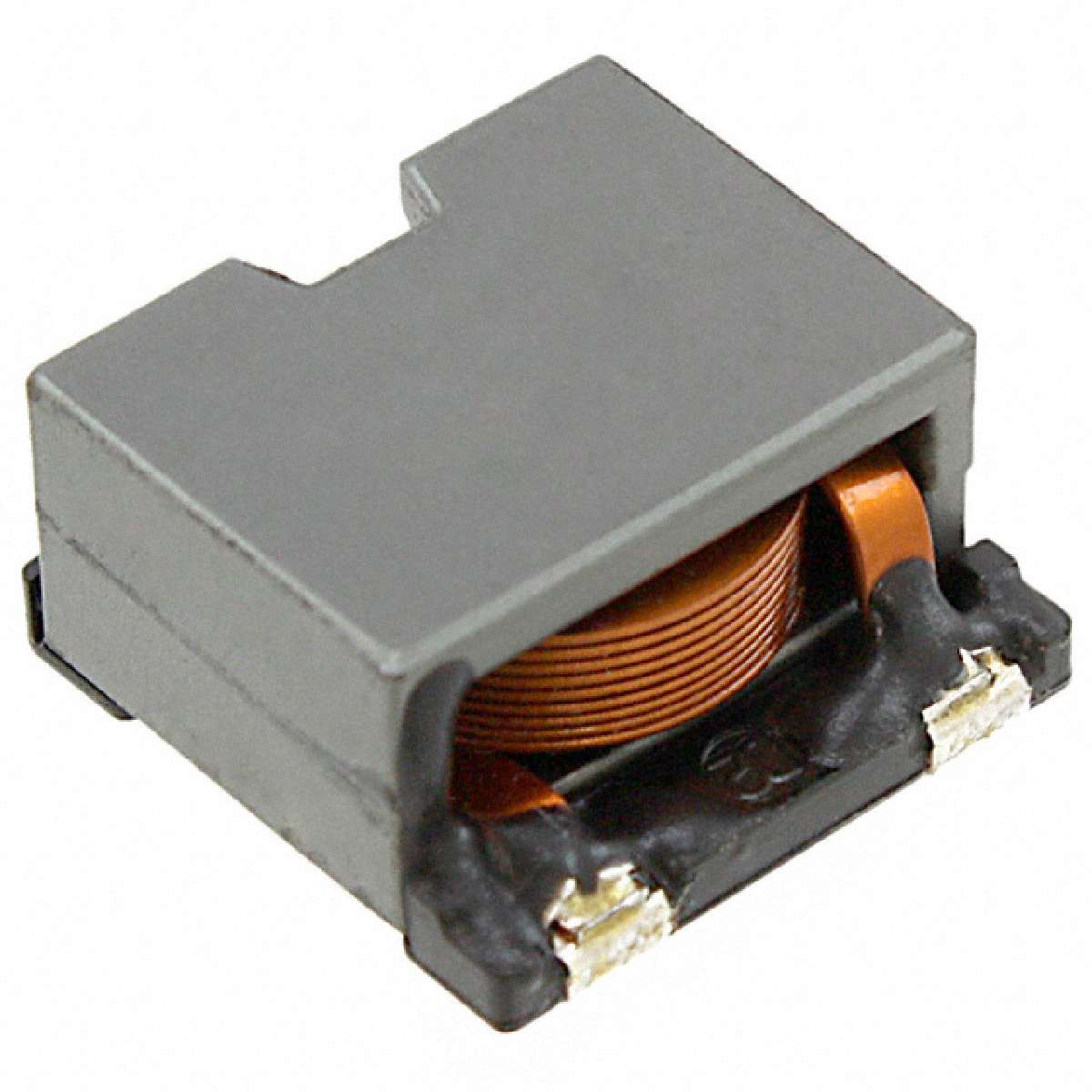

CDEP147 Series 6.1 uH ±20 % 12.5 A Shielded Surface Mount Power Inductor
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | Nonstandard |
| Standard Package | 300 |
| Size / Dimension | 0.571" L x 0.571" W (14.50mm x 14.50mm) |
| Packaging | Tape & Reel (TR) |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 6.03 mOhm Max |
| Frequency - Test | 100kHz |
| Inductance | 6.1µH |
| Type | Wirewound |
| Current - Saturation | 11.6A |
| Product Training Modules | Power Inductor Basics |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Series | CDEP147 |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| Current Rating | 12.5A |
| ECCN | EAR99 |
