| BY228GP-E3/73 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

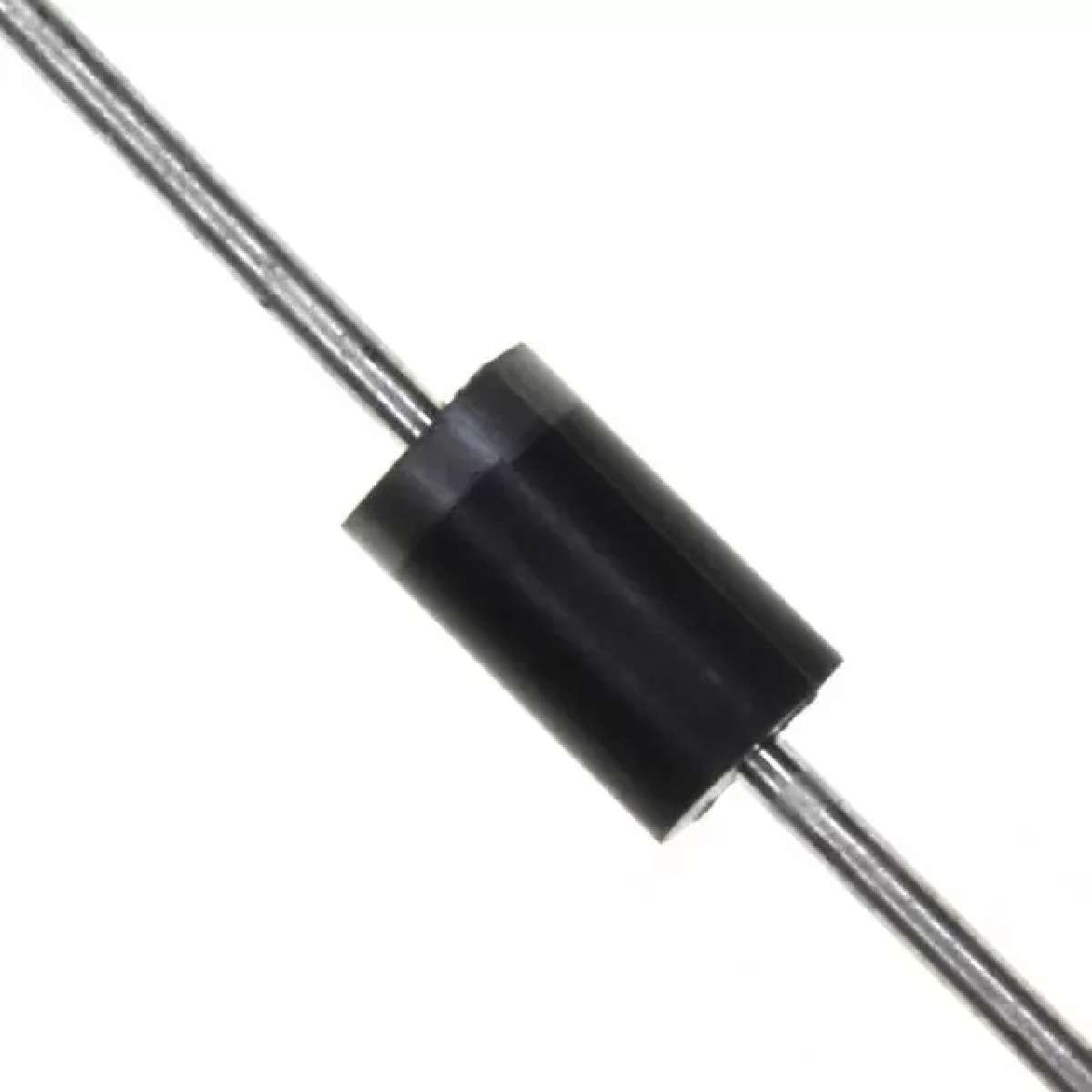

BY228 Series 1650 V 3 A Standard Avalanche Sinterglass Diode - DO-201AD
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | -65°C ~ 150°C |
|---|---|
| Capacitance @ Vr, F | 40pF @ 4V, 1MHz |
| Supplier Device Package | DO-201AD |
| Diode Type | Standard |
| Category | Discrete Semiconductor Products |
| Reverse Recovery Time (trr) | 20µs |
| Series | Automotive, AEC-Q101 |
| Mounting Type | Through Hole |
| Voltage - Forward (Vf) (Max) @ If | 1.6V @ 2.5A |
| ECCN | EAR99 |
| Current - Average Rectified (Io) | 2.5A |
| Package / Case | DO-201AD, Axial |
| Part Status | Active |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Manufacturer | Vishay Semiconductor Diodes Division |
| Current - Reverse Leakage @ Vr | 5µA @ 1500V |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 1500V (1.5kV) |
| Packaging | Tape & Box (TB) |
