| BXRE-50C2000-C-24 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

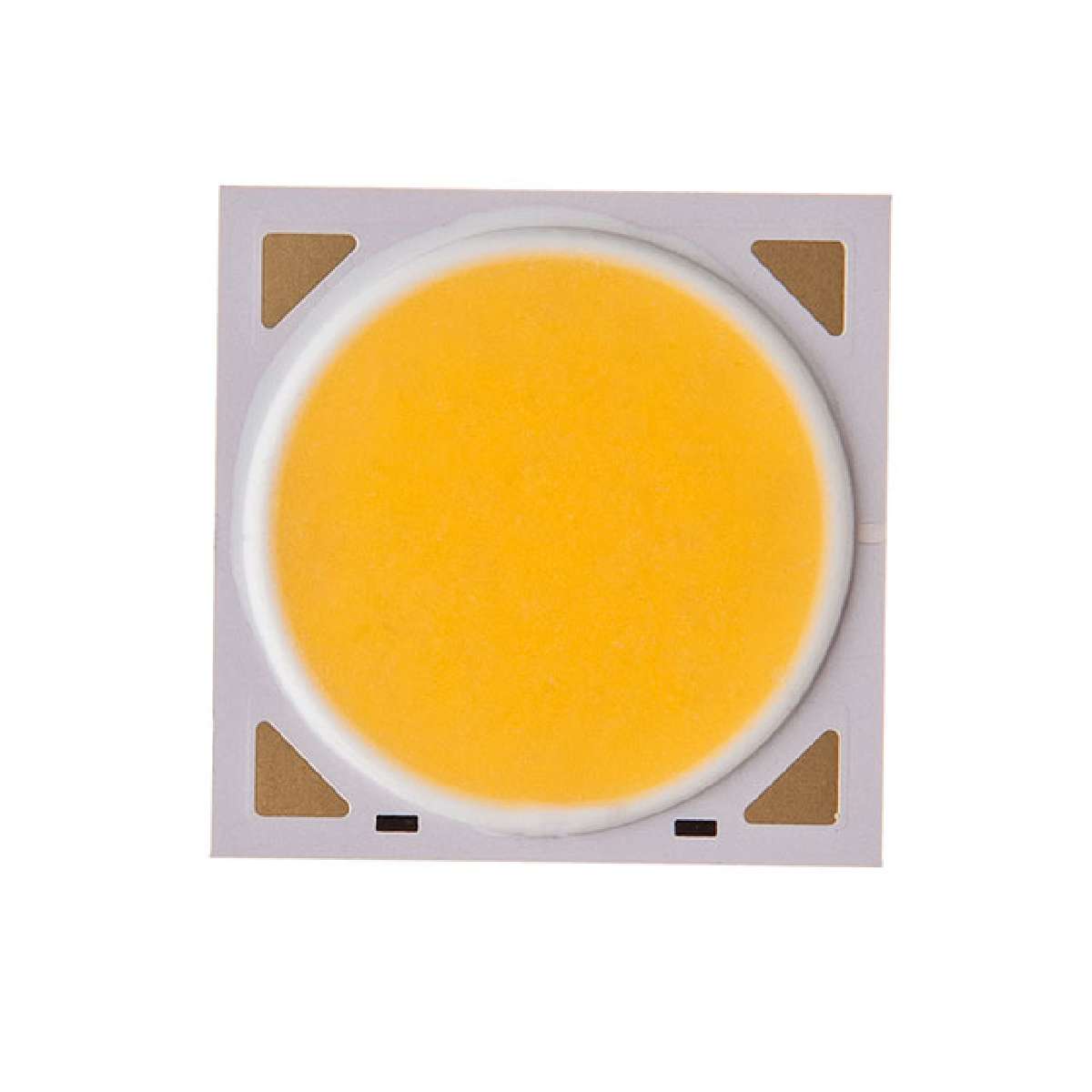

V13 Series 5000K 70 CRI min 2315 lm 32.3 V 4 SDCM Cool White LED Array
|
||
| 标准包装：840 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| CRI (Color Rendering Index) | 70 |
|---|---|
| Viewing Angle | 120° |
| Height | 1.70mm |
| CCT (K) | 5000K 4-Step MacAdam Ellipse |
| Size / Dimension | 15.80mm L x 15.80mm W |
| Light Emitting Surface (LES) | 13.40mm Diameter |
| Manufacturer | Bridgelux |
| Voltage - Forward (Vf) (Typ) | 31.3V |
| Series | V Series™ |
| Family | LED Lighting - COBs, Engines, Modules |
| Lumens/Watt @ Current - Test | 130 lm/W |
| ECCN | EAR99 |
| Lens Type | Flat |
| Type | Chip On Board (COB) |
| Configuration | Square |
| Color | White, Cool |
| Part Status | Active |
| Temperature - Test | 85°C |
| Category | Optoelectronics |
| Current - Test | 500mA |
| Current - Max | 1.05A |
| Flux @ Current/Temperature - Test | 2037 lm (Typ) |
| Packaging | Tray |
