| BXRC-30A4001-F-23 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

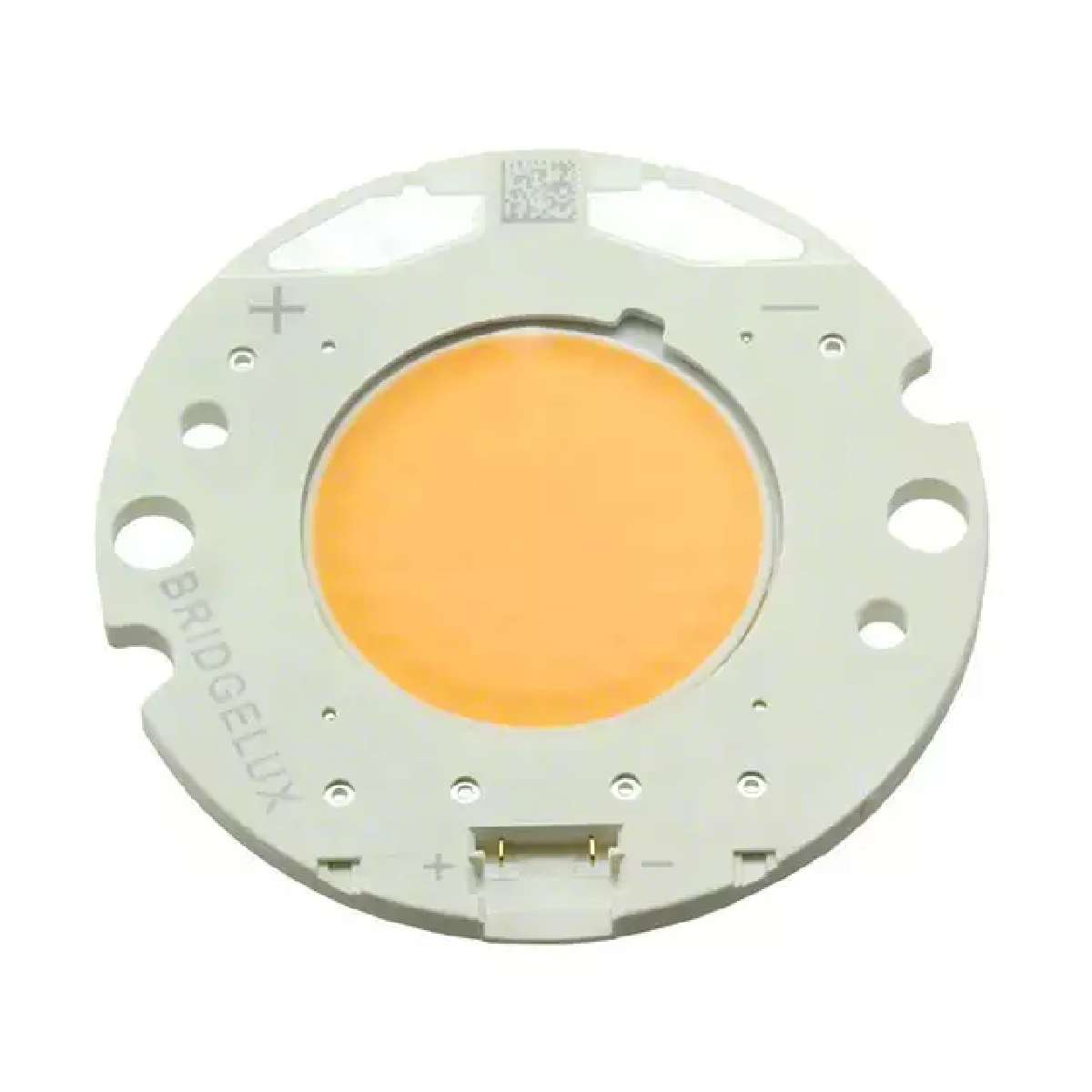

Décor Class A Vero 18 LES CoB Array 3000K 93 CRI typ 2897 lm 29.5 V 3 SDCM
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Type | Flat |
|---|---|
| Type | Chip On Board (COB) |
| Configuration | Round |
| Color | White, Warm |
| Size / Dimension | 36.20mm Diameter |
| Light Emitting Surface (LES) | 18.40mm Diameter |
| Manufacturer | Bridgelux |
| Series | Vero® 18 Array |
| Packaging | Tray |
| Viewing Angle | 120° |
| Height | 1.90mm |
| CCT (K) | 3000K 3-Step MacAdam Ellipse |
| Features | With Connector |
| Part Status | Active |
| Temperature - Test | 85°C |
| Category | Optoelectronics |
| Family | LED Lighting - COBs, Engines, Modules |
| ECCN | EAR99 |
