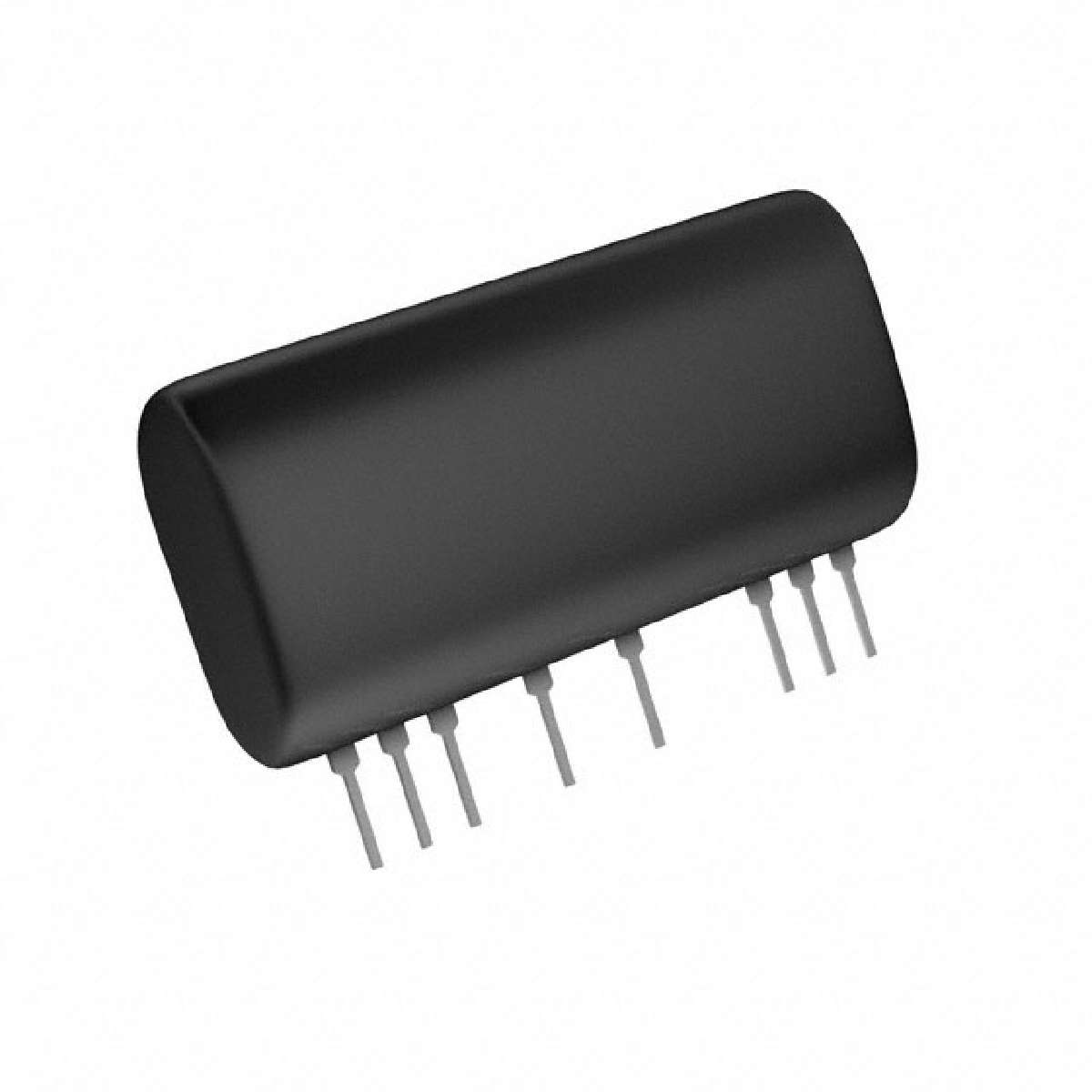

| BP5226-18 | ||
|---|---|---|
|
||
|
||
| 产品描述：
IC REG BUCK 18V 0.5A 12SIP
|
||
| 标准包装：150 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Outputs | 1 |
|---|---|
| Voltage - Input | 20 V ~ 46 V |
| PCN Obsolescence/ EOL | BP5226-18 Power Module Obs 21/Apr/2015 |
| Synchronous Rectifier | No |
| Standard Package | 150 |
| Packaging | Tray |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Operating Temperature | -20°C ~ 80°C |
| Voltage - Output 1 | 18V |
| Size / Dimension | 1.34\" L x 0.32\" W x 0.69\" H (34.0mm x 8.1mm x 17.4mm) |
| Voltage - Input (Min) | 20V |
| Packaging | Bulk |
| Features | Remote On/Off |
| Base Part Number | BP5226-18 |
| Package / Case | 12-SIP (8 Leads) |
| Type | Non-Isolated PoL Module |
| Supplier Device Package | * |
| Current - Output | 500mA |
| Voltage - Output | 18V |
| Output Type | Fixed |
| Mounting Type | Through Hole |
| Applications | ITE (Commercial) |
| Categories | Power Supplies - Board Mount -> DC DC Converters |
| Current - Output (Max) | 500mA |
| Manufacturer | Rohm Semiconductor |
| Lead Free Status / RoHS Status | 1 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| 数据手册： |
|---|
