| AEU65-480 | ||
|---|---|---|
|
|
||
|
||

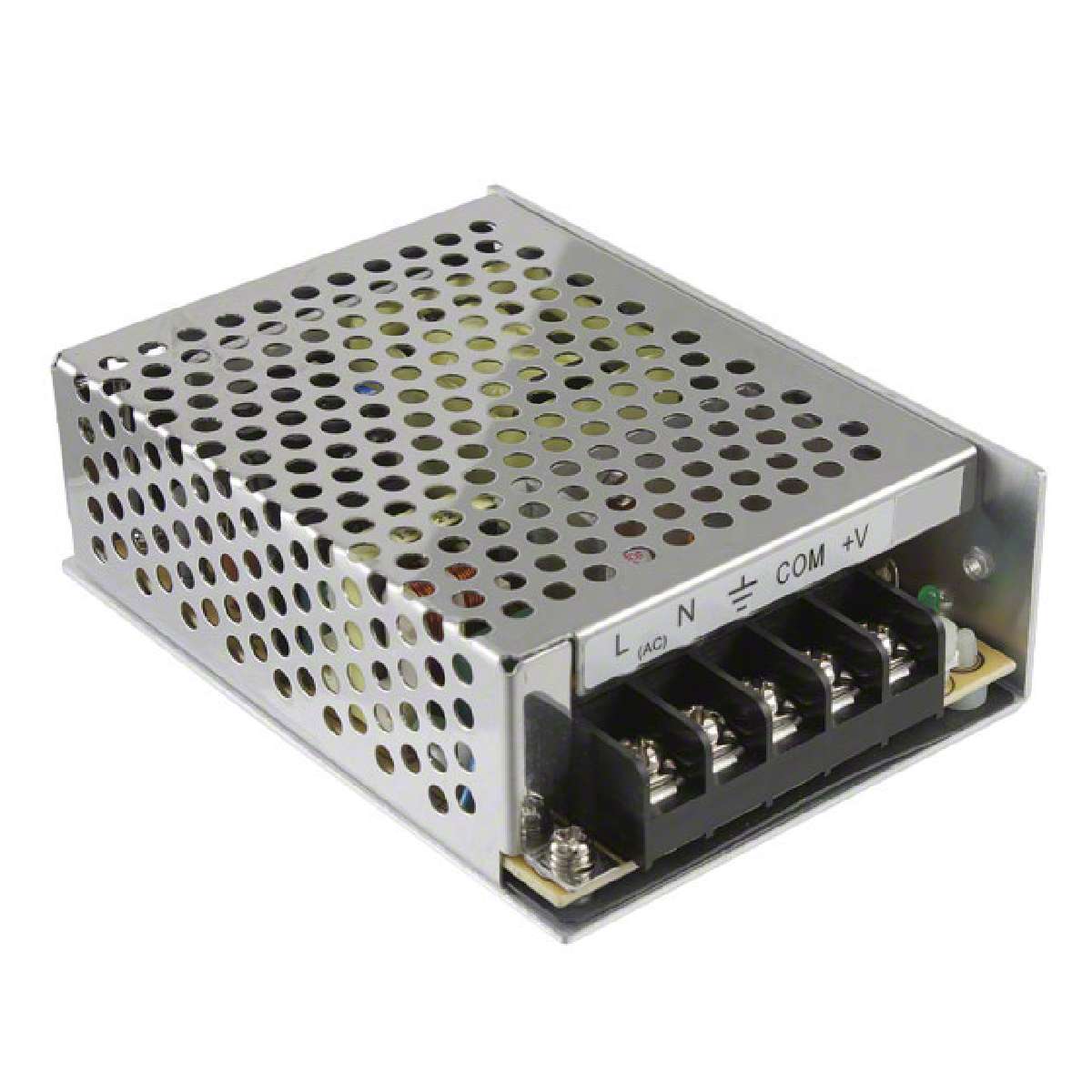

| Product description : AEU65-480 Series 65 W 90-264 Vac Single Output 48 V Enclosed AC/DC Power Supply | ||
| SPQ：80 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 3kV (3000V) |
|---|---|
| Voltage - Input | 90 ~ 264 VAC |
| Current - Output (Max) | 1.35A |
| Features | Adjustable Output, DC Input Capable, Universal Input |
| Part Status | Active |
| Efficiency | 81% |
| Voltage - Output 1 | 48V |
| Power (Watts) | 65W |
| Applications | ITE (Commercial) |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| ECCN | EAR99 |
| Number of Outputs | 1 |
| Type | Enclosed |
| Approvals | CB, CE, TUV, UR |
| Size / Dimension | 4.33" L x 3.07" W x 1.38" H (110.0mm x 78.0mm x 35.0mm) |
| Category | Power Supplies - External/Internal (Off-Board) |
| Manufacturer | Triad Magnetics |
| Series | AEU65 |
| Family | AC DC Converters |
| Mounting Type | Chassis Mount |
| Power (Watts) - Max | 65W |
