AWSP150-12 specifications -Ameya360 electronic components purchase network


AWSP150-12

ACTIVE EAR99

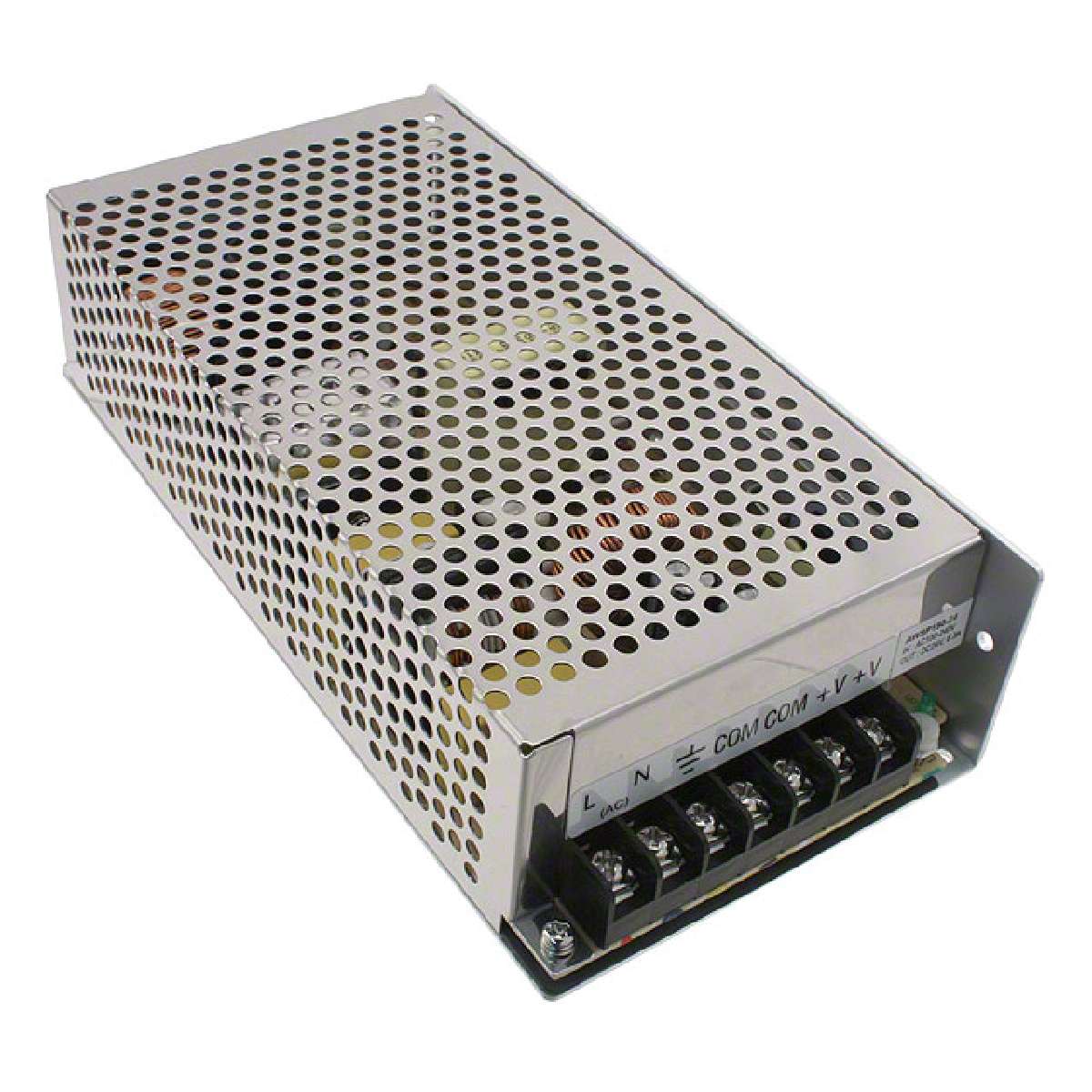

Product description : 150 W Single Output 12 VDC AC/DC Switch Mode Power Supply
SPQ：20
Datasheet : AWSP150-12.pdf

Voltage - Isolation	3kV (3000V)
Type	Enclosed
Approvals	TUV, UR
Size / Dimension	7.83" L x 3.86" W x 1.97" H (199.0mm x 98.0mm x 50.0mm)
Power (Watts)	150W
Applications	ITE (Commercial)
Voltage - Input	88 ~ 264 VAC
Features	Adjustable Output, Universal Input
Voltage - Output 1	12V
Family	AC DC Converters
ECCN	EAR99
Number of Outputs	1
Current - Output (Max)	12.5A
Minimum Load Required	No
Efficiency	80%
Mounting Type	Chassis Mount
Power (Watts) - Max	150W
Standard Package	20
Online Catalog	AWSP150 Series
Series	AWSP150
Operating Temperature	-10°C ~ 60°C (With Derating)

Datasheet： AWSP150-12.pdf

You can comment after logging in.

Please inform us of the error for improving our site and products.

Stock code :	2186357
Mfg name :	Triad Magnetics
MPN :	AWSP150-12
Product description :	150 W Single Output 12 VDC AC/DC Switch Mode Power Supply
