ALS75-12 specifications -Ameya360 electronic components purchase network


ALS75-12

ACTIVE EAR99

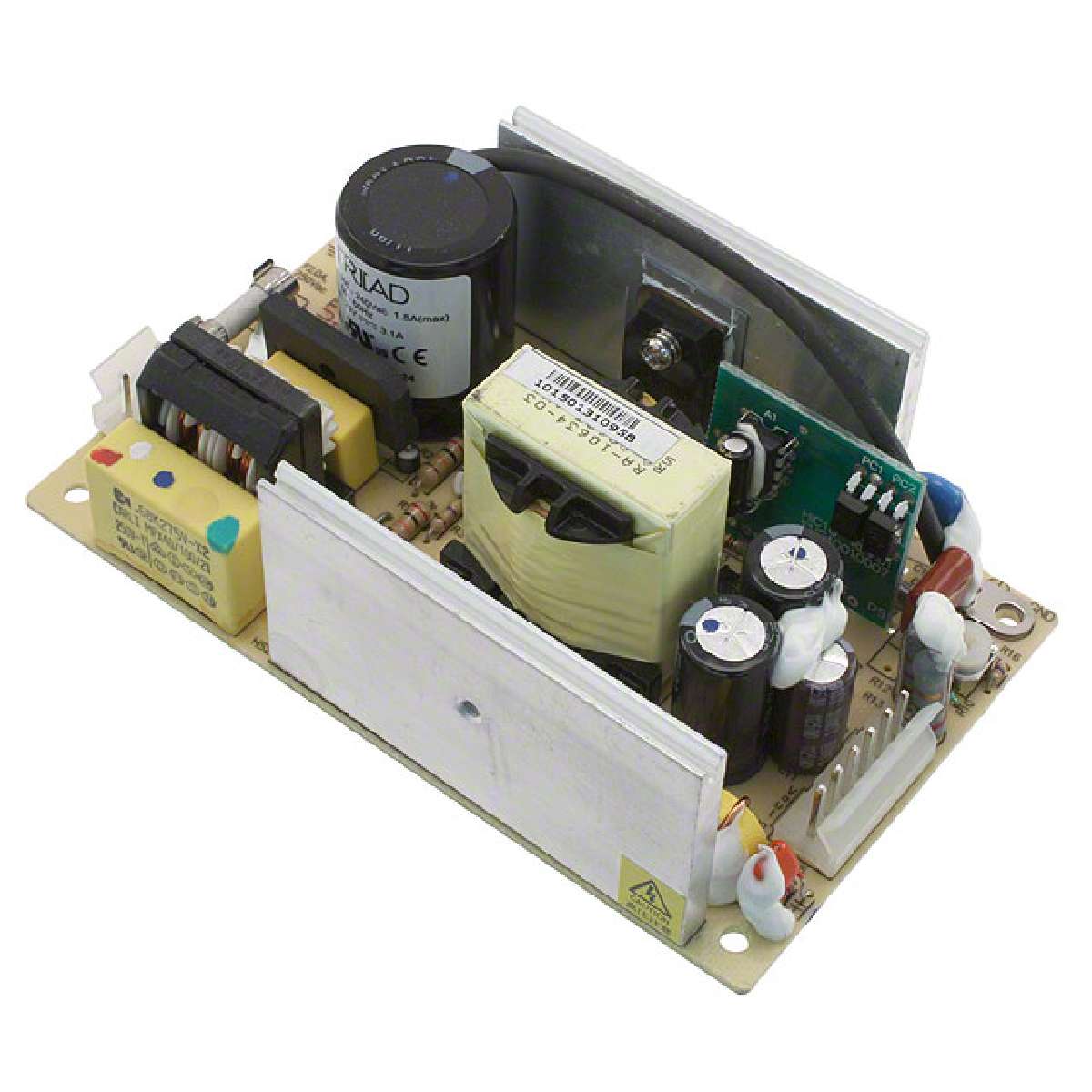

Product description : 75W 12V 6.2A Switching Power Supplies
SPQ：30
Datasheet : ALS75-12.pdf

Voltage - Isolation	3kV (3000V)
Voltage - Input	90 ~ 260 VAC
Current - Output (Max)	6.2A
Features	Adjustable Output, DC Input Capable, Universal Input
Part Status	Active
Category	Power Supplies - External/Internal (Off-Board)
Manufacturer	Triad Magnetics
Series	ALS75
Family	AC DC Converters
Mounting Type	Chassis Mount
Power (Watts) - Max	75W
Number of Outputs	1
Type	Open Frame
Approvals	TUV, UR
Size / Dimension	5.00" L x 3.00" W x 1.65" H (127.0mm x 76.2mm x 42.0mm)
Minimum Load Required	No
Efficiency	70%
Voltage - Output 1	12V
Power (Watts)	75W
Applications	ITE (Commercial)
Operating Temperature	0°C ~ 55°C (With Derating)
ECCN	EAR99

Datasheet： ALS75-12.pdf
