| APXE160ARA331MJA0G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

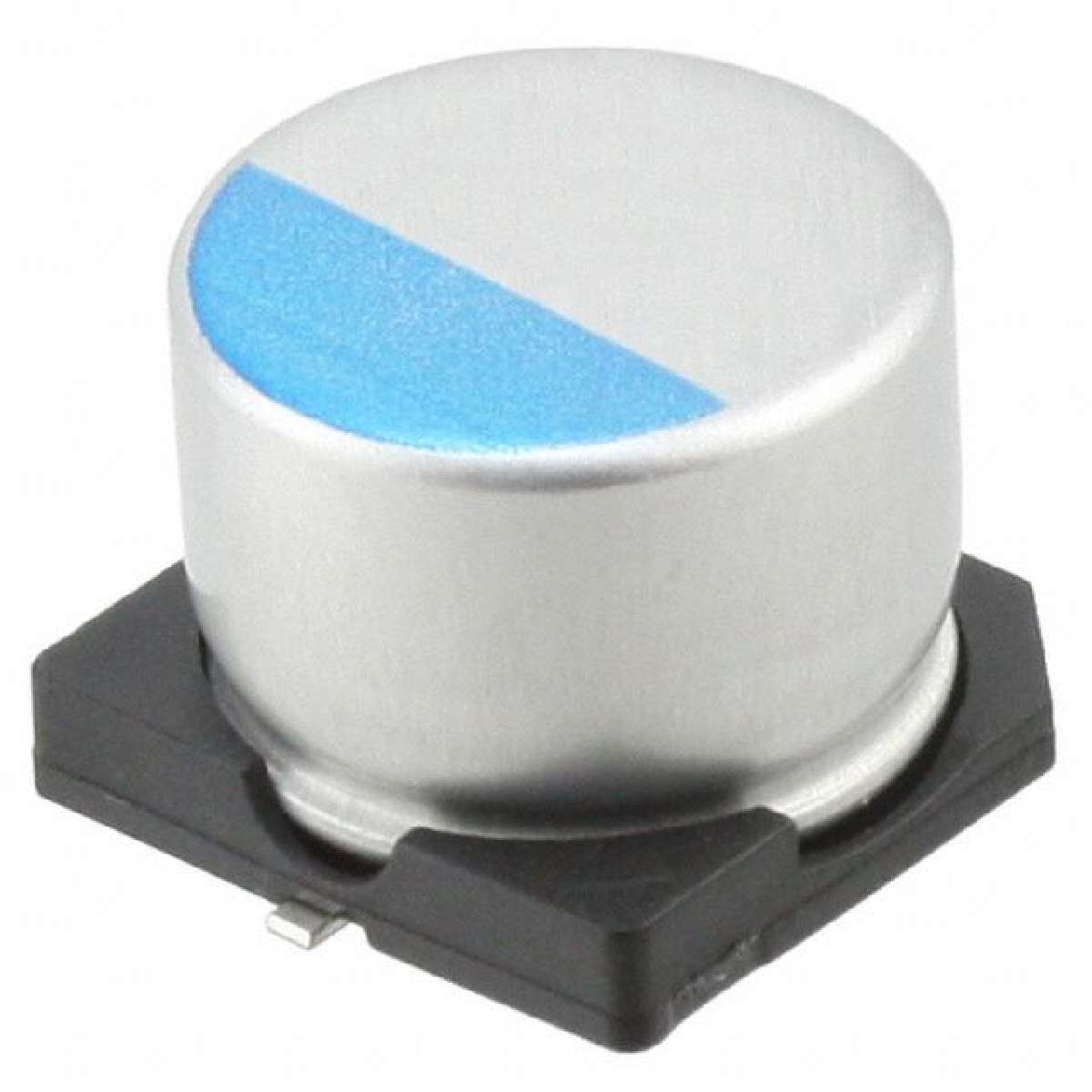

PXE Series 16 V 330 uF 105°C 10x10mm SMT Polymer Aluminum Electrolytic Capacitor
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 16V |
|---|---|
| Package / Case | Radial, Can - SMD |
| Capacitance | 330µF |
| ESR (Equivalent Series Resistance) | 16 mOhm |
| Packaging | Tape & Reel (TR) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Series | NPCAP™-PXE |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Type | Polymer |
| Standard Package | 500 |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Ripple Current | 4.35A |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Family | Aluminum - Polymer Capacitors |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 105°C |
