| APXC6R3ARA221MH70G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

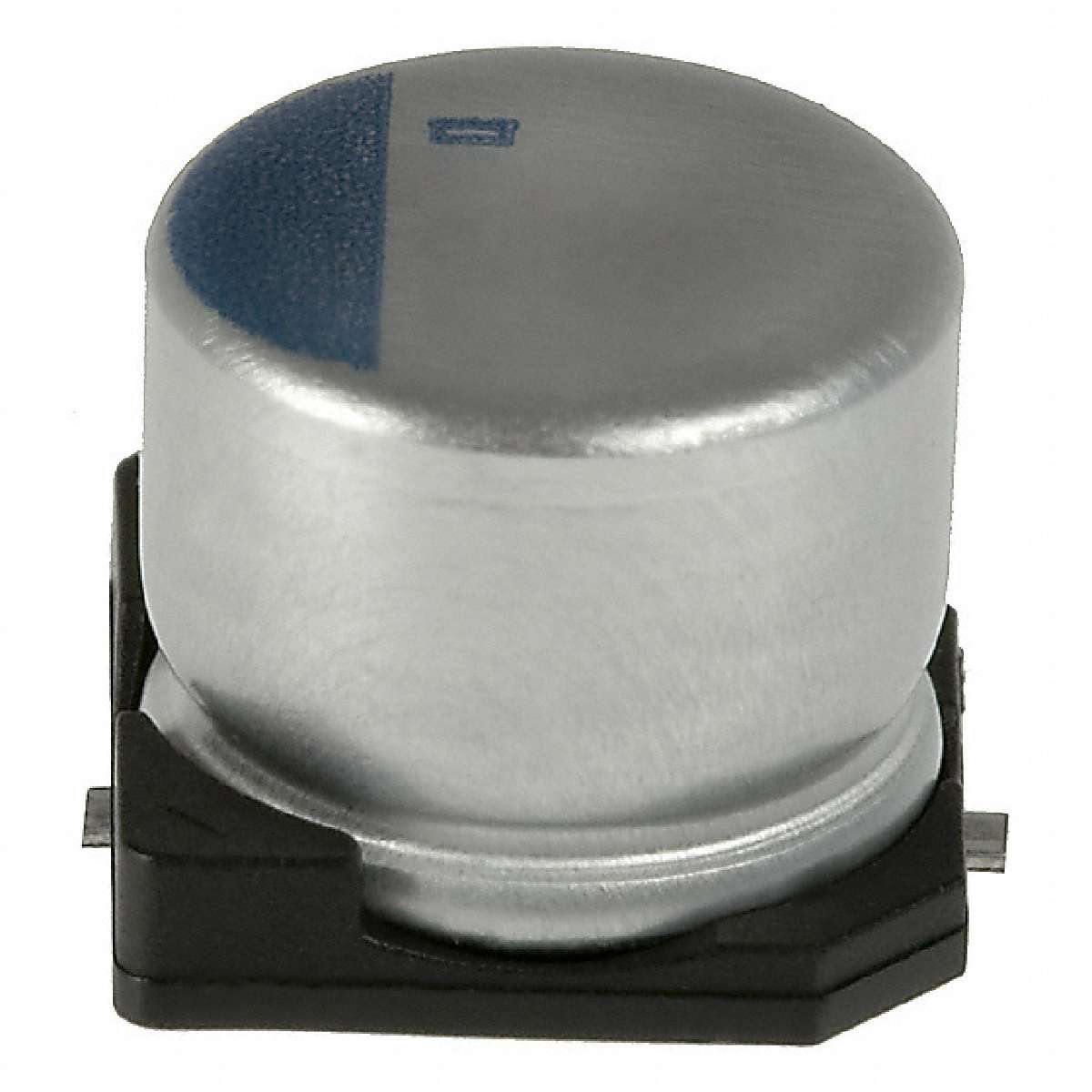

PXC Series Ø 8 x 6.7 mm 6.3 V 220 uF Conductive Polymer Aluminum Capacitor
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage Rating | 6.3V |
|---|---|
| Type | Polymer |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Package / Case | Radial, Can - SMD |
| Capacitance | 220µF |
| Standard Package | 1,000 |
| Ripple Current | 3.3A |
| Series | NPCAP™-PXC |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| ECCN | EAR99 |
| Tolerance | ±20% |
| Product Training Modules | PX/PS Conductive Polymer Capacitors |
| Height - Seated (Max) | 0.264" (6.70mm) |
| Mounting Type | Surface Mount |
| Catalog Drawings | H70 Bottom H70 Side_8 x 6.7 |
| ESR (Equivalent Series Resistance) | 18 mOhm |
| Packaging | Tape & Reel (TR) |
| Online Catalog | NPCAP™ PXC Series |
| Family | Aluminum - Polymer Capacitors |
| Operating Temperature | -55°C ~ 105°C |
