| ANT-916-USP | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

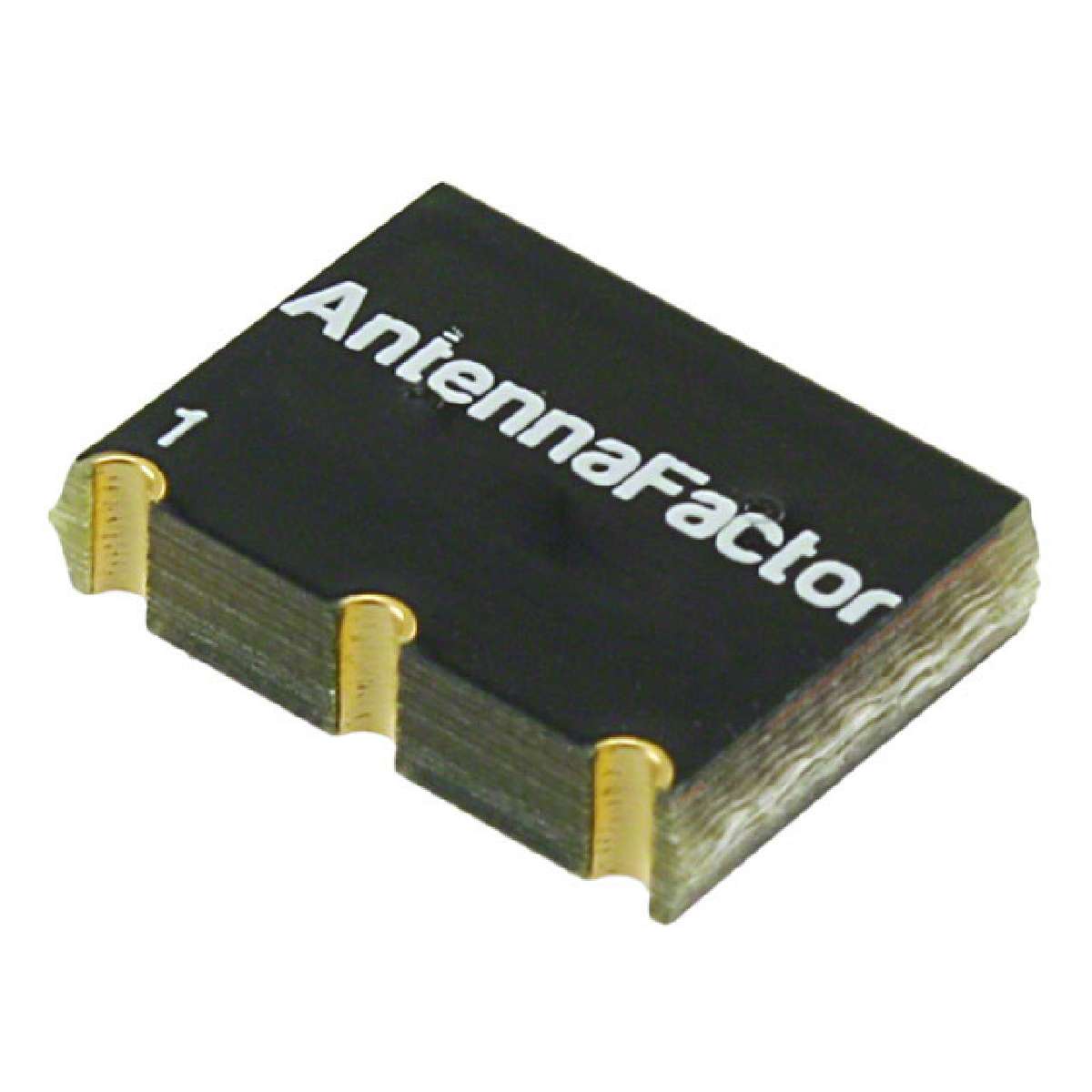

916 MHz 1/4 Wave 0.3 dBi SMT MicroSplatch Planar Antenna
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | Solder |
|---|---|
| Gain | 0.3dBi |
| Antenna Type | Chip |
| Part Status | Active |
| Category | RF/IF and RFID |
| Series | µSplatch™ |
| Mounting Type | Surface Mount |
| Frequency Range | 904MHz ~ 928MHz |
| ECCN | EAR99 |
| VSWR | 2 |
| Number of Bands | 1 |
| Frequency Group | UHF (300 MHz ~ 1 GHz) |
| Frequency (Center/Band) | 916MHz |
| Manufacturer | Linx Technologies Inc. |
| Family | RF Antennas |
| Height (Max) | 0.100" (2.54mm) |
| Packaging | Tube |
