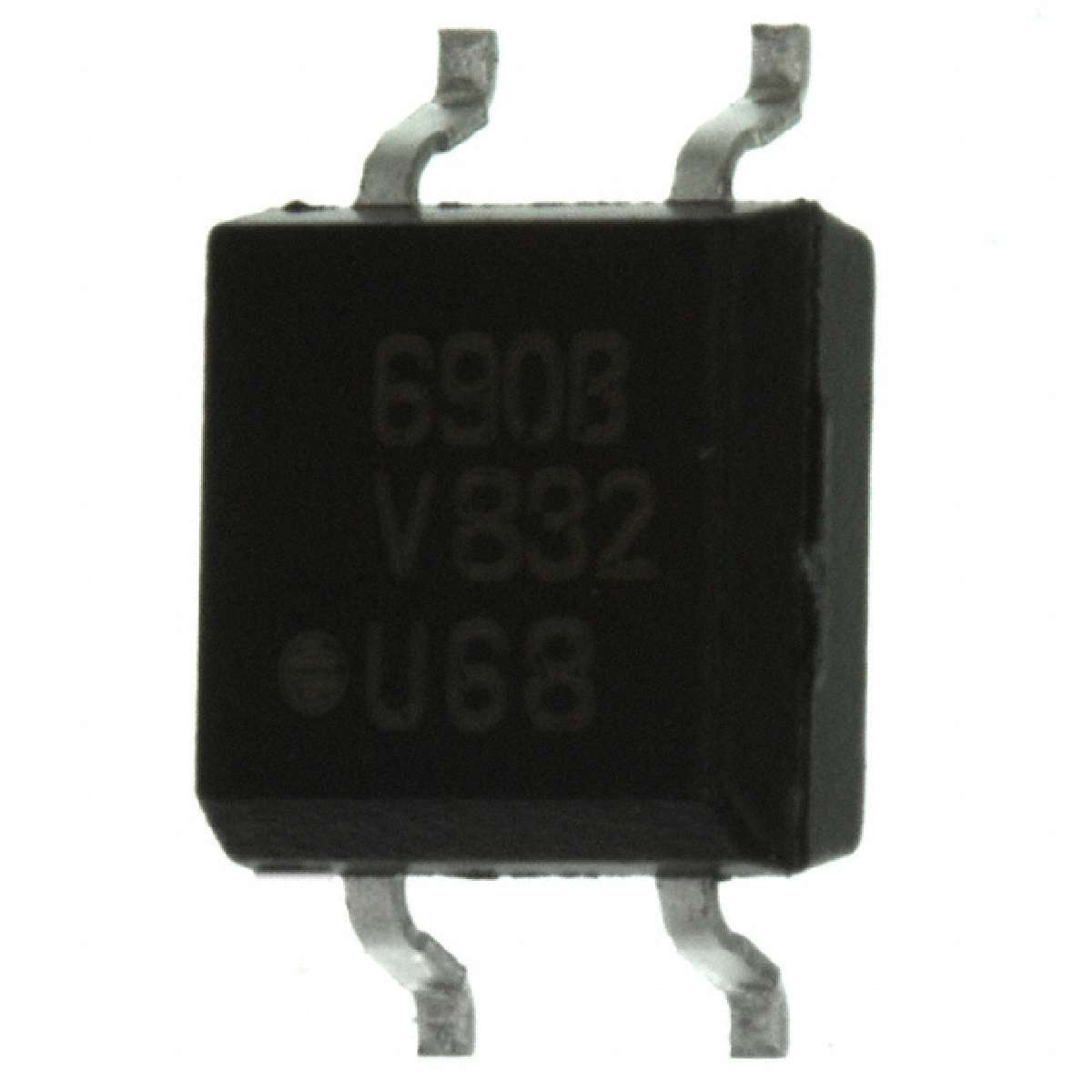

| SFH690BT | ||
|---|---|---|
|
|
||
|
||
| Product description : SFH690BT Series Single Channel 70 V 3750 Vrms Phototransistor Optocoupler SOP-4 | ||
| SPQ：2000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Maximum Collector Emitter Saturation Voltage: | 0.3 V |
|---|---|
| Width: | 4.83 mm |
| Isolation Voltage: | 3750 Vrms |
| Pd - Power Dissipation: | 150 mW |
| Package / Case: | SOP-4 |
| Configuration: | 1 Channel |
| Vf - Forward Voltage: | 1.4 V |
| Number of Channels: | 1 Channel |
| If - Forward Current: | 50 mA |
| Output Type: | NPN Phototransistor |
| Factory Pack Quantity: | 2000 |
| RoHS: | Details |
| Maximum Operating Temperature: | + 100 C |
| Packaging: | Reel |
| Maximum Collector Emitter Voltage: | 70 V |
| Minimum Operating Temperature: | - 55 C |
| Current Transfer Ratio: | 300 % |
| Height: | 2.03 mm |
| Mounting Style: | SMD/SMT |
| Maximum Collector Current: | 100 mA |
| Length: | 4.67 mm |
| Manufacturer: | Vishay |
| Vr - Reverse Voltage: | 6 V |
| Brand: | Vishay Semiconductors |
| Product Category: | Transistor Output Optocouplers |
| ECCN | EAR99 |
