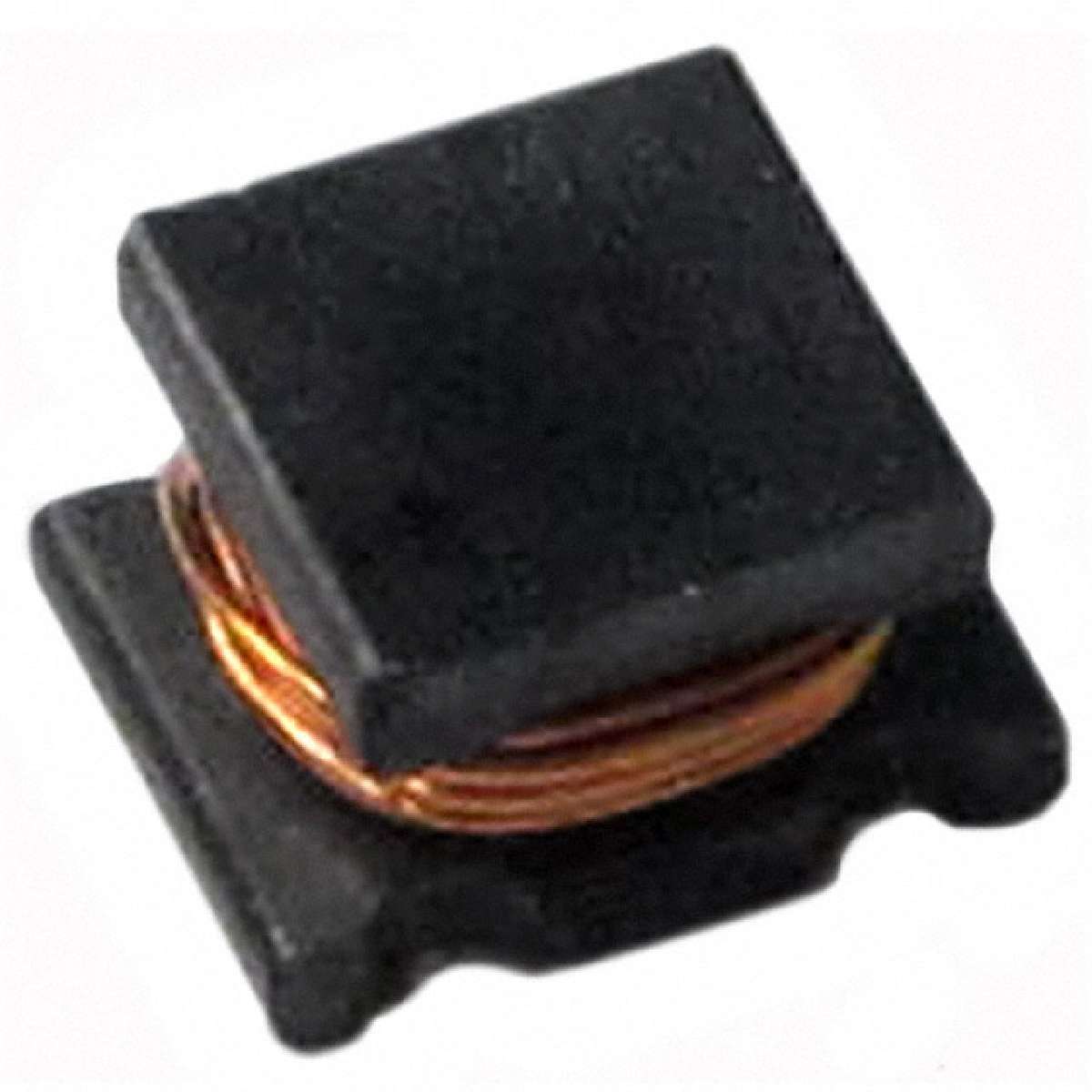

| AISC-1812H-101K-T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
FIXED IND 100UH 190MA 2.96 OHM
|
||
| 标准包装：500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±10% |
|---|---|
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Standard Package | 500 |
| Packaging | Tape & Reel (TR) |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| RoHS Information | RoHS2/REACH Compliance |
| Operating Temperature | -25°C ~ 85°C |
| DC Resistance (DCR) | 2.96 Ohm Max |
| Frequency - Test | 100kHz |
| Inductance | 100µH |
| Type | Wirewound |
| Frequency - Self Resonant | 6.8MHz |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.110" (2.80mm) |
| Series | AISC-1812H |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| 3D Model | AISC-1812H.pdf AISC-1812H.stp |
| Current Rating | 190mA |
| ECCN | ECL99 |
