AFB0612HHB specifications -Ameya360 electronic components purchase network


AFB0612HHB

ACTIVE EAR99

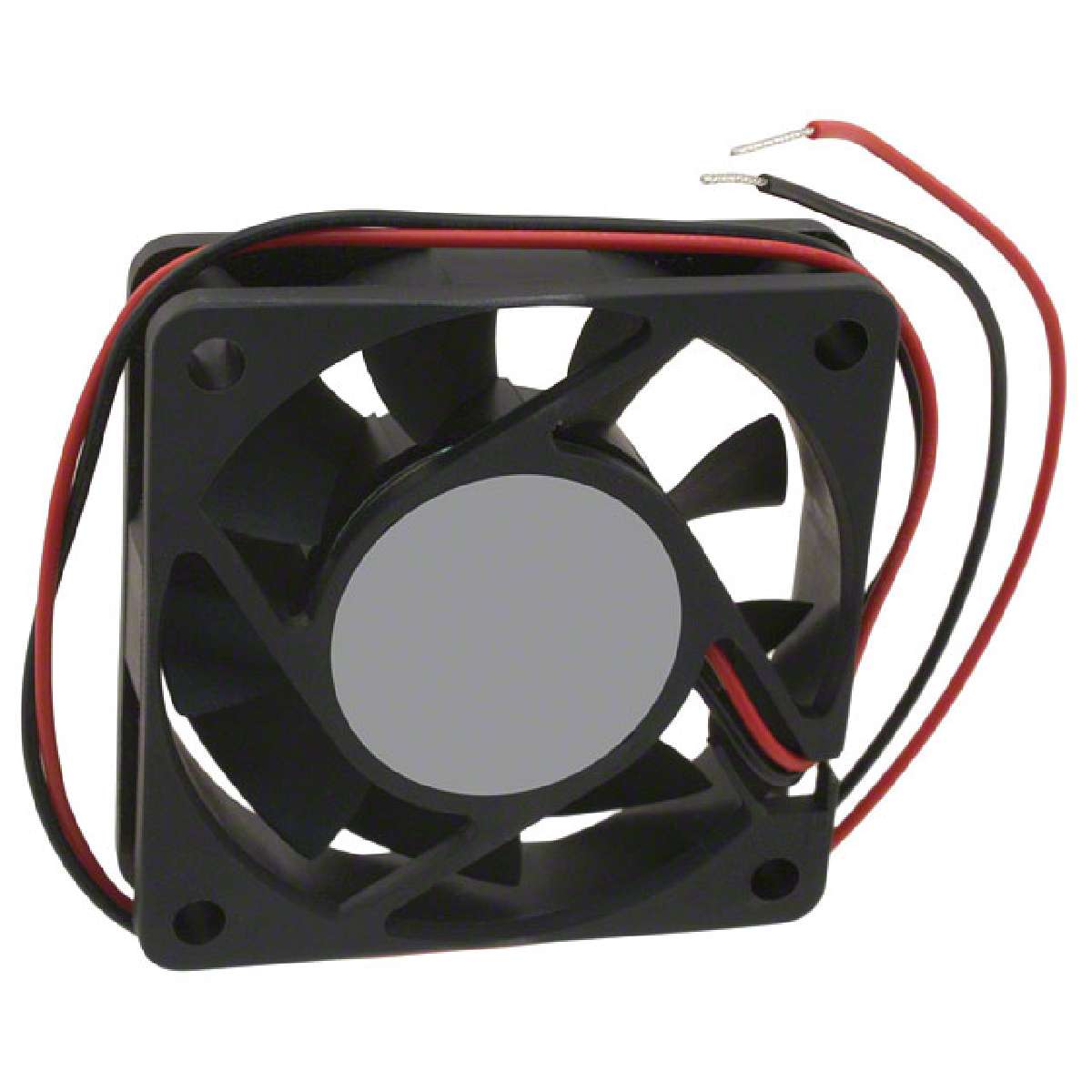

Product description : AFB Series 60 x 60 x 15mm 12 VDC 17.3 CFM 4500 RPM Ball Bearing Axial Fan
SPQ：210
Datasheet : AFB0612HHB.pdf

Product Training Modules	Fan Options
Other Related Documents	Part Number Break-Down and Other Notes
Air Flow	17.3 CFM (0.490m³/min)
Power (Watts)	1.44W
Fan Type	Tubeaxial
Static Pressure	0.195 in H2O (48.6 Pa)
Standard Package	210
Voltage - Rated	12VDC
Series	AFB
RPM	4500 RPM
Current Rating	0.120A
Size / Dimension	Square - 60mm L x 60mm H x 15mm W
Material - Frame	Plastic
Weight	0.097 lb (44g)
Bearing Type	Ball
Termination	2 Wire Leads
Material - Blade	Plastic
Voltage Range	7 ~ 13.8VDC
Noise	35 dB(A)
Family	DC Fans
RoHS Information	DC Fans RoHS Cert of Compliance
ECCN	EAR99

Datasheet： AFB0612HHB.pdf
