FDMC8588 specifications -Ameya360 electronic components purchase network


FDMC8588

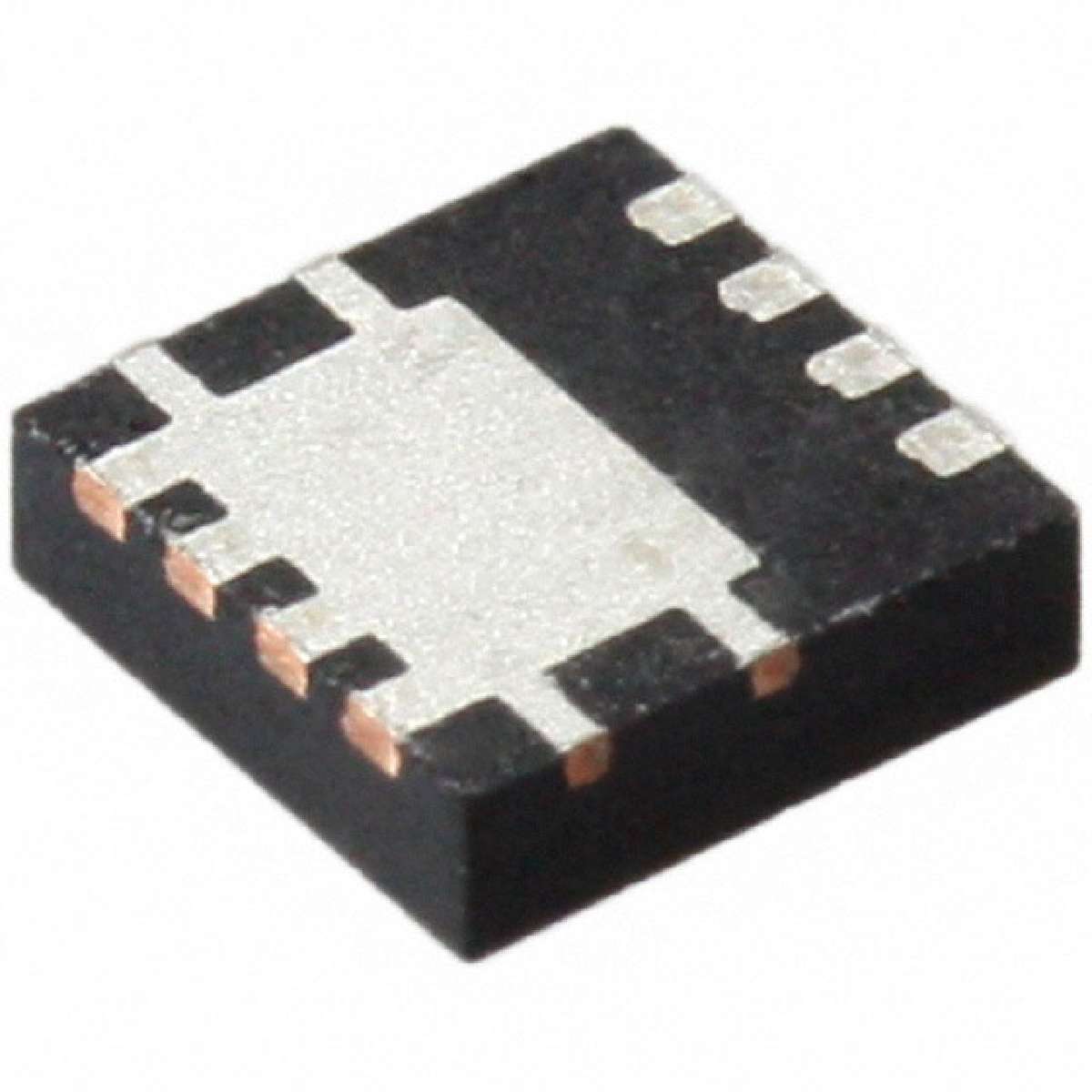

ACTIVE 8-PQFN (3.3x3.3), Power33 EAR99
Product description : MOSFET N-CH 25V 40A 8-MLP
SPQ：3000
Datasheet : FDMC8588.pdf

Power - Max	2.4W
Rds On (Max) @ Id, Vgs	5 mOhm @ 17A, 10V
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	16.5A (Ta), 40A (Tc)
Part Status	Active
Manufacturer	Fairchild Semiconductor
Series	PowerTrench®
Vgs(th) (Max) @ Id	1.8V @ 250µA
Operating Temperature	-55°C ~ 150°C (TJ)
Packaging	Cut Tape (CT)
Package / Case	8-PowerTDFN
FET Feature	Standard
Supplier Device Package	8-PQFN (3.3x3.3), Power33
Gate Charge (Qg) @ Vgs	12nC @ 4.5V
Category	Discrete Semiconductor Products
FET Type	MOSFET N-Channel, Metal Oxide
Family	Transistors - FETs, MOSFETs - Single
Mounting Type	Surface Mount
Input Capacitance (Ciss) @ Vds	1228pF @ 13V
ECCN	EAR99

Datasheet： FDMC8588.pdf
