| ECA-1AM332 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

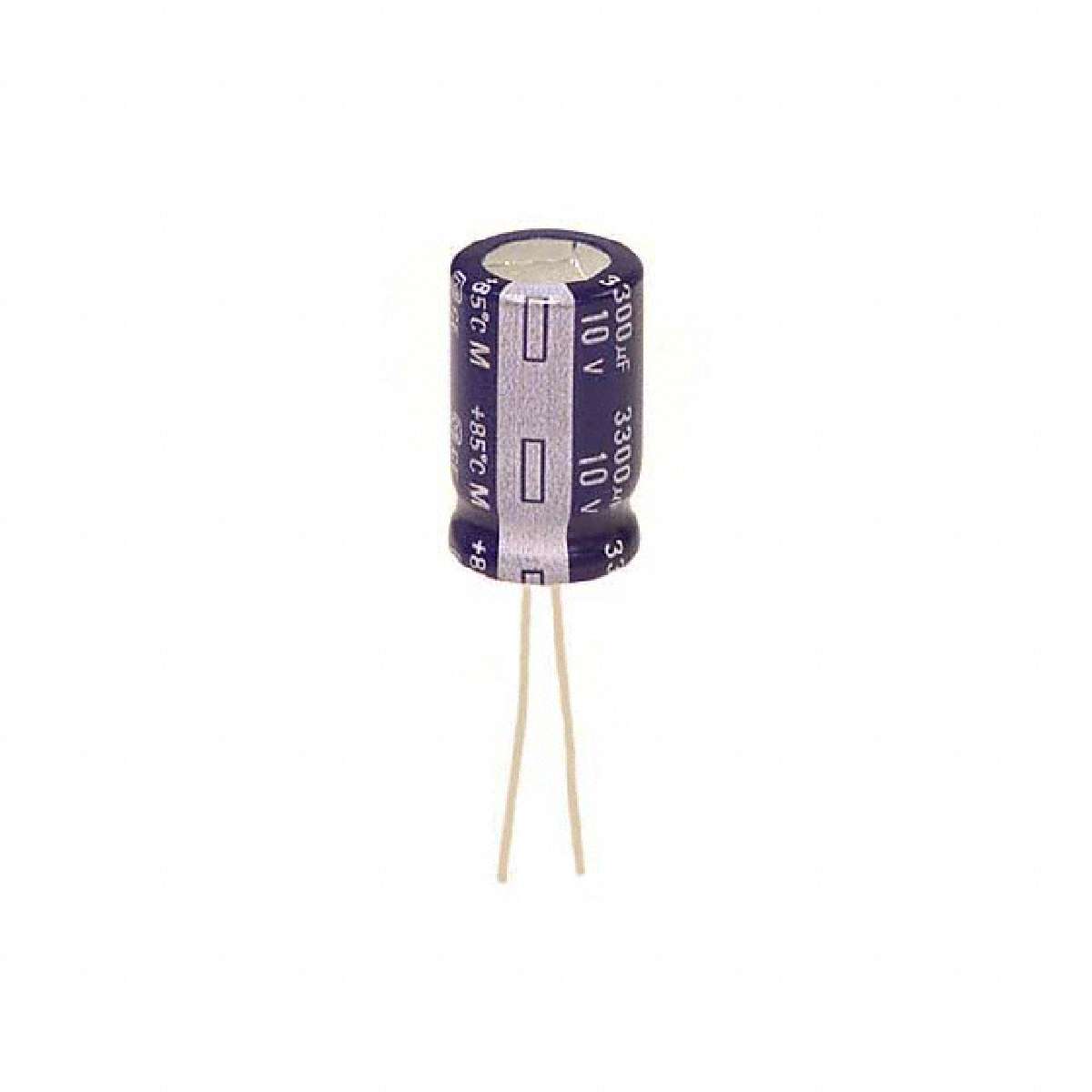

M Series 10 V 3300 uF Ø 12.5 x 20 mm LS=5 mm Aluminum Electrolytic Capacitor
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lead Spacing | 0.197" (5.00mm) |
|---|---|
| Tolerance | ±20% |
| Capacitance | 3300µF |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Ripple Current | 1.09A @ 120Hz |
| Manufacturer | Panasonic Electronic Components |
| Series | M |
| Applications | General Purpose |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Packaging | Bulk |
| Package / Case | Radial, Can |
| Voltage Rating | 10V |
| Polarization | Polar |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Family | Aluminum Capacitors |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| ECCN | EAR99 |
