| FDMC7680 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

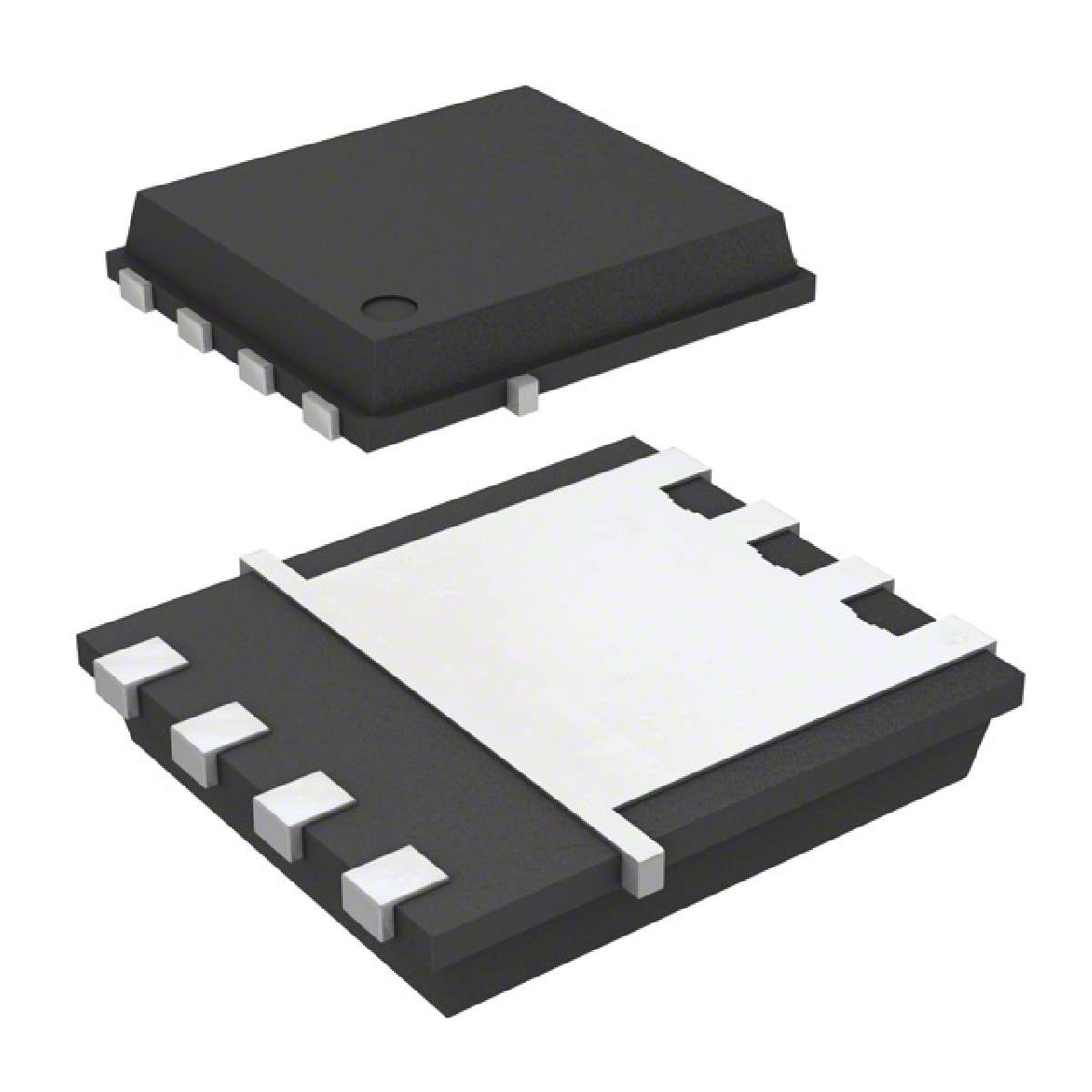

N-Channel 30 V 7.2 mohm 42 nC Surface Mount Power Trench Mosfet - MLP 3.3 x 3.3
|
||
| 标准包装：3000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Minimum Operating Temperature: | - 55 C |
|---|---|
| Packaging: | Reel |
| Pd - Power Dissipation: | 2.3 W |
| Package / Case: | MLP-8 |
| Configuration: | Single |
| Unit Weight: | 0.007408 oz |
| Number of Channels: | 1 Channel |
| Typical Turn-On Delay Time: | 12 ns |
| Forward Transconductance - Min: | 68 S |
| Transistor Polarity: | N-Channel |
| Channel Mode: | Enhancement |
| Typical Turn-Off Delay Time: | 25 ns |
| Product Category: | MOSFET |
| Vds - Drain-Source Breakdown Voltage: | 30 V |
| Type: | Power Trench MOSFET |
| Maximum Operating Temperature: | + 150 C |
| Rds On - Drain-Source Resistance: | 7.4 mOhms |
| Width: | 3 mm |
| Technology: | Si |
| Height: | 0.75 mm |
| Vgs - Gate-Source Voltage: | 20 V |
| Mounting Style: | SMD/SMT |
| Fall Time: | 3 ns |
| Length: | 3 mm |
| Manufacturer: | Fairchild Semiconductor |
| Factory Pack Quantity: | 3000 |
| Brand: | Fairchild Semiconductor |
| RoHS: | Details |
| Id - Continuous Drain Current: | 14.8 A |
| Rise Time: | 4 ns |
| Transistor Type: | 1 N-Channel |
| ECCN | EAR99 |
