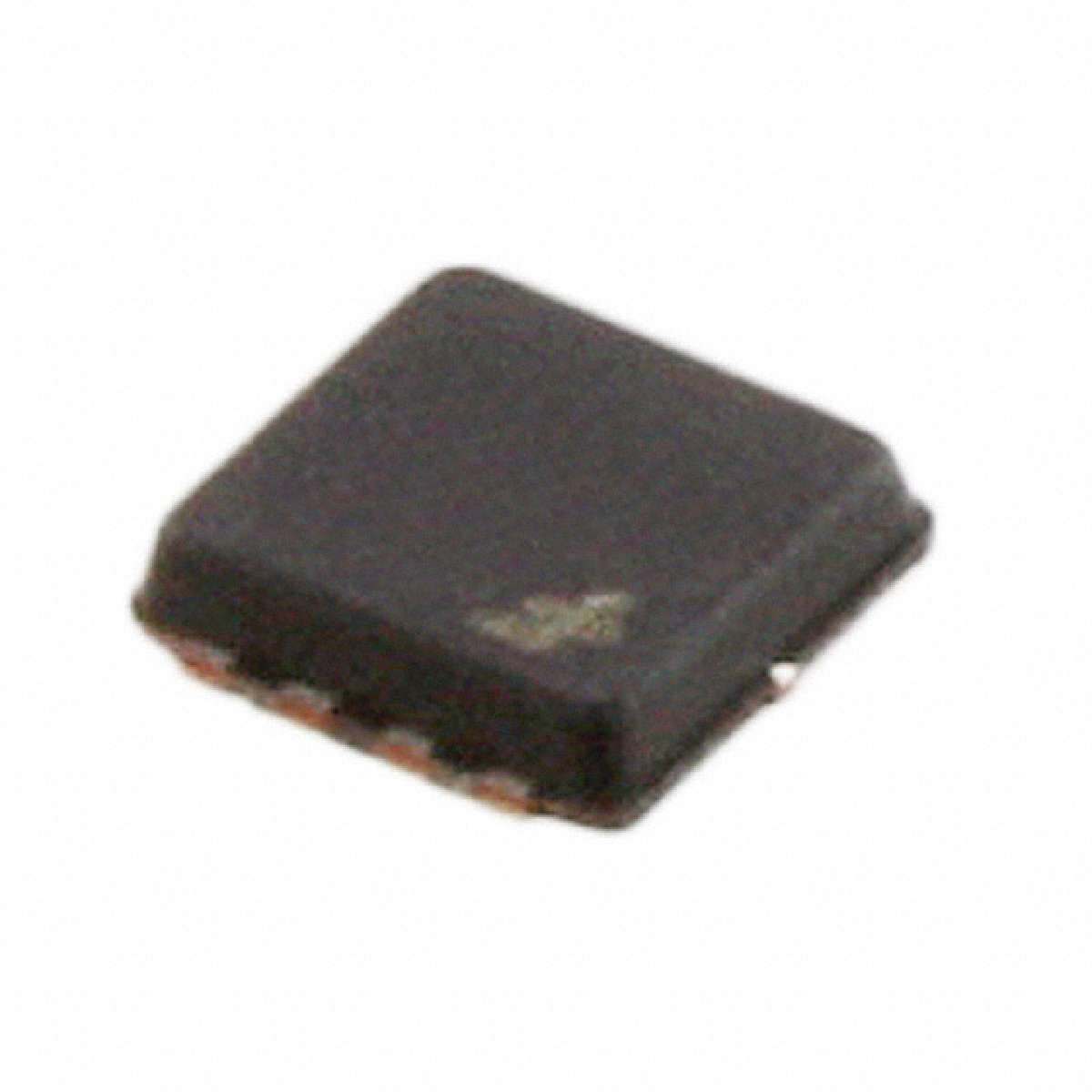

FDMC7678

ACTIVE 8-MLP (3.3x3.3), Power33 EAR99
Product description : N-Channel 30 V 19.5 A 5.3 mΩ Surface Mount PowerTrench Mosfet - MLP 3.3x3.3
SPQ：1
Datasheet : FDMC7678.pdf

Power - Max	2.3W
Rds On (Max) @ Id, Vgs	5.3 mOhm @ 17.5A, 10V
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	17.5A (Ta), 19.5A (Tc)
Part Status	Active
Manufacturer	Fairchild Semiconductor
Series	PowerTrench®
Vgs(th) (Max) @ Id	3V @ 250µA
Operating Temperature	-55°C ~ 150°C (TJ)
Packaging	Cut Tape (CT)
Package / Case	8-PowerWDFN
FET Feature	Standard
Supplier Device Package	8-MLP (3.3x3.3), Power33
Gate Charge (Qg) @ Vgs	39nC @ 10V
Category	Discrete Semiconductor Products
FET Type	MOSFET N-Channel, Metal Oxide
Family	Transistors - FETs, MOSFETs - Single
Mounting Type	Surface Mount
Input Capacitance (Ciss) @ Vds	2410pF @ 15V
ECCN	EAR99

Datasheet： FDMC7678.pdf
